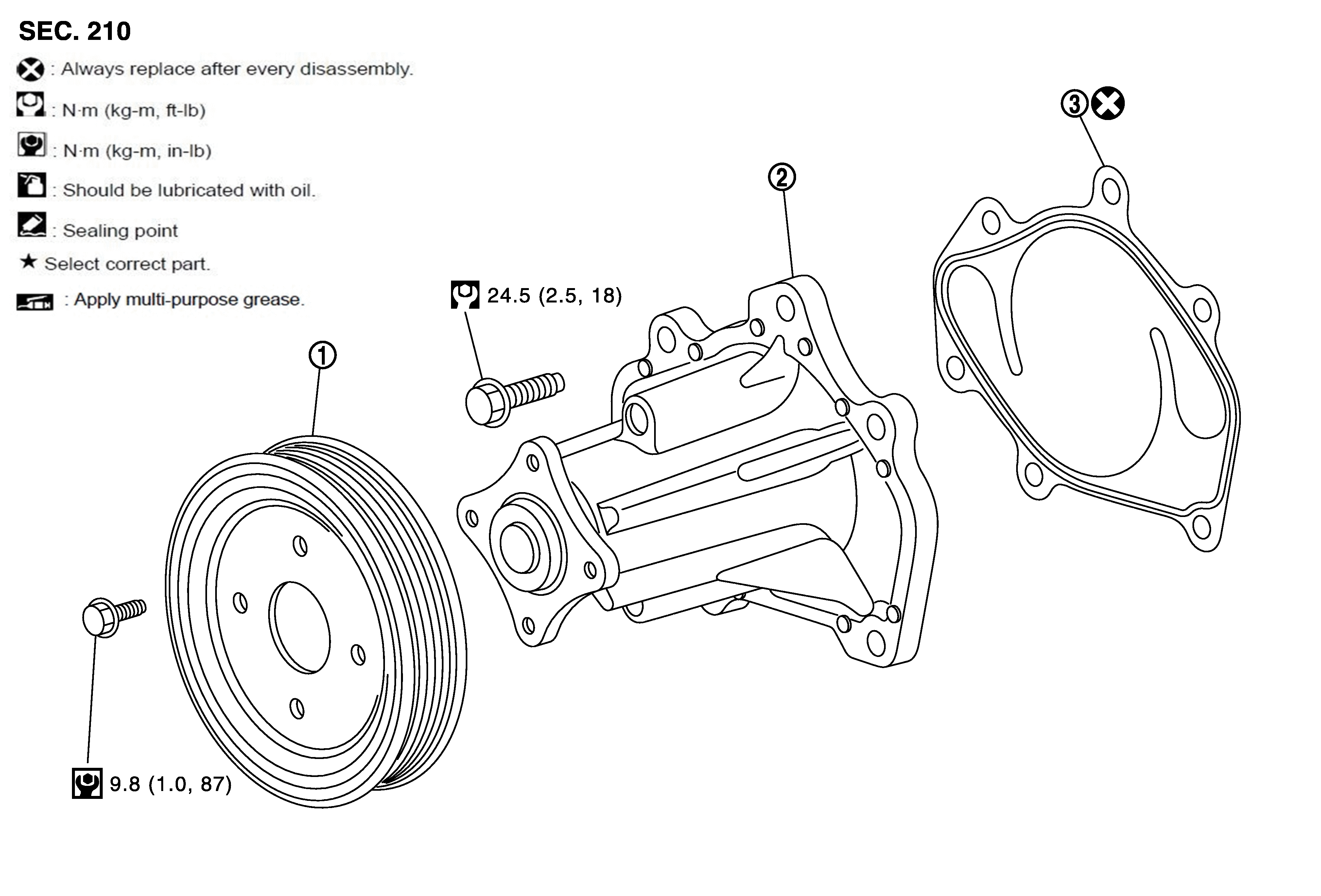

Exploded View With Torque Specifications

Courtesy of

1.	Water pump pulley	2.	Water pump	3.	Gasket
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
	: Always replace after every disassembly.
