Exploded View With Torque Specifications

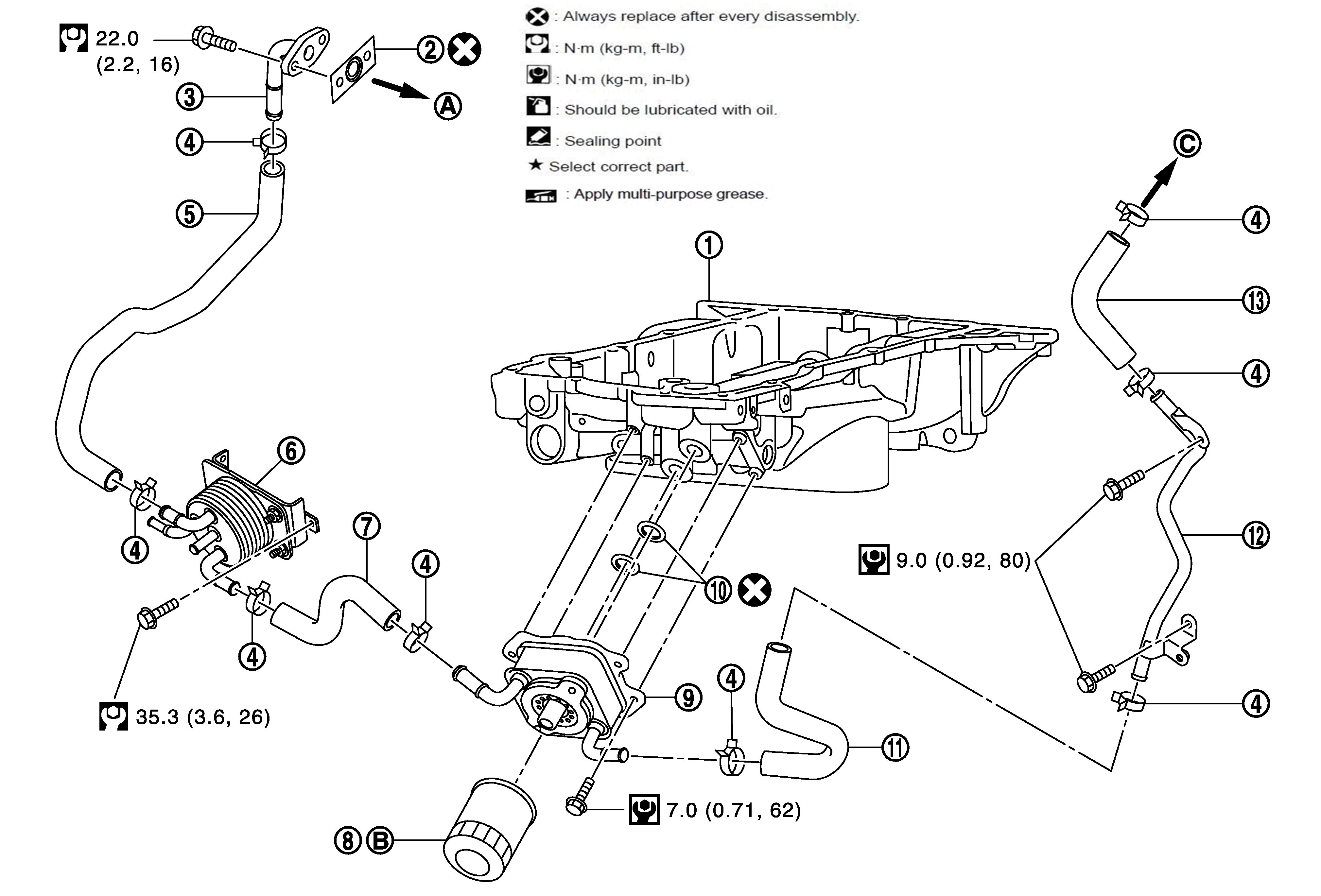

Fig 1: Oil Cooler Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pan (upper)	2.	Gasket	3.	Connector pipe
4.	Clamp	5.	Water hose	6.	A/T fluid warmer
7.	Water hose	8.	Oil filter	9.	Oil cooler
10.	O-ring	11.	Water hose	12.	Water pipe
13.	Water hose
A.	To cylinder block	B.	Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION	C.	To thermostat housing
	: N•m (kg - m, in - lb)
	: N•m (kg - m, ft - lb)
	: Always replace after every disassembly.
