Exploded View With Torque Specifications: Removal

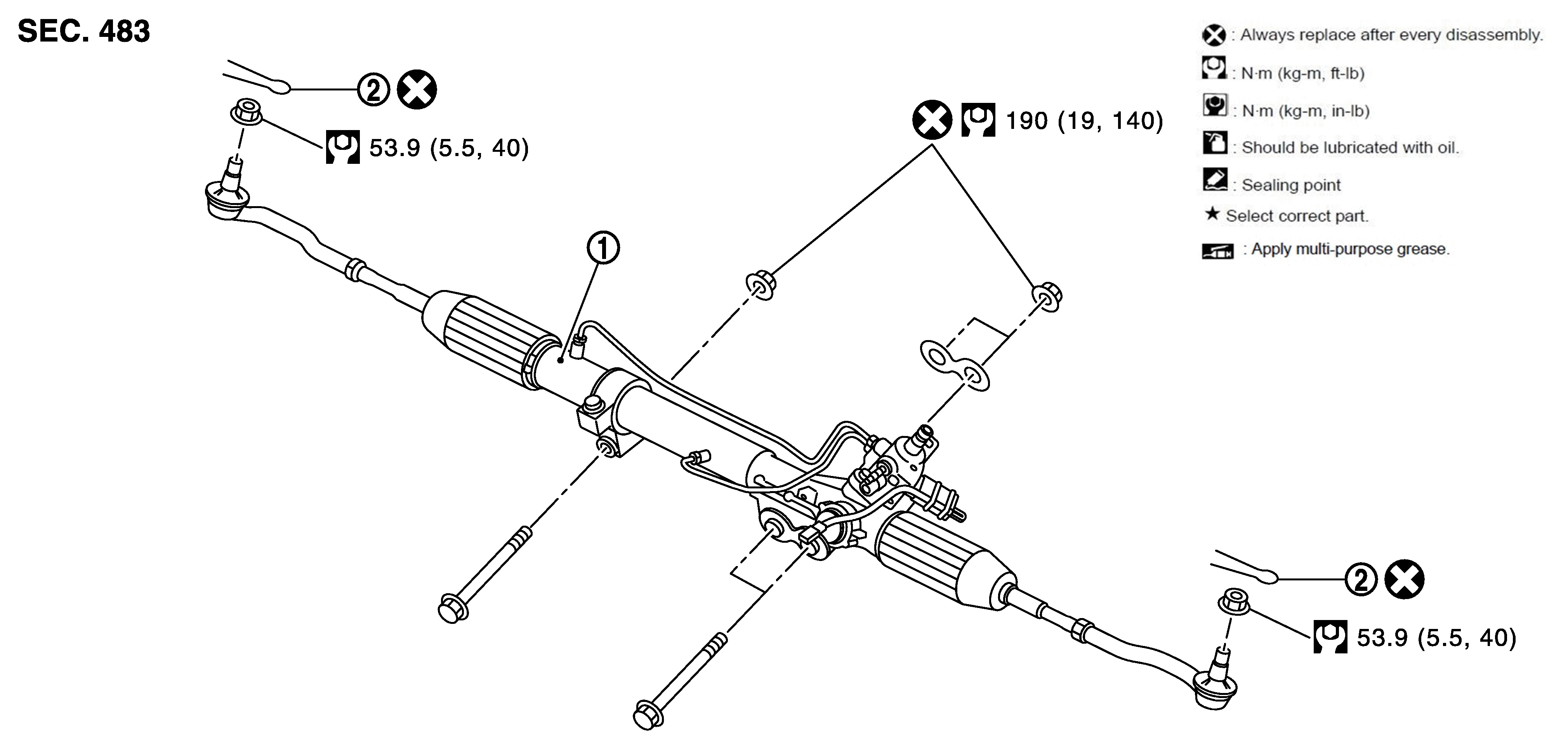

Fig 1: Steering Gear And Linkage Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering gear assembly	2.	Cotter pin
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
