Exploded View With Torque Specifications

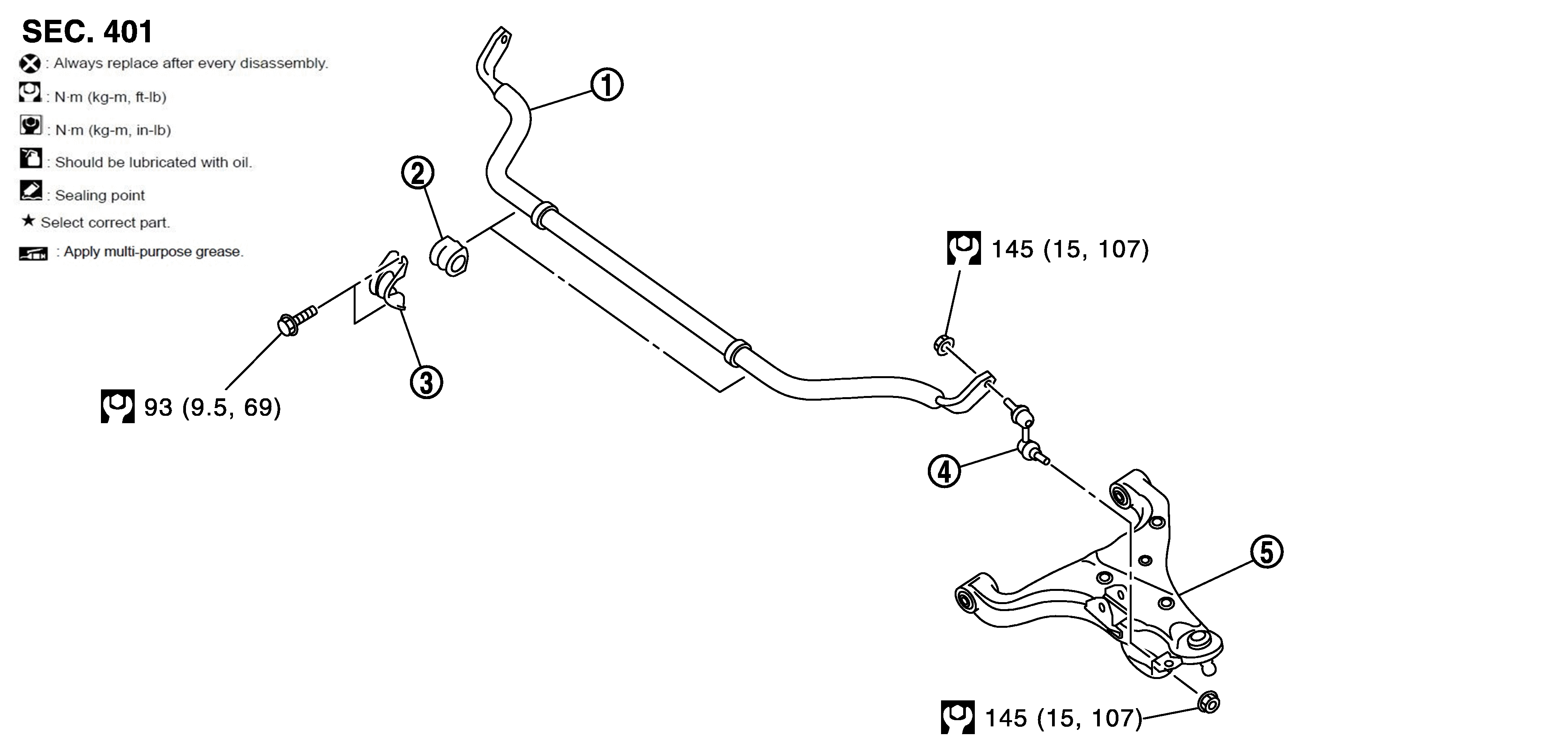

Fig 1: Front Stabilizer Components With Torque Specification
GNSJPEIA0254GB-254Courtesy of NISSAN NORTH AMERICA, INC.
1. Stabilizer bar 2. Stabilizer bushing 3. Stabilizer clamp
4. Stabilizer connecting rod 5. Lower link
BOLT : N•m (kg - m, ft - lb)
