Exploded View With Torque Specifications

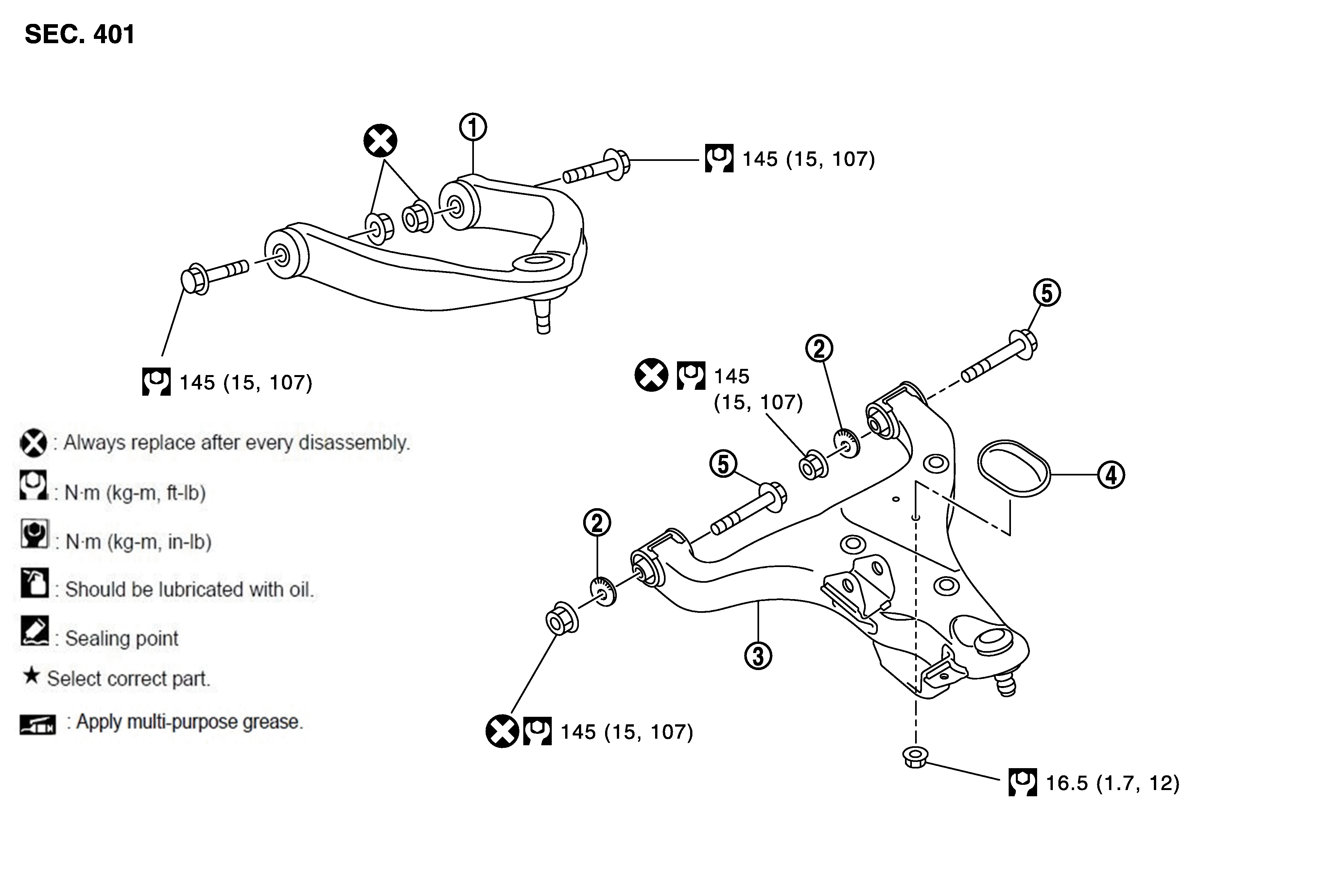

Fig 1: Lower Link Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper link	2.	Eccentric disc	3.	Lower link
4.	Bump rubber	5.	Adjusting bolt
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
