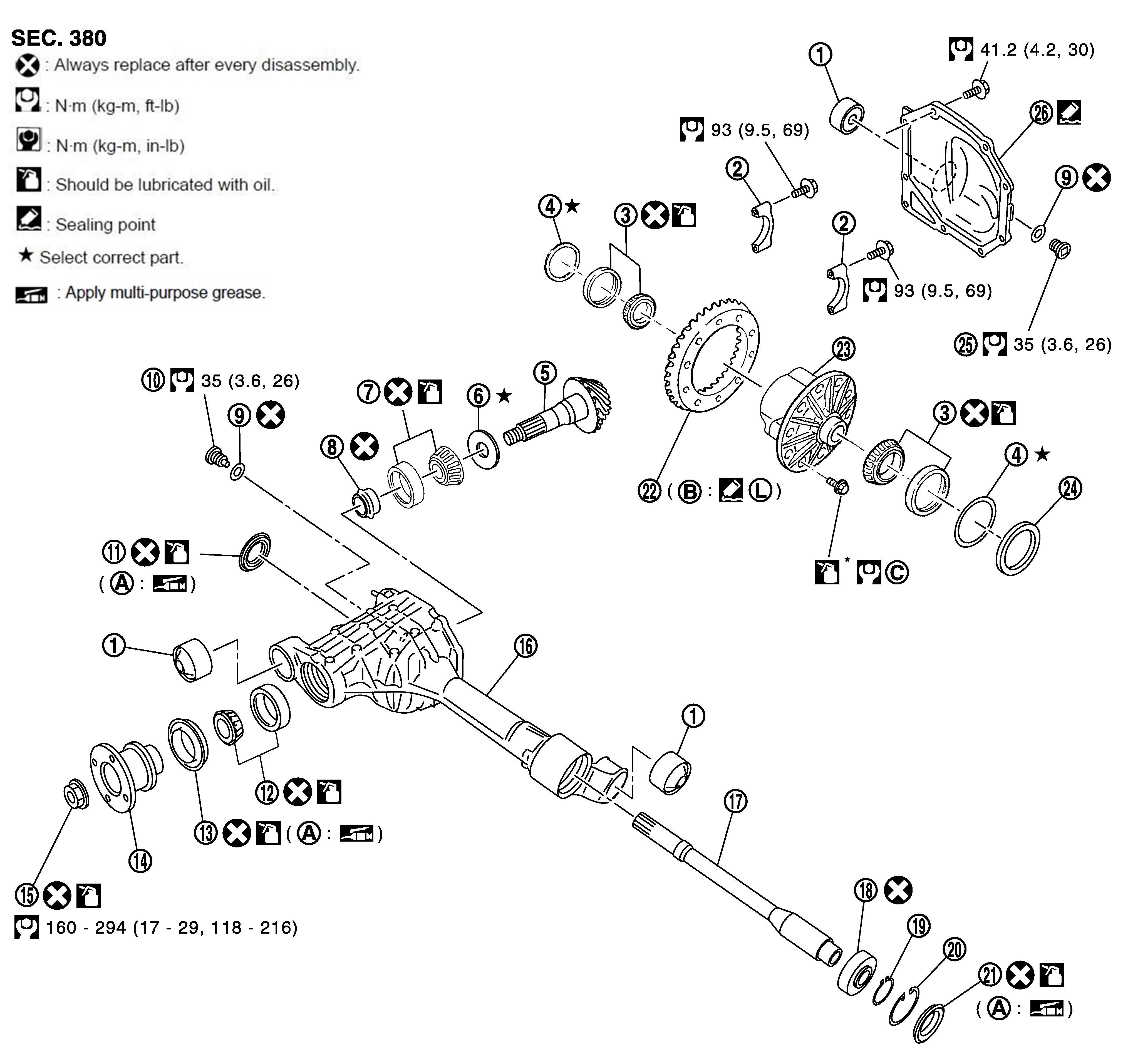

Exploded View With Torque Specifications

GNSJPDID0390GB-390Courtesy of NISSAN NORTH AMERICA, INC.
1. Bushing 2. Bearing cap 3. Side bearing
4. Side bearing adjusting washer 5. Drive pinion 6. Pinion height adjusting washer
7. Pinion rear bearing 8. Collapsible spacer 9. Gasket
10. Drain plug 11. Side oil seal (left side) 12. Pinion front bearing
13. Front oil seal 14. Companion flange 15. Drive pinion lock nut
16. Gear carrier 17. Side shaft 18. Side shaft bearing
19. Snap ring 20. Snap ring 21. Side oil seal (right side)
22. Drive gear 23. Differential case assembly 24. Housing spacer
25. Filler plug 26. Carrier cover
A: Oil seal lip B: Screw hole C. Comply with the assembly procedure when tightening. Refer to ASSEMBLY .
BOLT : N•m (kg-m, ft-lb)
DISAS : Always replace after every disassembly.
STARF : Select with proper thickness.
OIL : Apply gear oil.
OILASTERISK : Apply anti-corrosion oil.
GREASE : Apply multi-purpose grease.
SEAL : Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
SEALMARU-L-W : Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
