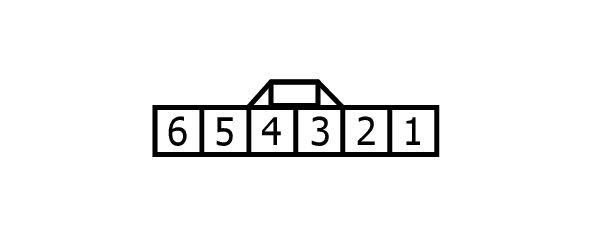

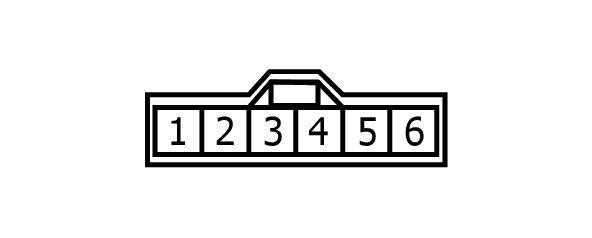

Fuel Pump Control Module Connector End View (B1)
Connector Types:
TB06FB
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G/Y |
FUEL_PUMP+ |
| 2 |
G/R |
FUEL_PUMP- |
| 3 |
B |
GROUND |
| 4 |
R/W |
DIAG_OUTPUT_SIGNAL |
| 5 |
GR |
FPC_INPUT_SIGNAL |
| 6 |
LG |
BATTERY |
