IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E10)

Connector Types:  M06FW-LC

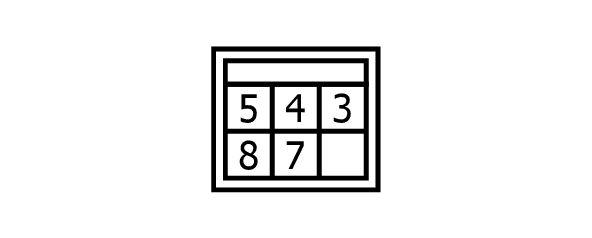

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

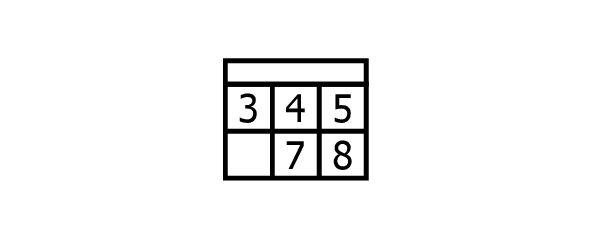

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
3	R	-
4	L	-
5	P/L	-
7	W/G	-
8	W	-
