IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E12)

Connector Types:  NS08FBR-CS

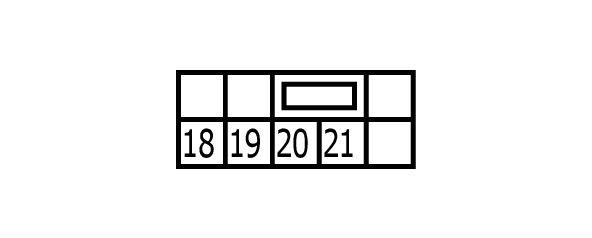

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

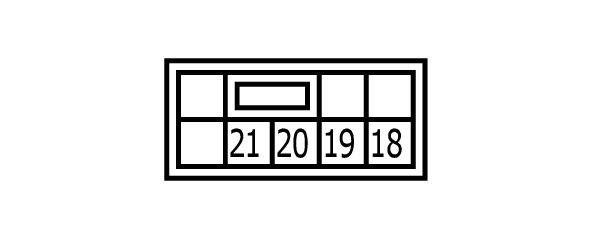

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
18	B	-
19	V	-
20	W	-
21	L	-
