IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E13)

Connector Types:  TH12FW-NH

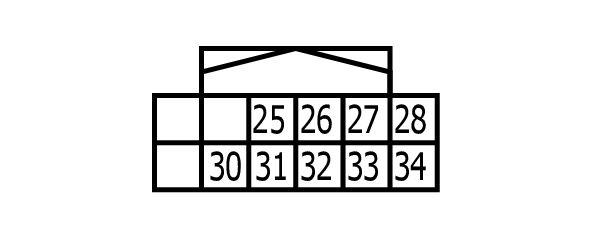

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

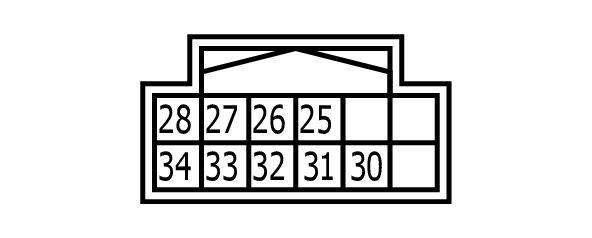

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
25	L/Y	-
26	P	-
27	L	-
28	V	-
30	R/W	-
31	Y	-
32	LG	-
33	R	-
34	G	-
