IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E15)

Connector Types:  NS16FW-CS

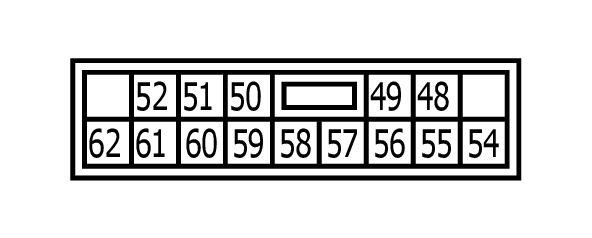

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

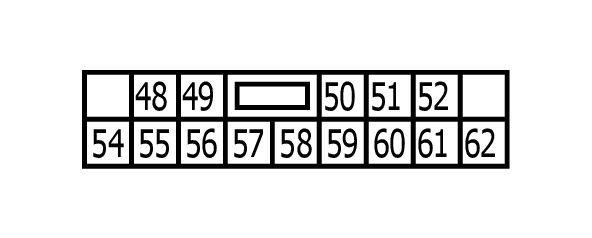

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
48	BR	-
49	R	-
50	LG/B	-
51	BR/Y	-
52	W	-
54	LG	-
55	O	-
56	L	-
57	V	-
58	BR/R	-
59	W/B	-
60	V/R	-
61	W	-
62	SB	-
