Exploded View With Torque Specifications

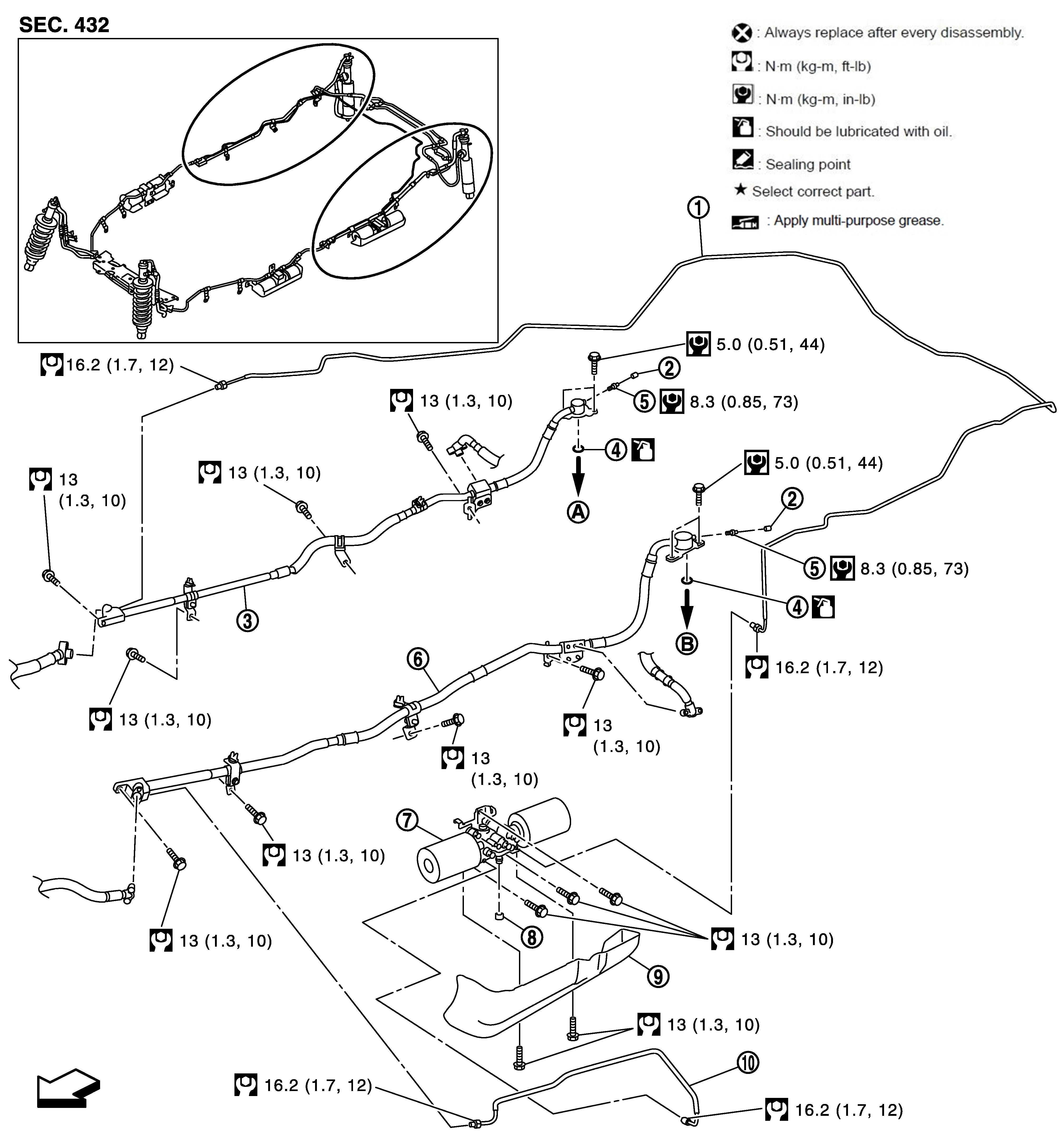

Fig 1: PPMU And Middle Tube Assembly Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	PPMU pipe B	2.	Cap	3.	Middle tube assembly RH
4.	O-ring	5.	Bleeder valve	6.	Middle tube assembly LH
7.	PPMU	8.	Cap	9.	Protector
10.	PPMU pipe A
A.	To rear shock absorber RH	B.	To rear shock absorber LH
:	Vehicle front
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
:	Apply genuine NISSAN hydraulic suspension fluid
