Exploded View With Torque Specifications

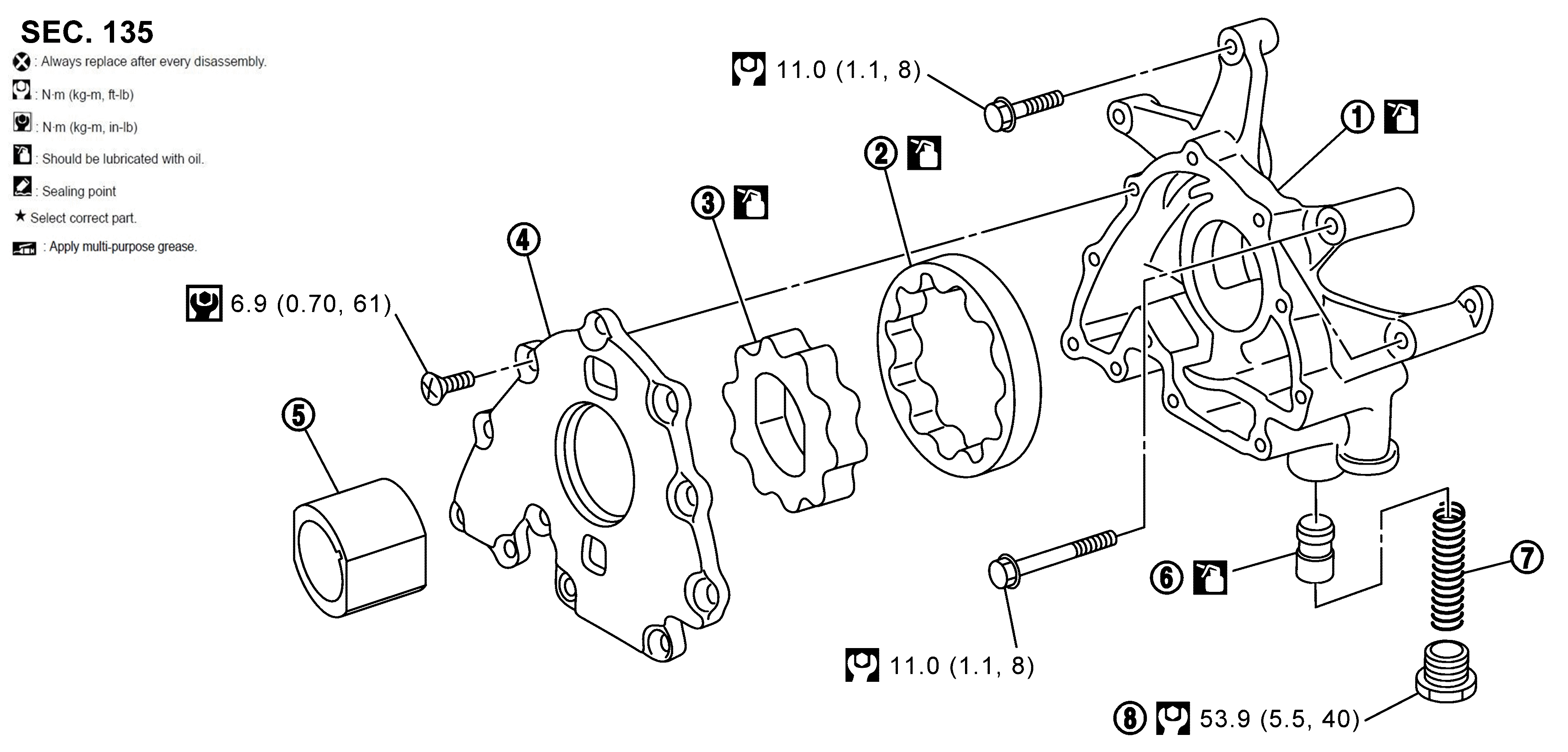

Fig 1: Oil Pump Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump body	2.	Outer rotor	3.	Inner rotor
4.	Oil pump cover	5.	Oil pump drive spacer	6.	Regulator valve
7.	Regulator spring	8.	Regulator plug
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
: Should be lubricated with oil.
