Power Window System: Wiring Diagram

GNSJRKWD8791GB-791

Courtesy of NISSAN NORTH AMERICA, INC.

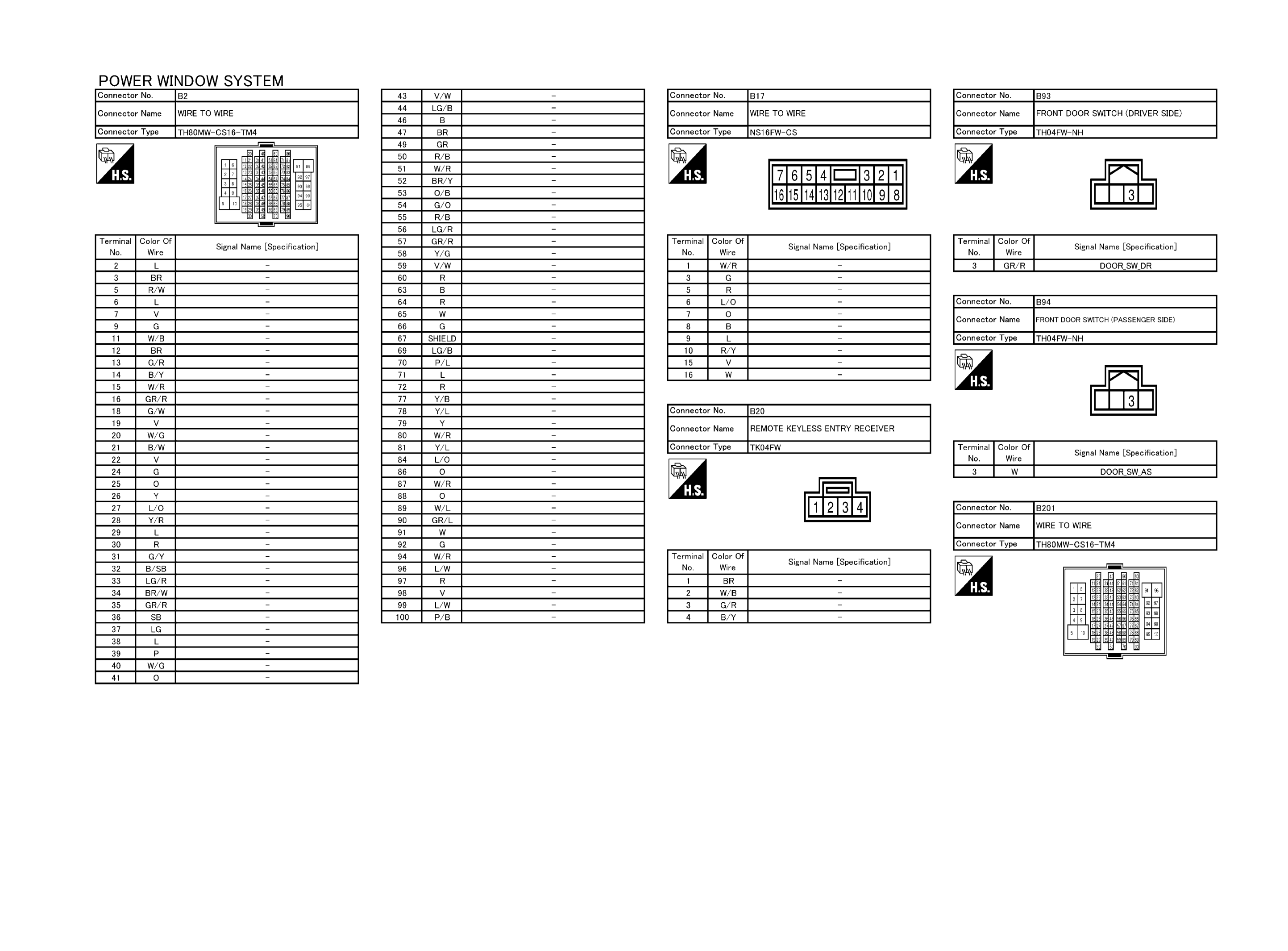

GNSJRKWF4107GB-107

Courtesy of NISSAN NORTH AMERICA, INC.

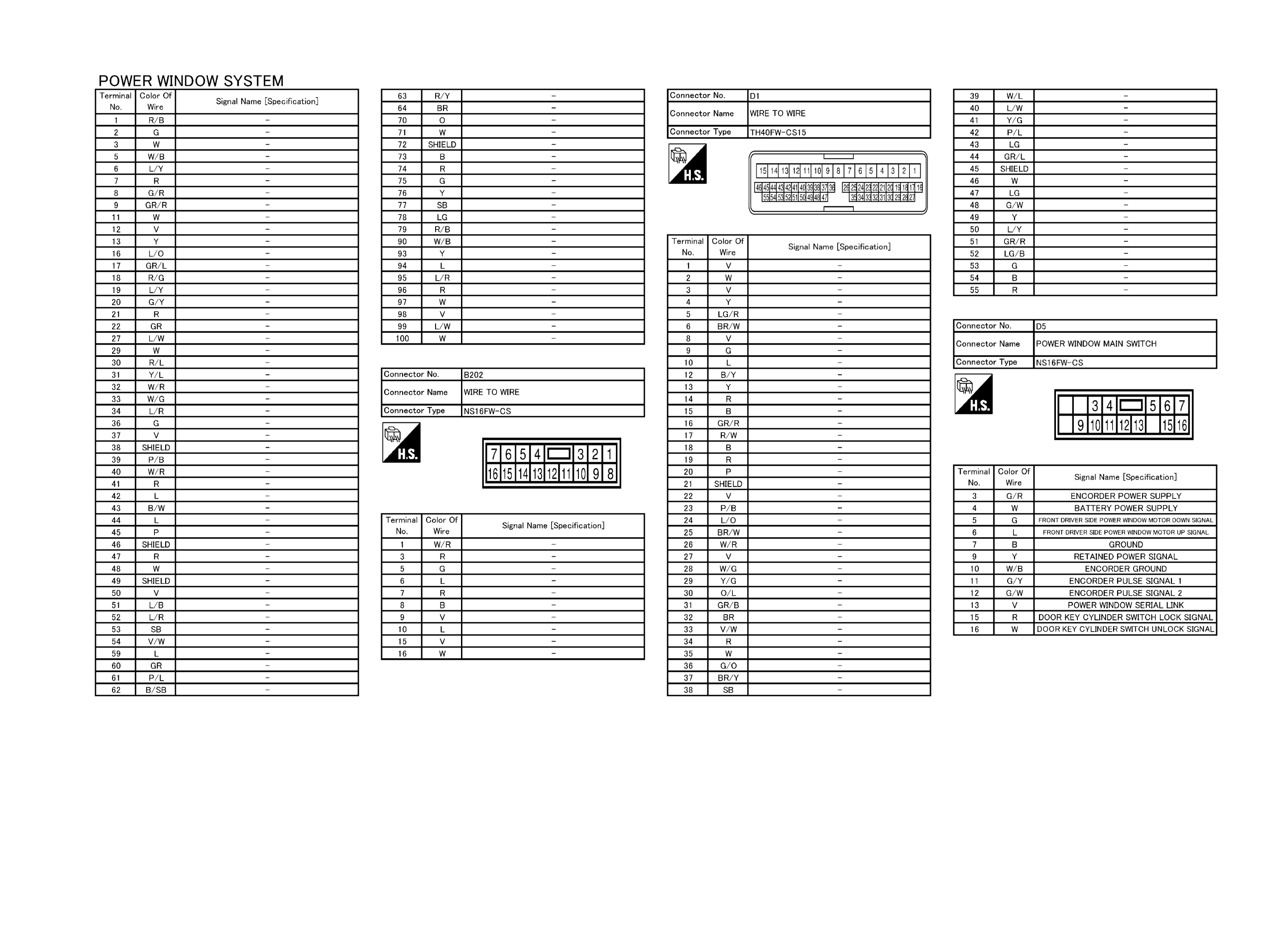

GNSJRKWF4108GB-108

Courtesy of NISSAN NORTH AMERICA, INC.

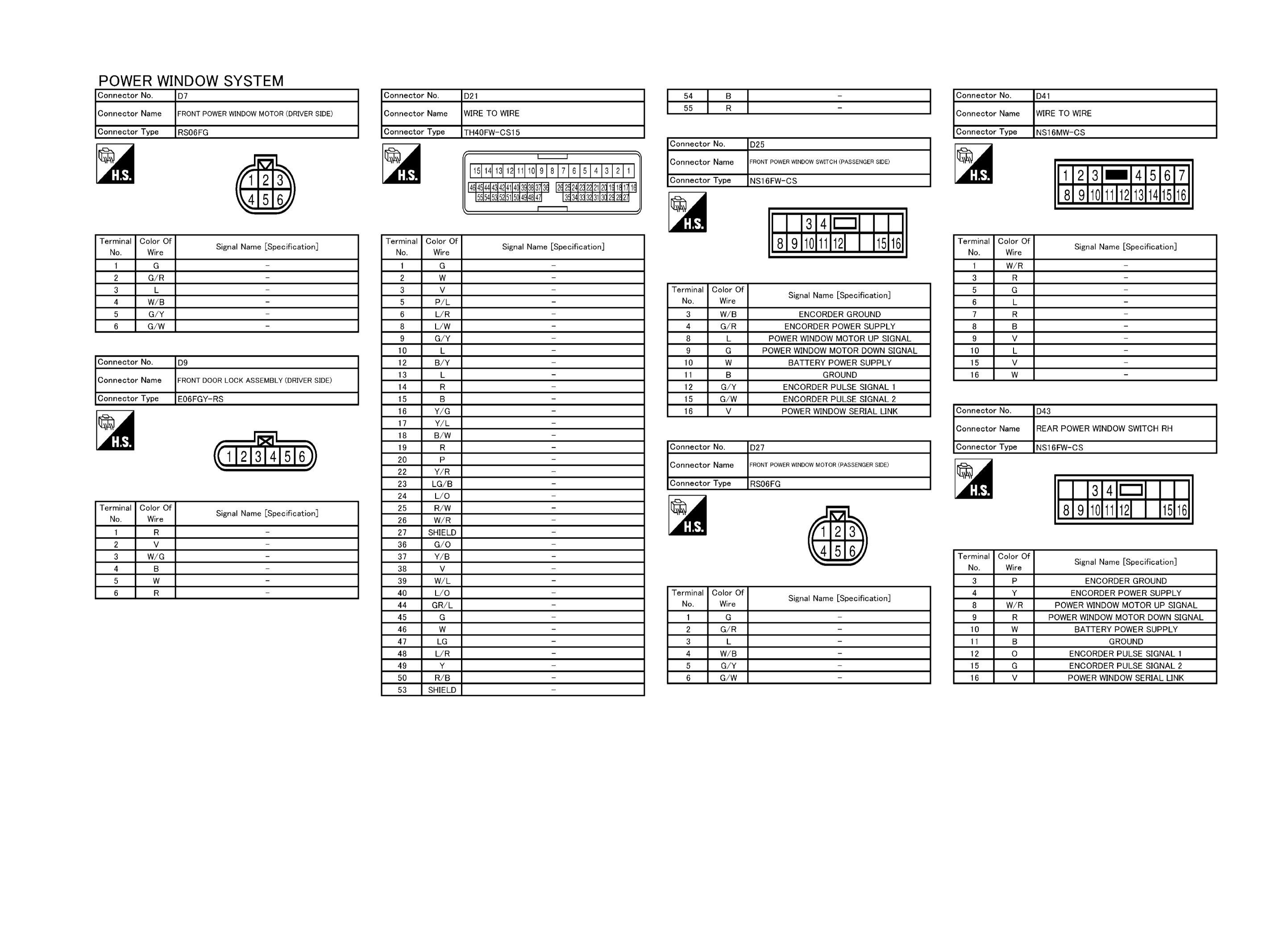

GNSJRKWF4109GB-109

Courtesy of NISSAN NORTH AMERICA, INC.

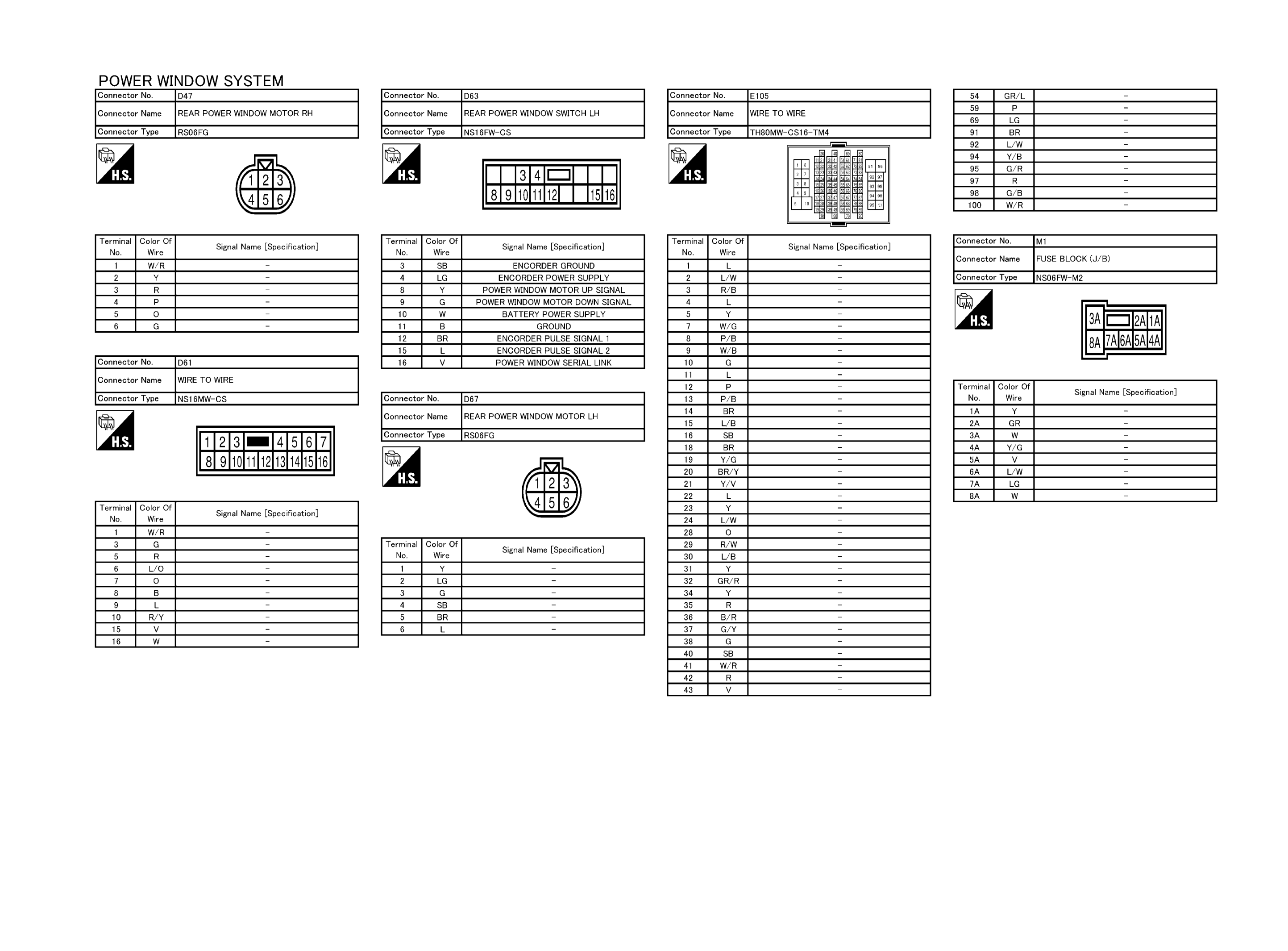

GNSJRKWF4110GB-110

Courtesy of NISSAN NORTH AMERICA, INC.

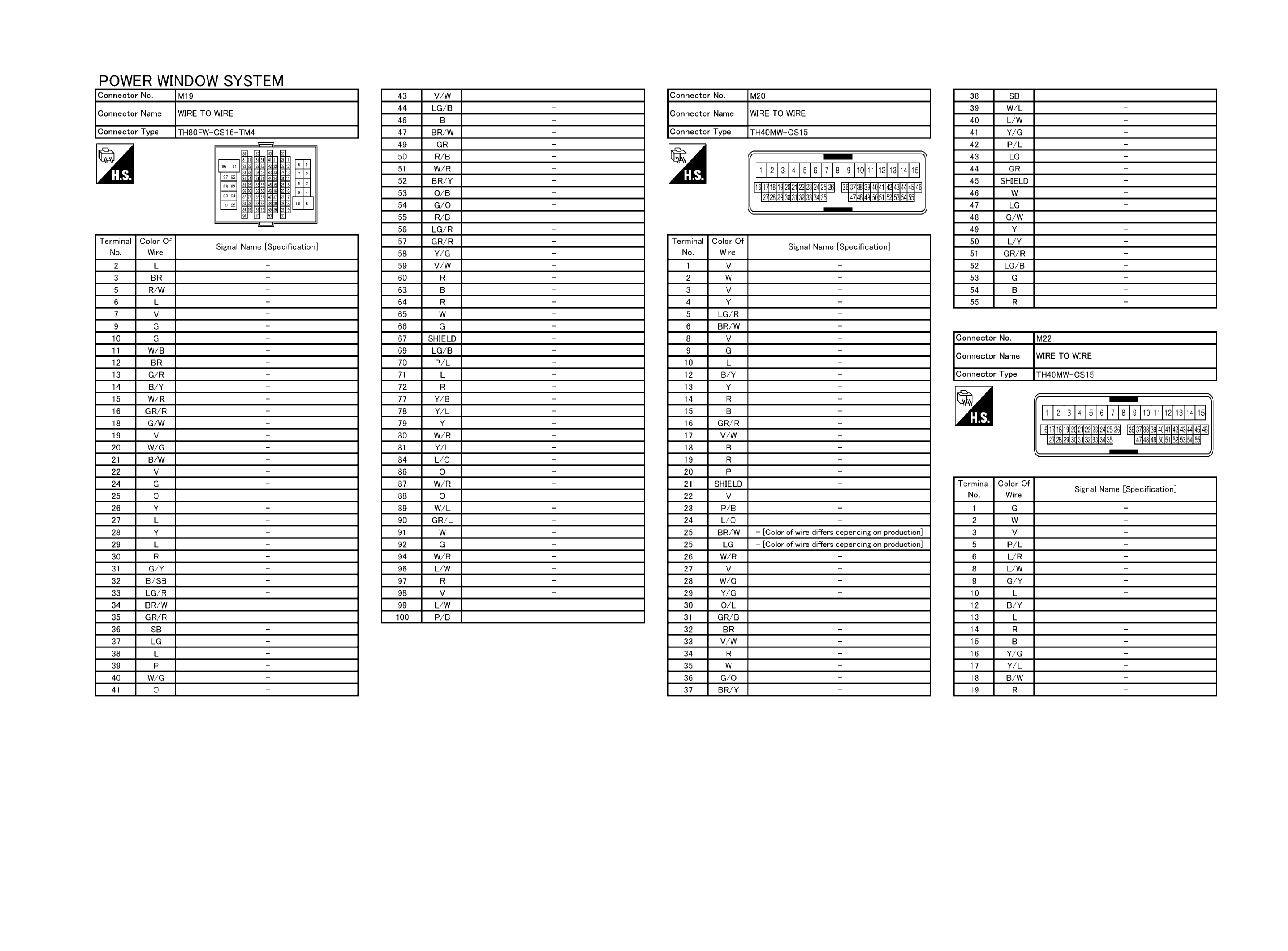

GNSJRKWF4111GB-111

Courtesy of NISSAN NORTH AMERICA, INC.

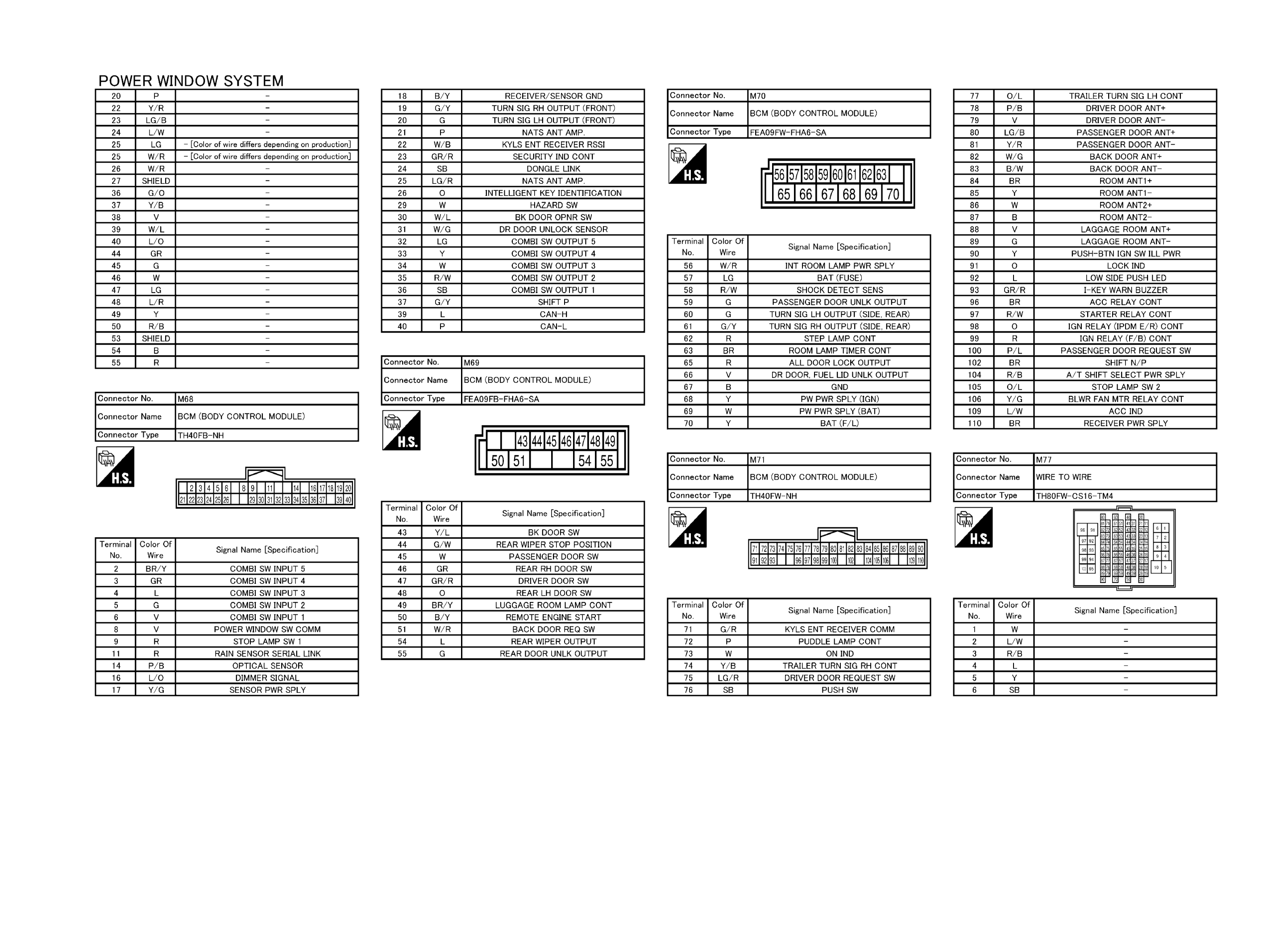

GNSJRKWF4112GB-112

Courtesy of NISSAN NORTH AMERICA, INC.

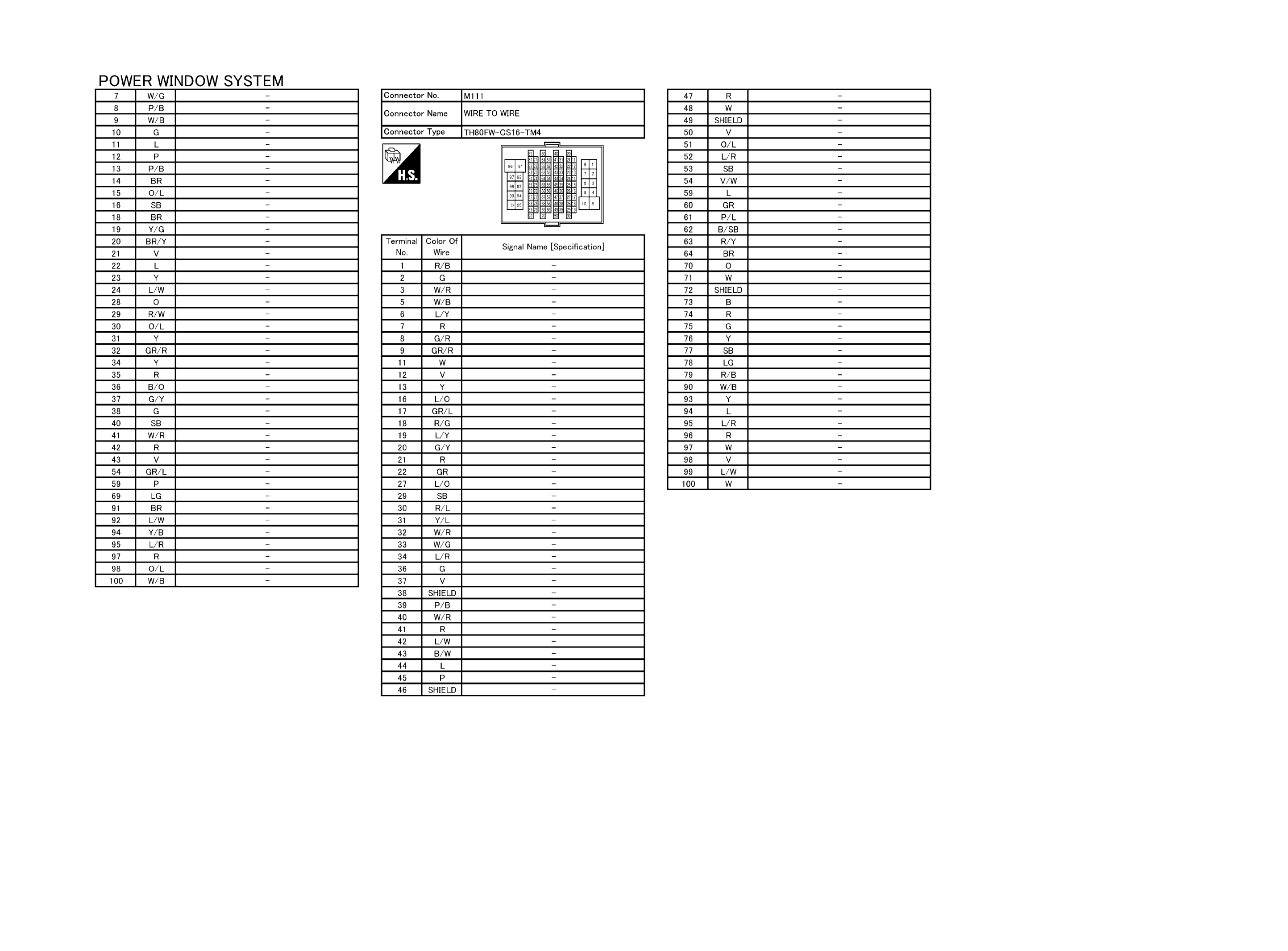

GNSJRKWF4113GB-113

Courtesy of NISSAN NORTH AMERICA, INC.
