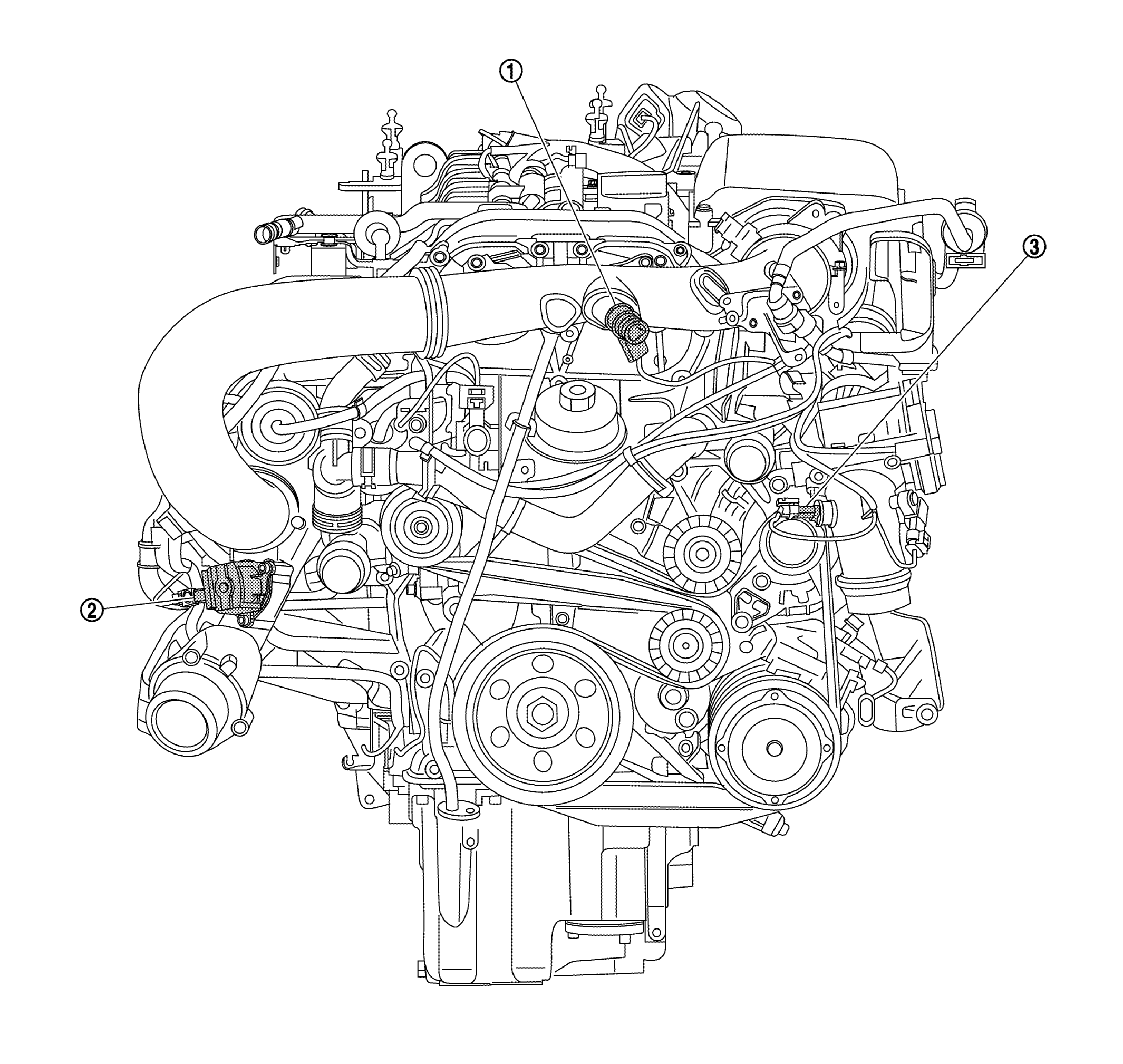

Engine Compartment (Front View)

GNSJSBIA5237ZZ-237Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 Full-load operation vent line heater element FULL-LOAD OPERATION VENT LINE HEATER ELEMENT
WHITE-2 Divert air switchover valve SYSTEM DESCRIPTION
WHITE-3 Charge air temperature sensor upstream of throttle valve Senses a charge air temperature upstream of throttle.
