Interior Compartment

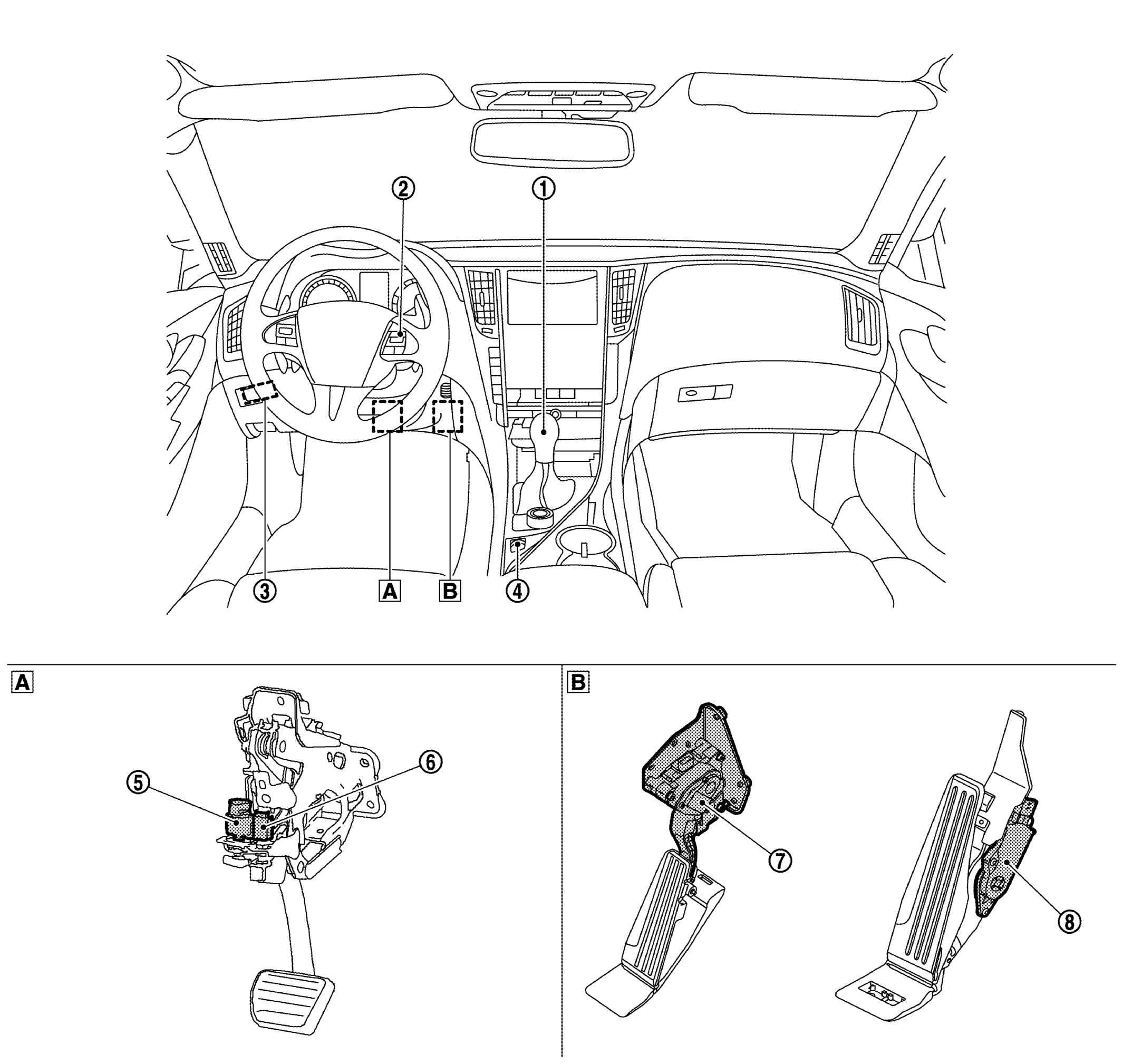

GNSJSBIA5558ZZ-558Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Around the brake pedal WZ-B Around the accelerator pedal
No. Component Function
WHITE-1 Shift selector Select the shift position.
WHITE-2 ASCD steering switch/ICC steering switch COMPONENT LOCATION or COMPONENT LOCATION
WHITE-3 Stop/Start OFF switch STOP/START OFF SWITCH
WHITE-4 Drive mode select switch DRIVE MODE SELECT SWITCH
WHITE-5 Stop lamp switch STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH
WHITE-6 Brake pedal position switch
WHITE-7 Accelerator pedal position sensor (With FEB models) ACCELERATOR PEDAL POSITION SENSOR
WHITE-8 Accelerator pedal position sensor (Without FEB models)
