Component Location

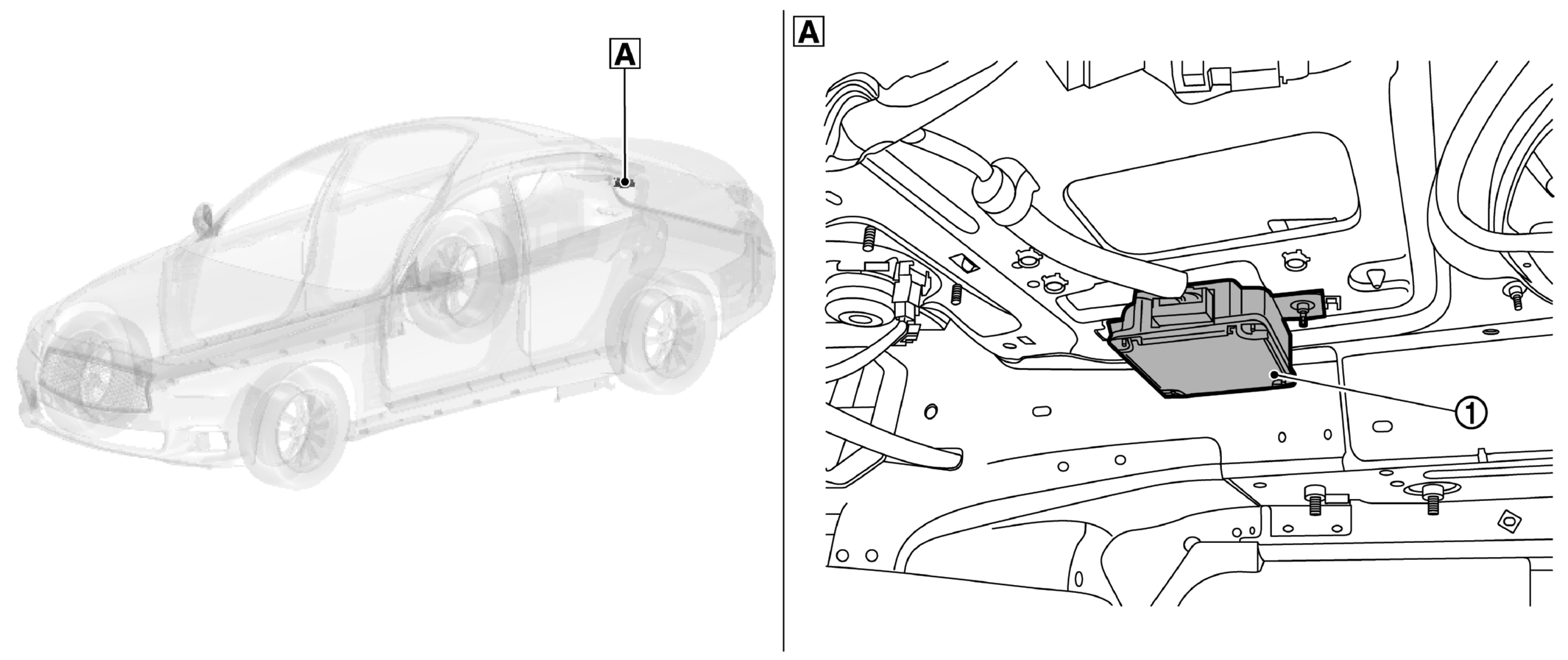

GNSJSOIA0814ZZ-814Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Trunk side of rear parcel shelf
No. Component Description
WHITE-1 ADAS control unit
  • Controls each system, based on CAN communication, ITS communication, and chassis communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication, ITS communication, and Chassis communication
