Engine Lubrication System Schematic
WARNING:
This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

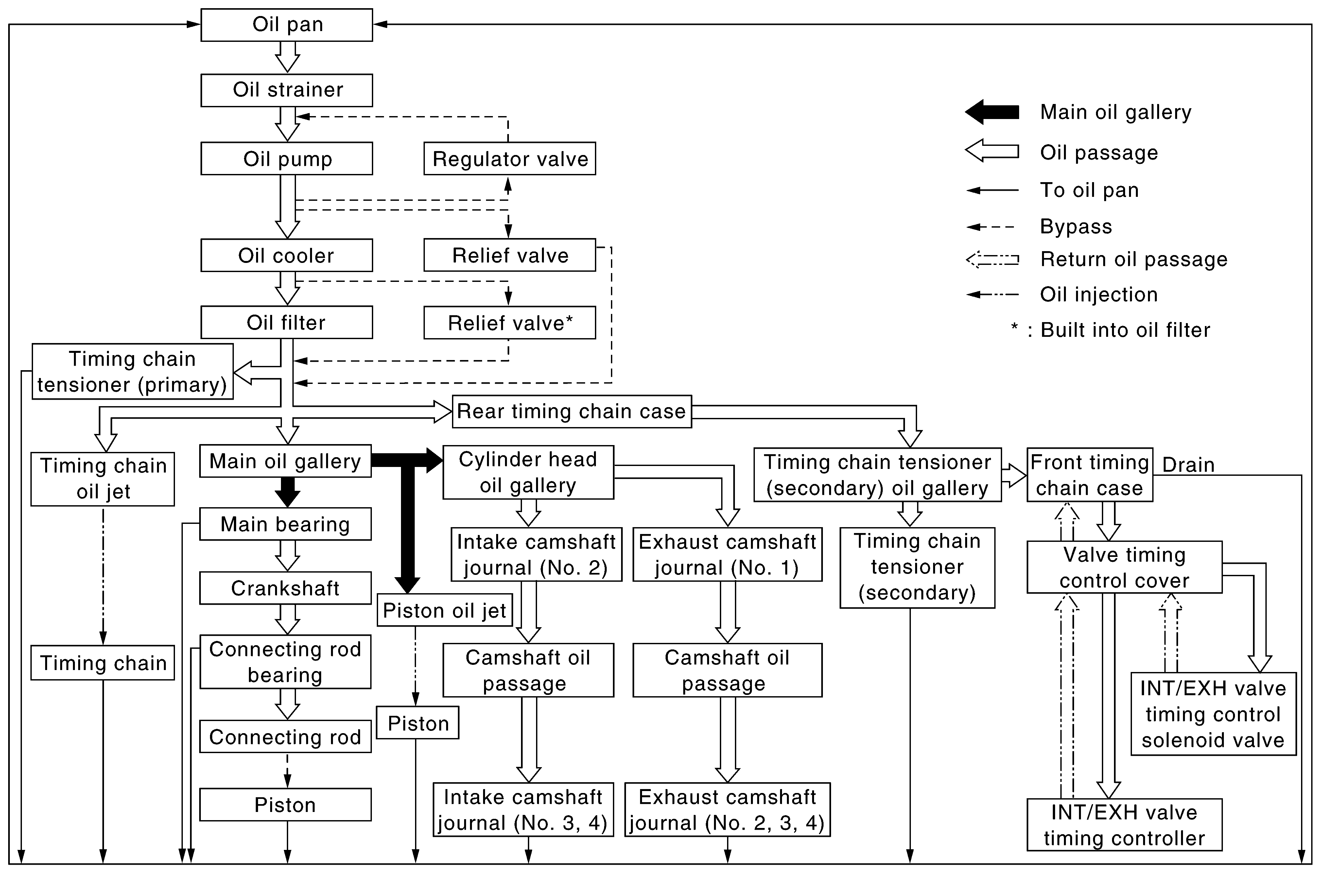

WITH OIL COOLER MODELS
Courtesy of NISSAN NORTH AMERICA, INC.

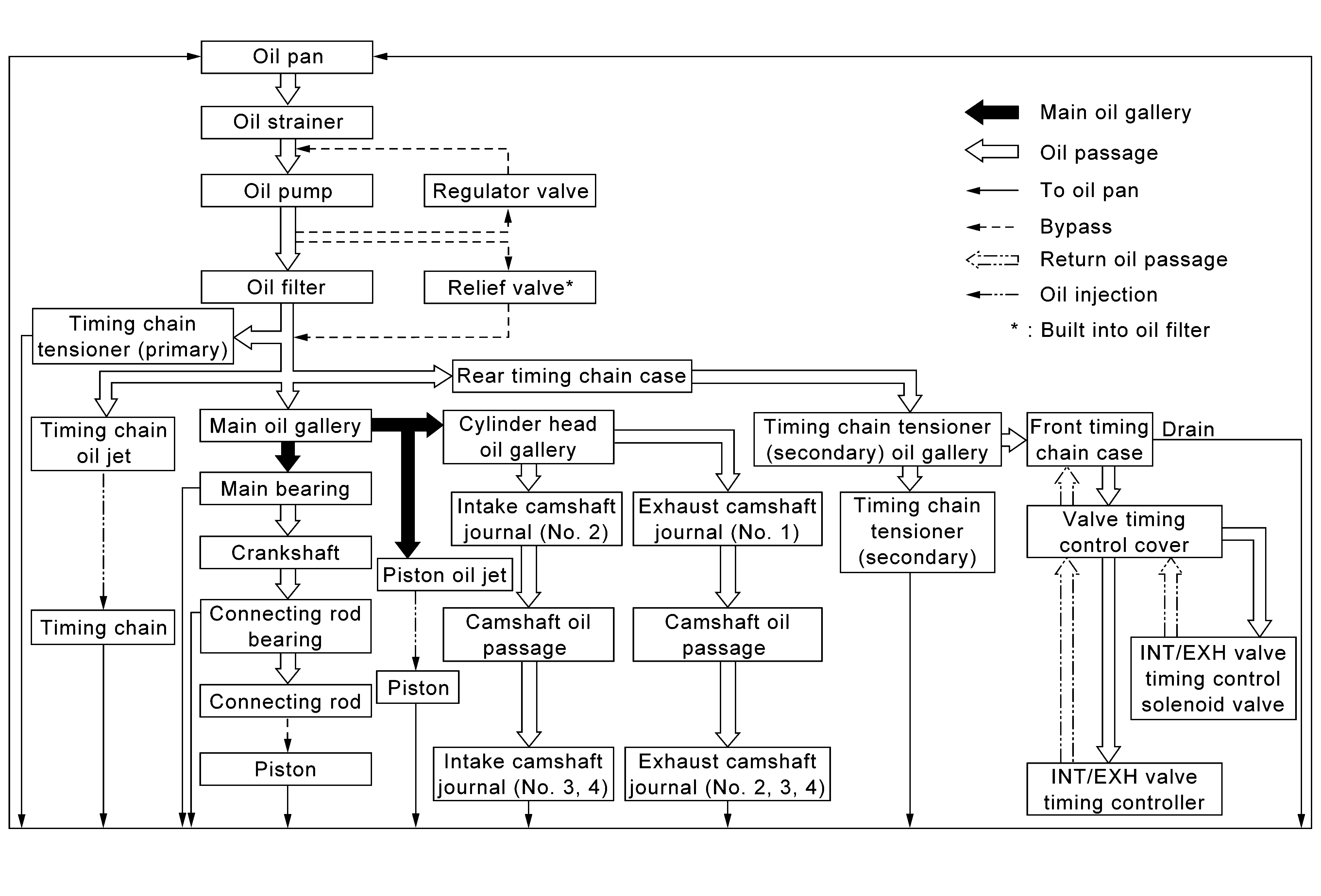

WITHOUT OIL COOLER MODELS
Courtesy of NISSAN NORTH AMERICA, INC.
