Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

Never drop or strike ABS actuator and electric unit (control unit), because it has little endurance to impact. Never use a pneumatic tool.
When installing brake tube, tighten to the specified torque using a crowfoot and torque wrench so that flare nut and brake tube are not damaged. Refer to Exploded View .
Never remove and install actuator by holding actuator harness.
Bleed air from brake piping after installation. Refer to Bleeding Brake System .
Never apply excessive impact to actuator, such as by dropping it.

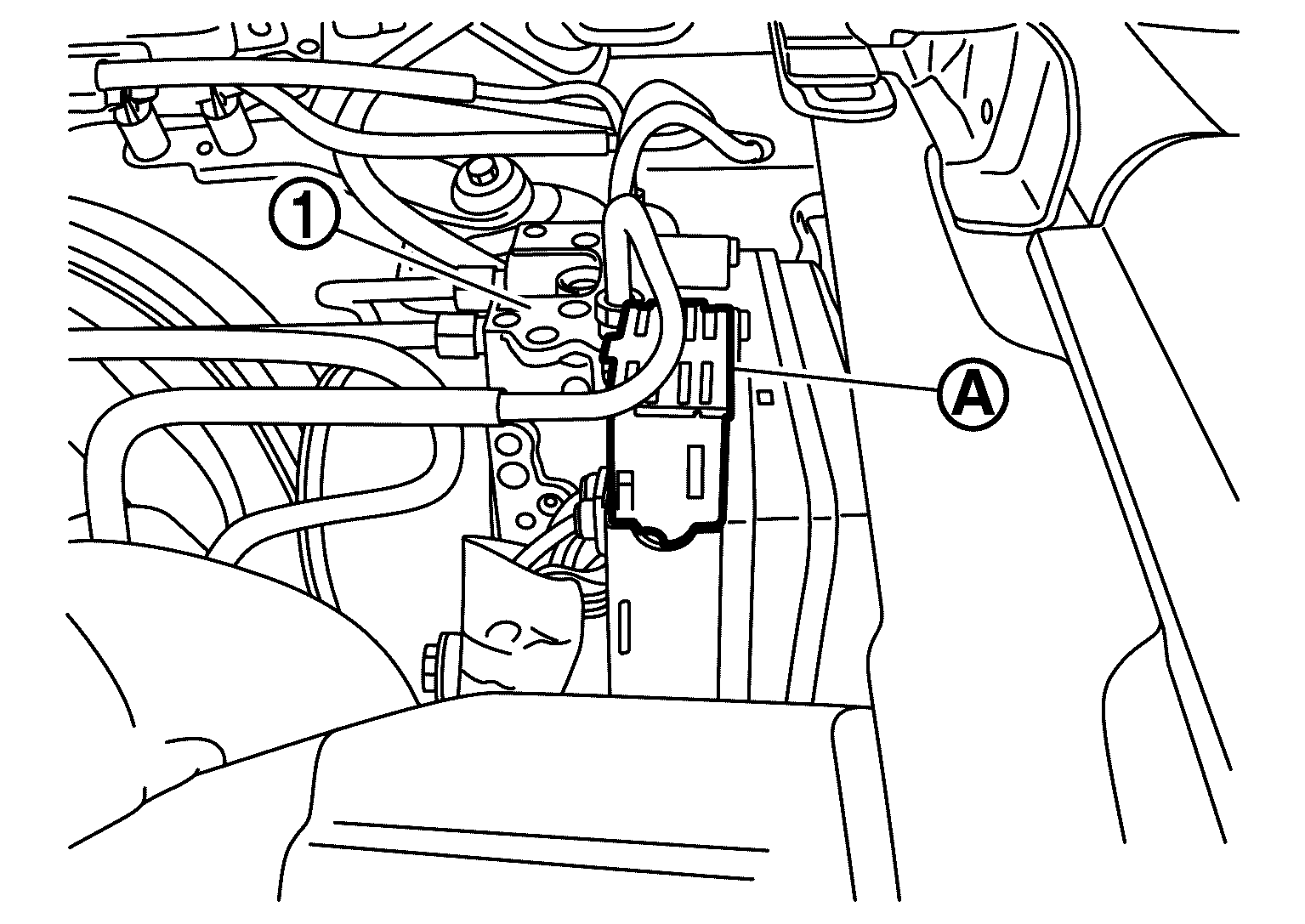

After installing the ABS actuator and electric unit (control unit) harness connector , push down the lever until locked.

Courtesy of NISSAN NORTH AMERICA, INC.
When replacing the ABS actuator and electric unit (control unit), be sure to perform the following procedure.
- Configuration: Refer to Work Procedure .
- Adjustment of steering angle sensor: Refer to Work Procedure .
- Calibration of decel G sensor: Refer to Work Procedure .
