Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

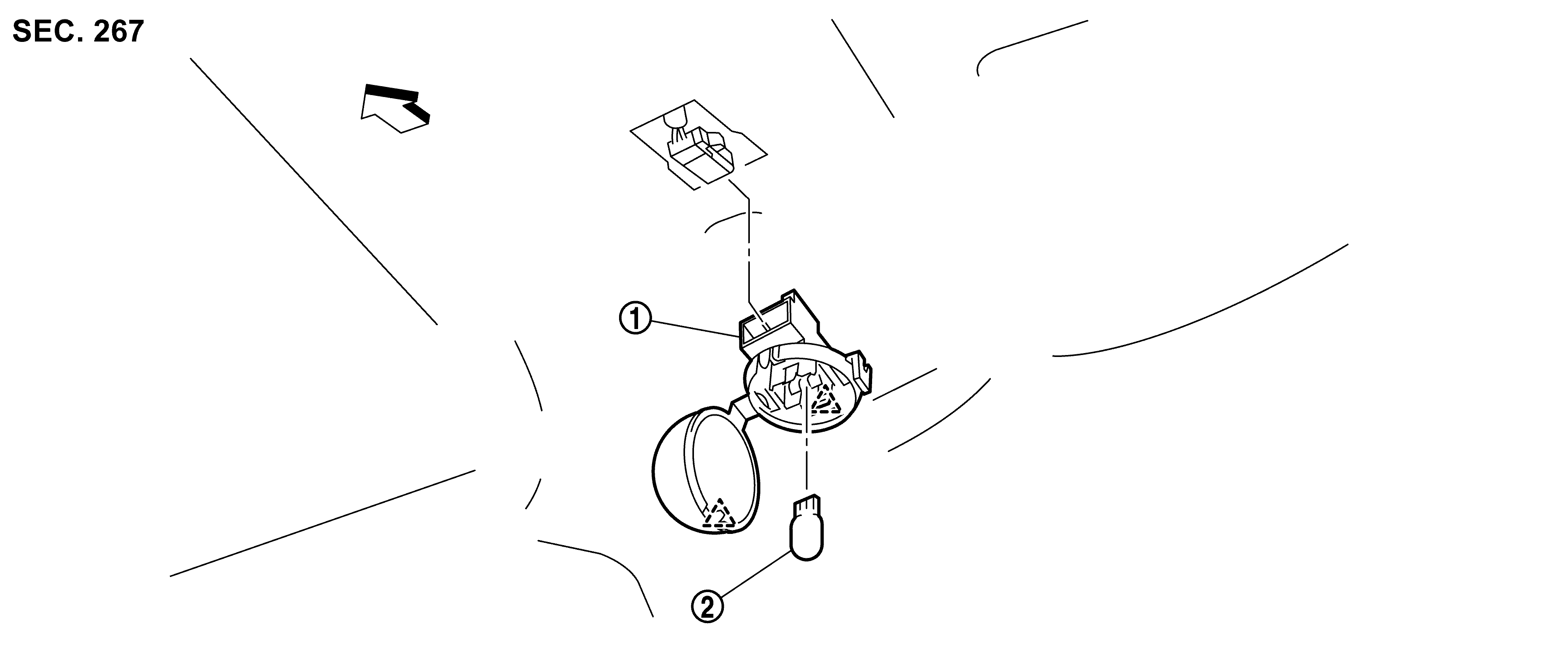

GNSJMLIA7585Z-585Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Trunk room lamp housing

SYMBOL

Bulb

SYMBOL

: Pawl

SYMBOL

: Vehicle front
