Work Procedure (Setting The ICC Target Board): Description

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Accurate adjustment of the radar alignment requires that the ICC sensor target board be accurately positioned.

CAUTION: If the radar alignment is adjusted with the distance sensor target board in the incorrect position, the ICC system does not function normally.
  1. DISTANCE SENSOR TARGET BOARD HEIGHT ADJUSTMENT

    Adjust the base of ICC target board to approximately 30 mm (1.18 in) from the ground.

    GO TO 2.

  2. PREPARATION OF SETTING DISTANCE SENSOR TARGET BOARD (1)

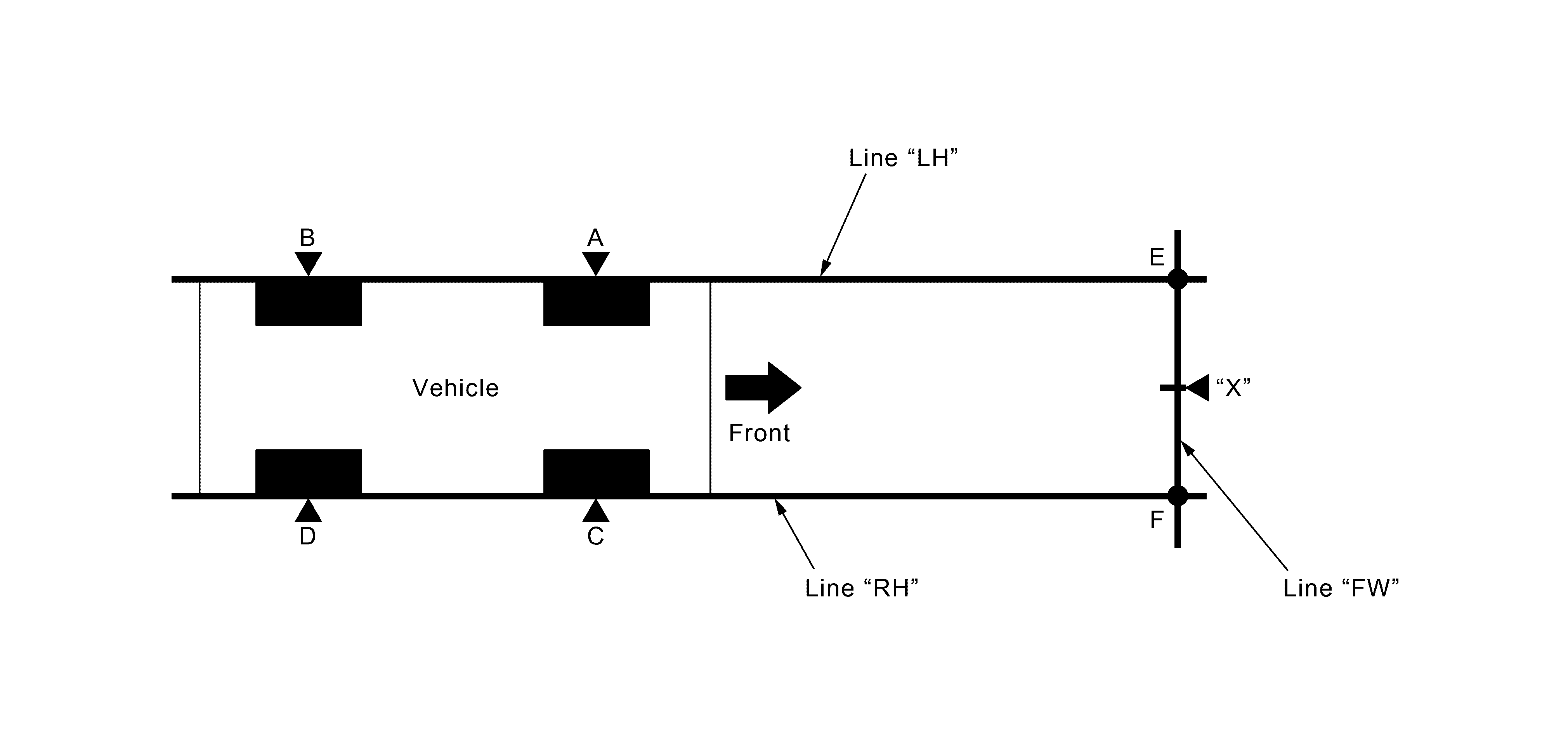

    GNSJSOIA2105GB-105Courtesy of NISSAN NORTH AMERICA, INC.

    "A"-"E" ("C"-"F")

    : 1747 mm (68.78 in)

    1. Mark points "A", "B", "C" and "D" at the center of the lateral surface of each wheels.
      G04140641Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.
    2. Draw line "LH" passing through points "A" and "B" on the left side of vehicle.
      NOTE: Approximately 2 m (6.56 ft) or more from the front end of vehicle.
    3. Mark point "E" on the line "LH" at the positions 1747 mm (68.78 in) from point "A".
    4. Draw line "RH" passing through points "C" and "D" on the right side of vehicle in the same way as step 2.
      NOTE: Approximately 2 m (6.56 ft) or more from the front end of vehicle.
    5. Mark point "F" on the line "RH" at the positions 1747 mm (68.78 in) from point "C".
    6. Draw line "FW" passing through the points "E" and "F" on the front side of vehicle.
    7. Mark point "X" at the center of point "E" and "F" on the line "FW".
      CAUTION: Make sure that "E" to "X" is equal to "F" to "X".

    GO TO 3.

  3. SETTING DISTANCE SENSOR TARGET BOARD

    Place the center of ICC target board on point "G" at line "E-F" and install the ICC target board.

    CAUTION: For performing the radar alignment correctly, securely install (ICC target board) to be parallel with the "E-F" line.

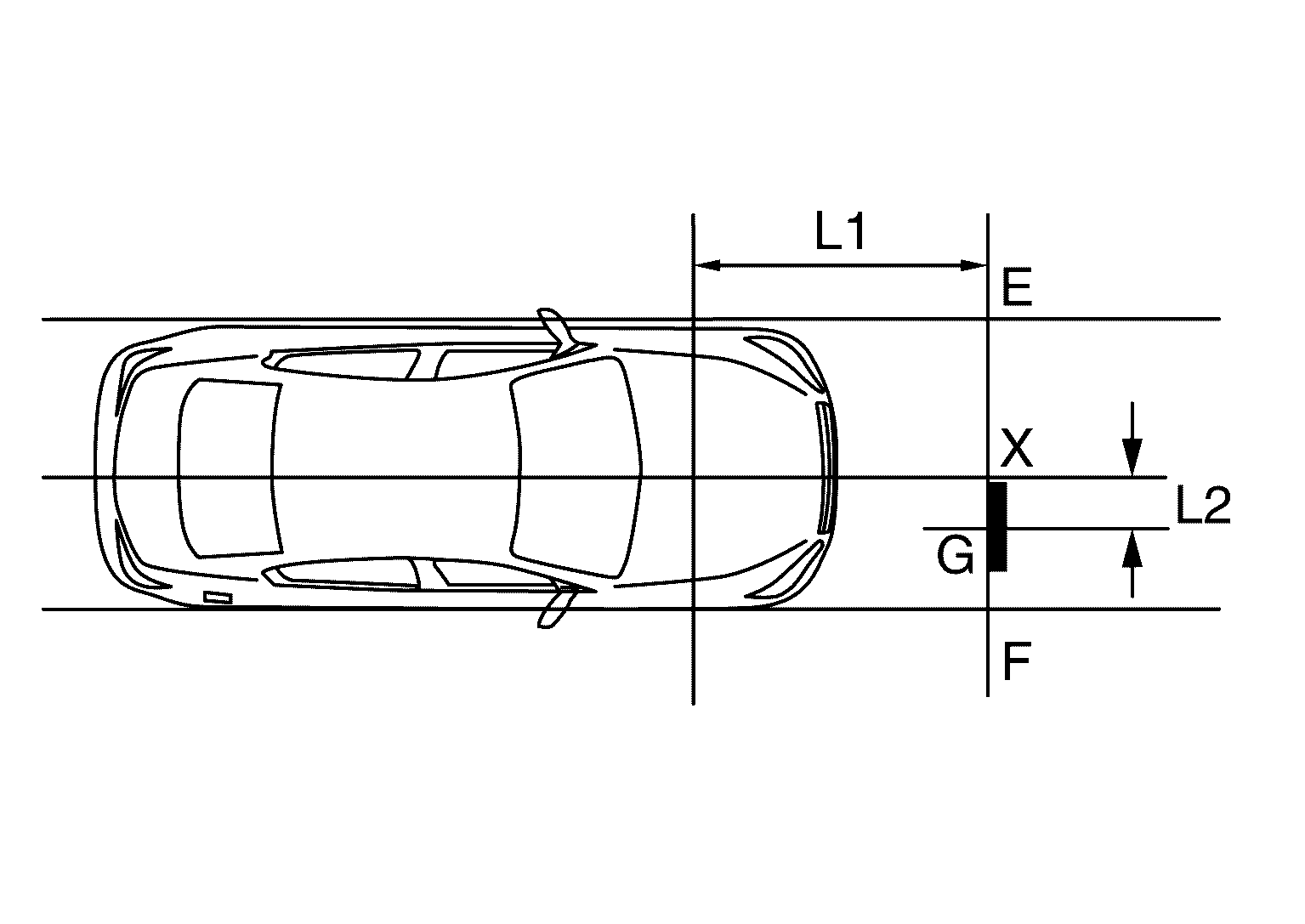

    GNSJSOIA0824Z-824Courtesy of NISSAN NORTH AMERICA, INC.

    L1

    : 1834 mm (72.2 in)

    L2

    : 15 mm (0.59 in)

    GO TO 4.

  4. CHECK THE DISTANCE SENSOR TARGET BOARD INSTALLATION AREA

    Do not place anything other than distance sensor target board in the space shown below (view from top).

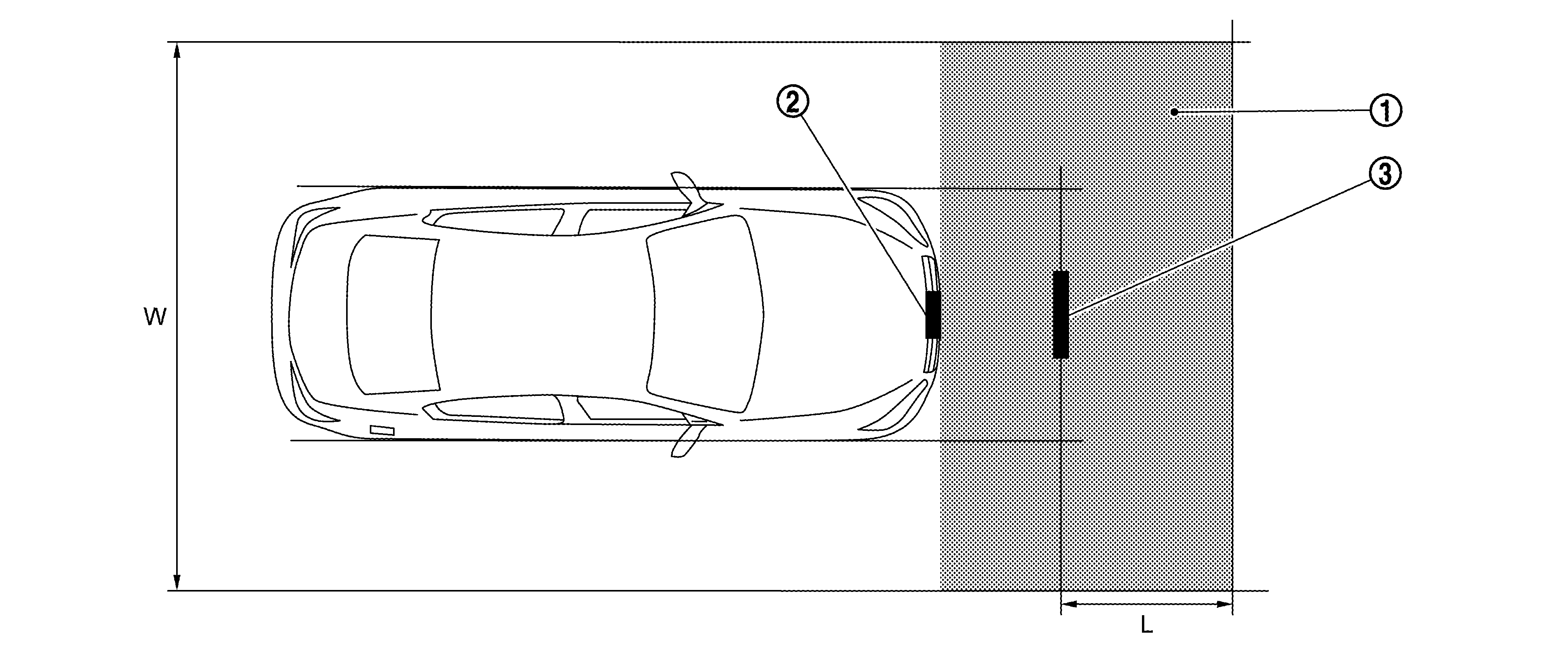

    GNSJSOIA1803Z-803Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    No object zone

    SYMBOL

    ICC sensor

    SYMBOL

    ICC target board

    W.

    3000 mm (118.11 in)

    L.

    1500 mm (59.06 in)



    Go to Work Procedure (Radar Alignment) .
