Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Before replacing display control unit, perform "Read/Write Configuration" to save or print current vehicle specification. For details, refer to Description .
- Remove battery terminal and display control unit after a lapse of 30 seconds or more after turning the ignition switch OFF.
NOTE:
- After the ignition switch is turned OFF, the display control unit continues operating for approximately 30 seconds. Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.
- Downloaded applications are deleted when display control unit is replaced.
- Remove the integral switch. Refer to Removal and Installation .

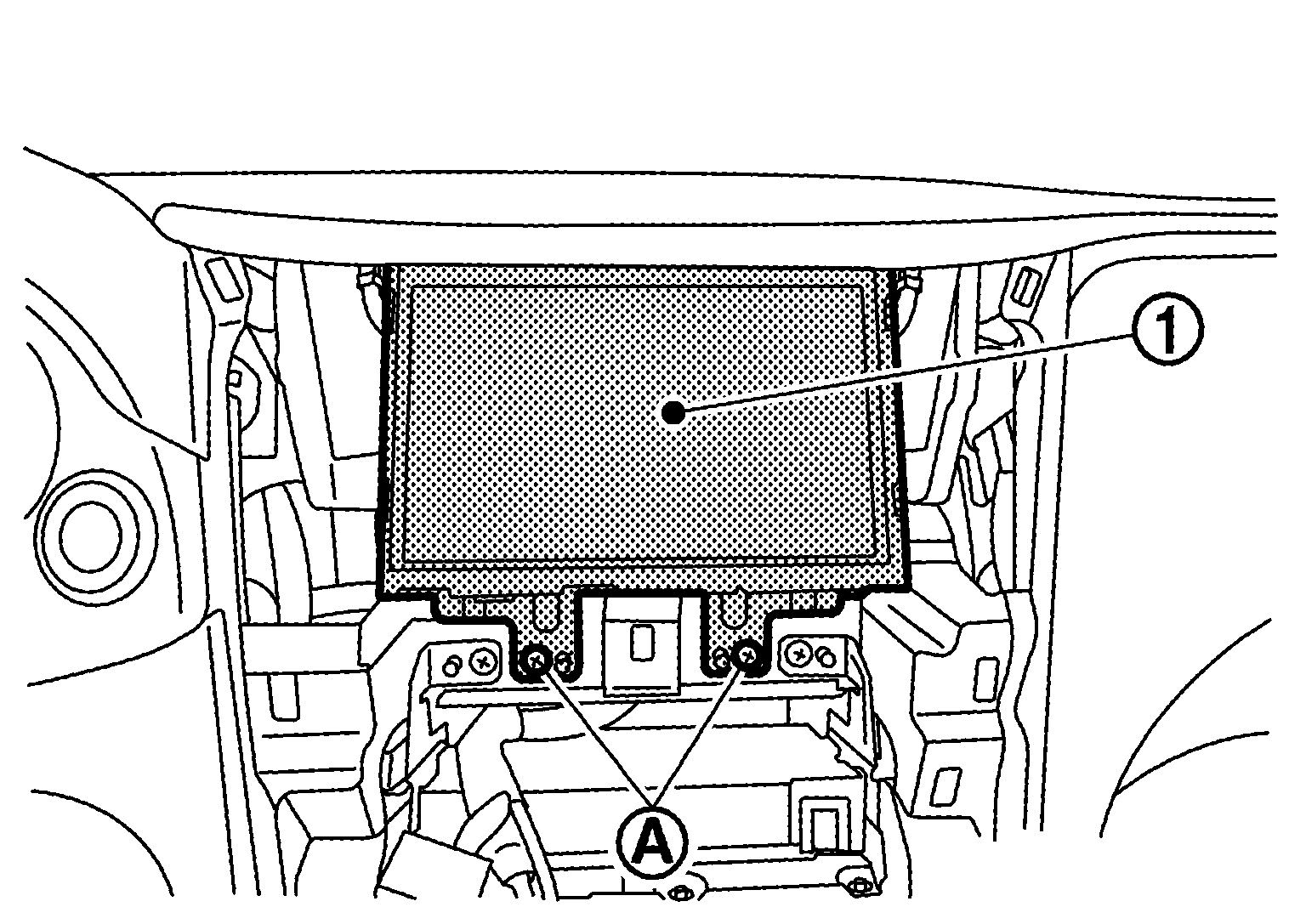

- Remove the bracket screws
.
- Disconnect the harness connector from the display control unit
.
- Remove the bracket from display control unit.
