Physical Values
|
Terminal No. (Wire color) |
Description |
Condition |
Standard value |
Reference value |
|||
|
+ |
- |
Signal name |
Input/Output |
||||
|
1 (R) |
2 (B) |
Warning buzzer signal |
Output |
Ignition switch ON |
Driver assistance buzzer OFF |
0 - 0.1 V |
Approx. 0 V |
|

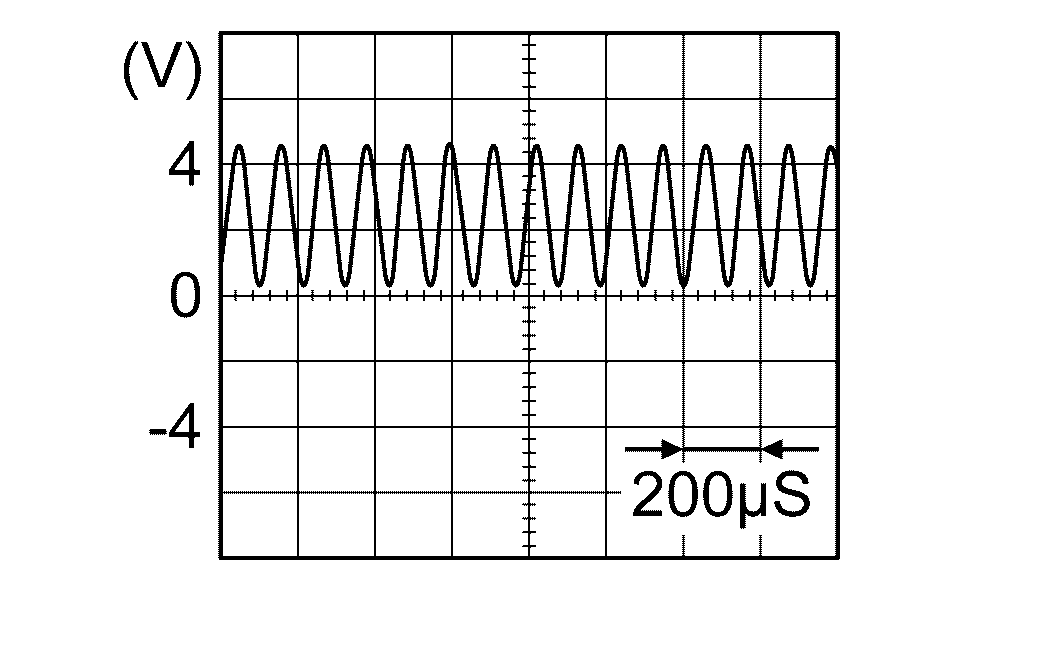

At "ADAS buzzer 2" test of "Active test" |
|||||||
|
2 (B) |
Ground |
Ground |
-- |
Ignition switch ON |
0 - 0.1 V |
Approx. 0 V |
|
|
3 (R) |
-- |
Chassis communication-L |
-- |
-- |
-- |
-- |
|
|
9 (L) |
ITS communication-H |
-- |
-- |
-- |
-- |
||
|
12 (R) |
24 (L) |
Steering vibration motor signal |
Output |
Ignition switch ON |
Steering vibration motor OFF |
0 V |
Approx. 0 V |
|
At "Vibration motor" test of "Active test" |
12 V |
Approx. 12 V |
|||||
|
13 (G) |
2 (B) |
Warning buzzer signal ground |
-- |
Ignition switch ON |
0 - 0.1 V |
Approx. 0 V |
|
|
15 (L) |
-- |
Chassis communication-H |
-- |
-- |
-- |
-- |
|
|
16 (G) |
2 (B) |
Ignition power supply |
Input |
Ignition switch ON |
-- |
10 - 16 V |
Battery voltage |
|
21 (P) |
-- |
ITS communication-L |
-- |
-- |
-- |
-- |
|
|
24 (L) |
2 (B) |
Steering vibration motor signal ground |
Output |
Ignition switch ON |
Steering vibration motor OFF |
4 V |
Approx. 4 V |
|
At "Vibration motor" test of "Active test" |
0 V |
Approx. 0 V |
|||||
