Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing ADAS control unit 2, perform "Read/Write Configuration" to save or print current vehicle specification. For details, refer to Work Procedure .
  1. Remove the rear side finisher RH. Refer to Removal and Installation .
  2. Remove the floor carpet assembly SYMBOL from pawls (SYMBOL and SYMBOL ).
    GNSJSOIA2567Z-567Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove bolts (SYMBOL and SYMBOL ) and remove the rear floor gusset LH SYMBOL .
    GNSJSOIA2568Z-568Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the nut SYMBOL and bolts SYMBOL to remove the rear pillar inner reinforcement RH SYMBOL .
    GNSJSNIB0342Z-342Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect ADAS control unit 2 connector.

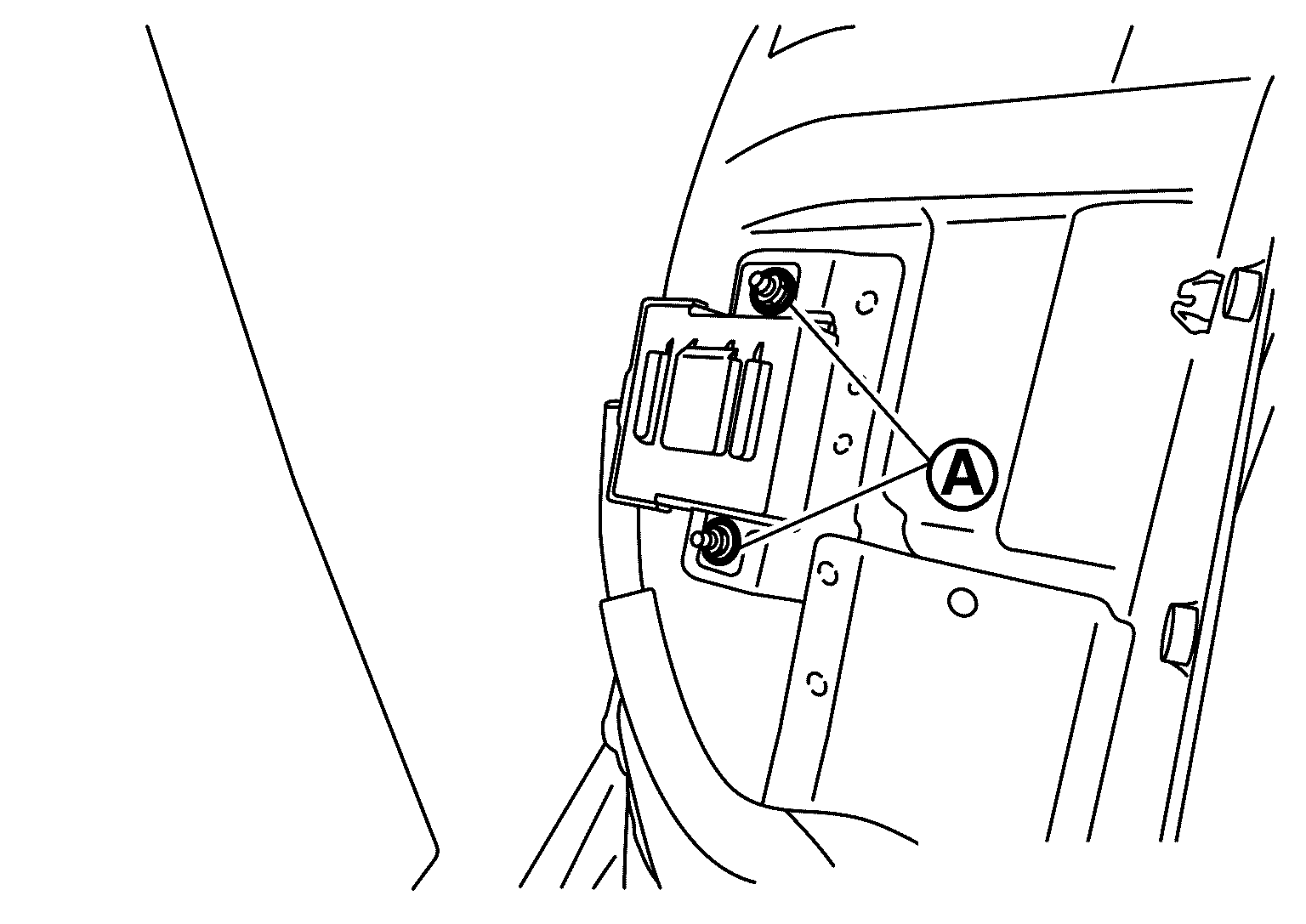

  6. Remove mounting nuts SYMBOL from ADAS control unit 2.
    GNSJSOIA2546Z-546Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove ADAS control unit 2.
