On Board Diagnosis Function (With ICC): Description
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
The DTC is displayed on the information display by operating the ICC steering switch.

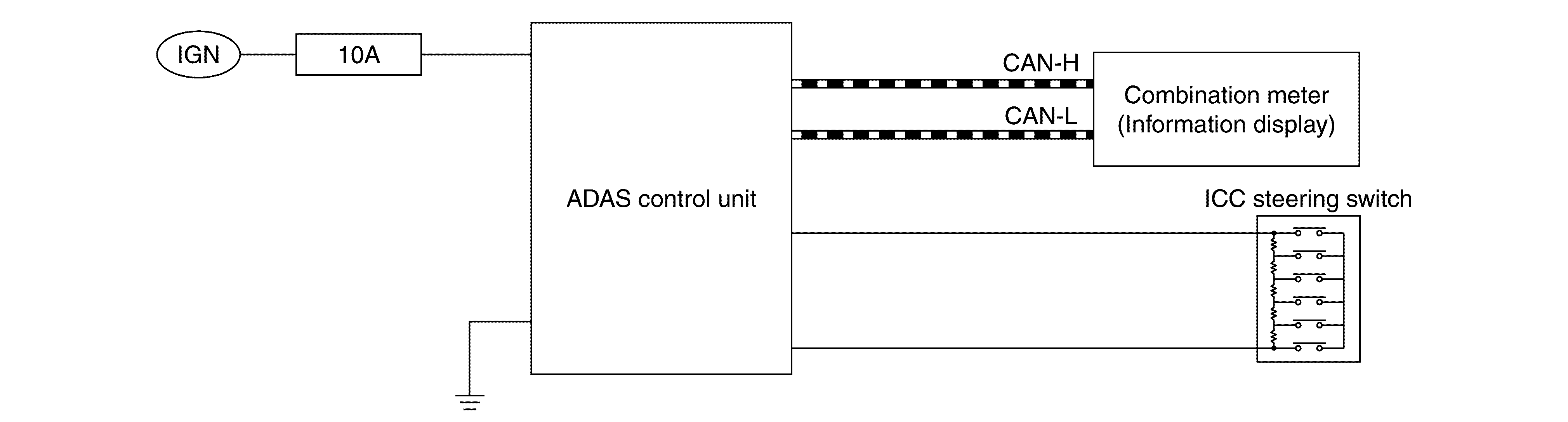

On Board Self-diagnosis System Diagram (VR30DDTT)
 Courtesy of NISSAN NORTH AMERICA, INC.
|
On Board Self-diagnosis System Diagram (2.0 TURBO GASOLINE ENGINE)
 Courtesy of NISSAN NORTH AMERICA, INC.
|
