Circuit Diagram: VR30DDTT

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

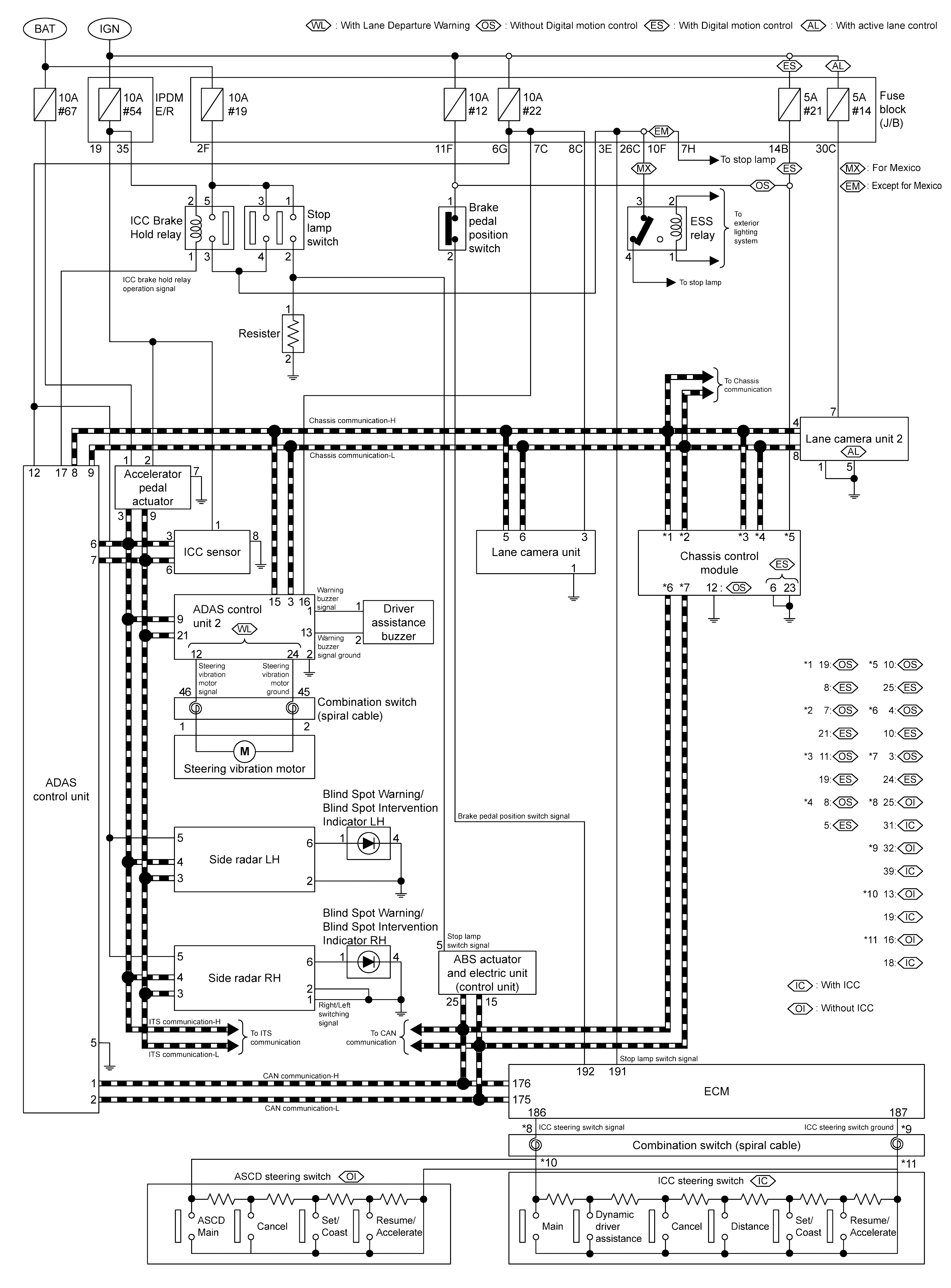

GNSILL0230061-061Courtesy of NISSAN NORTH AMERICA, INC.

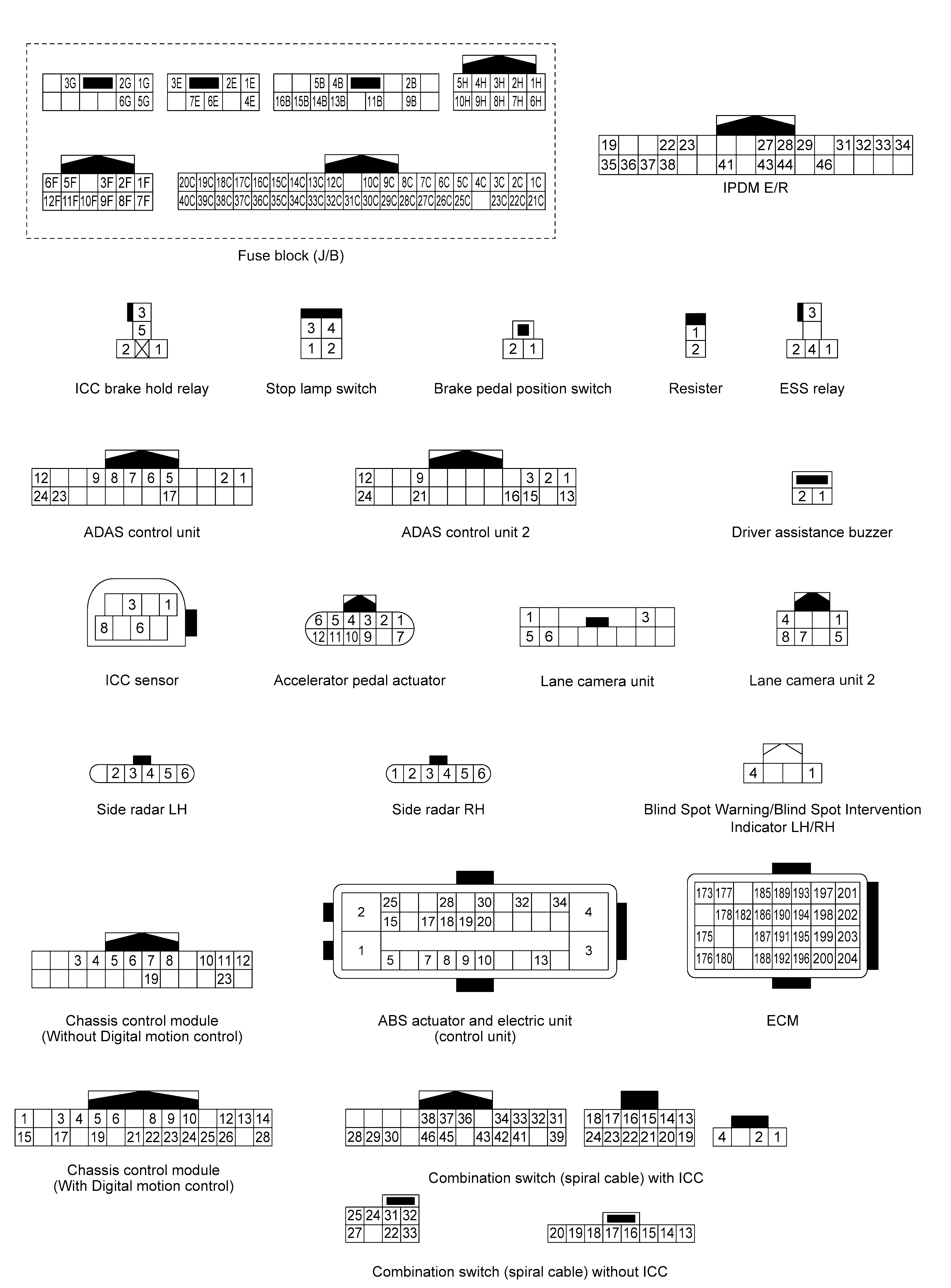

GNSILL0230062-062Courtesy of NISSAN NORTH AMERICA, INC.
