Display And Warning (PFCW/LDW/BSW)
System Display
The PFCW/LDW/BSW systems operate when ON is selected with the integral switch.
|

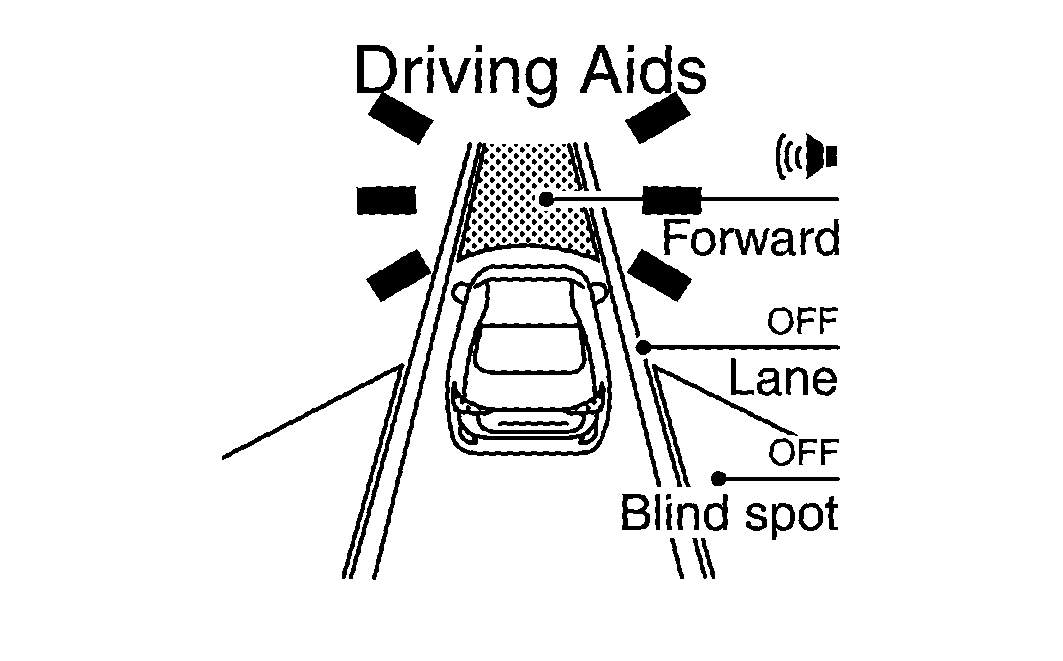

System status |
Condition |
Display on combination meter |
Indicator color |
|

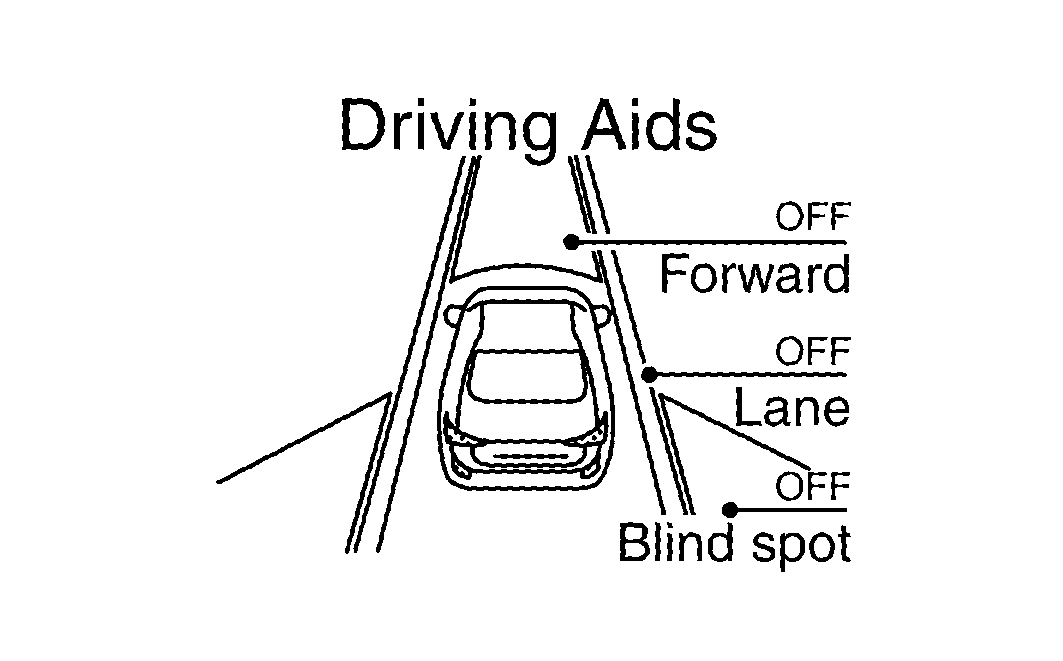

PFCW/LDW/BSW OFF |
-- |
-- |
|
|

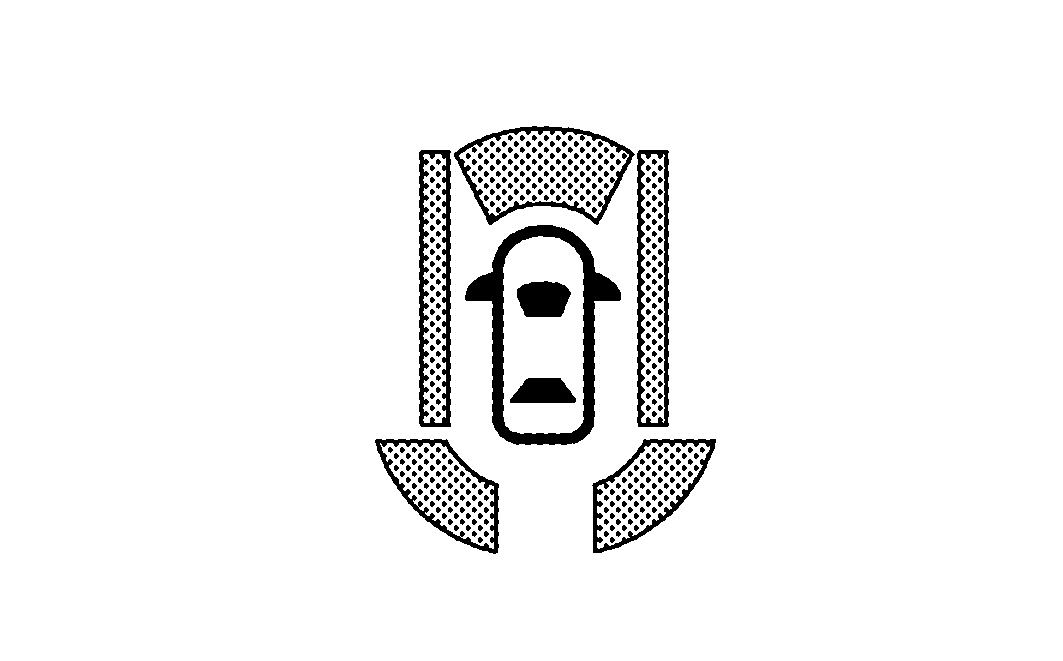

PFCW/LDW/BSW ON |

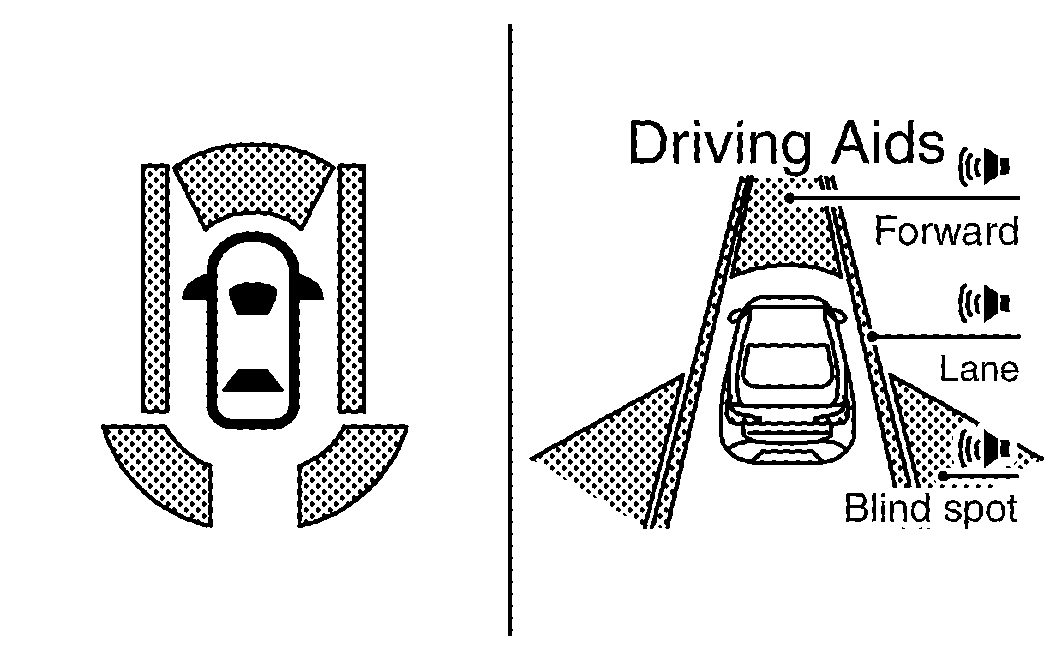

System ON |
White |
|
|

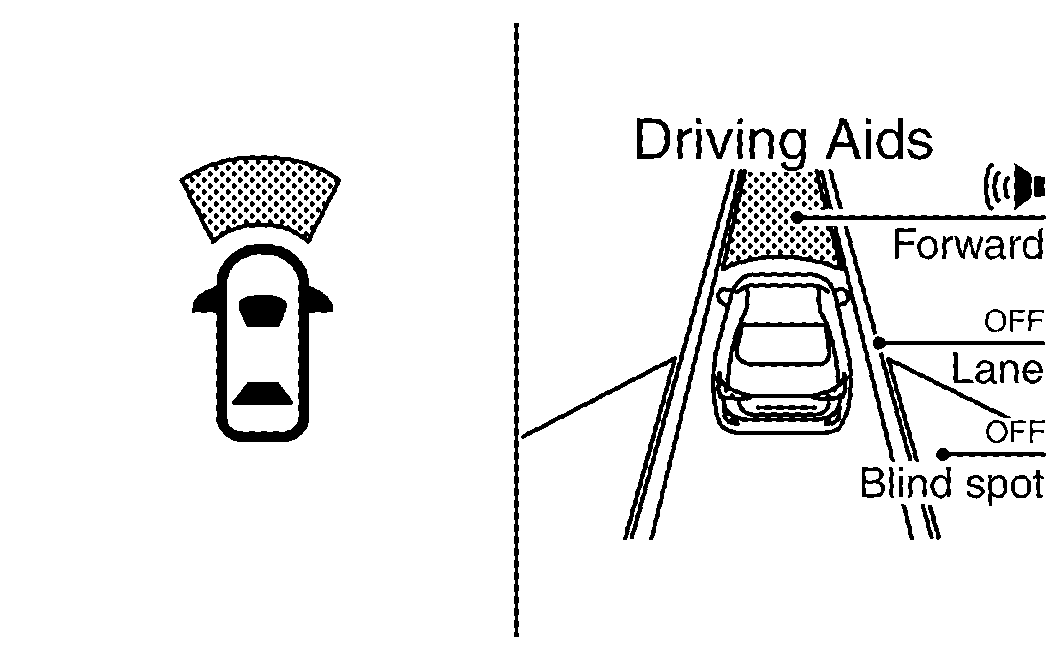

PFCW ON (FEB ON) |
System ON |
White |
|
|
LDW ON |
System ON |
White |
|
|
BSW ON |
System ON |
White |
|
|

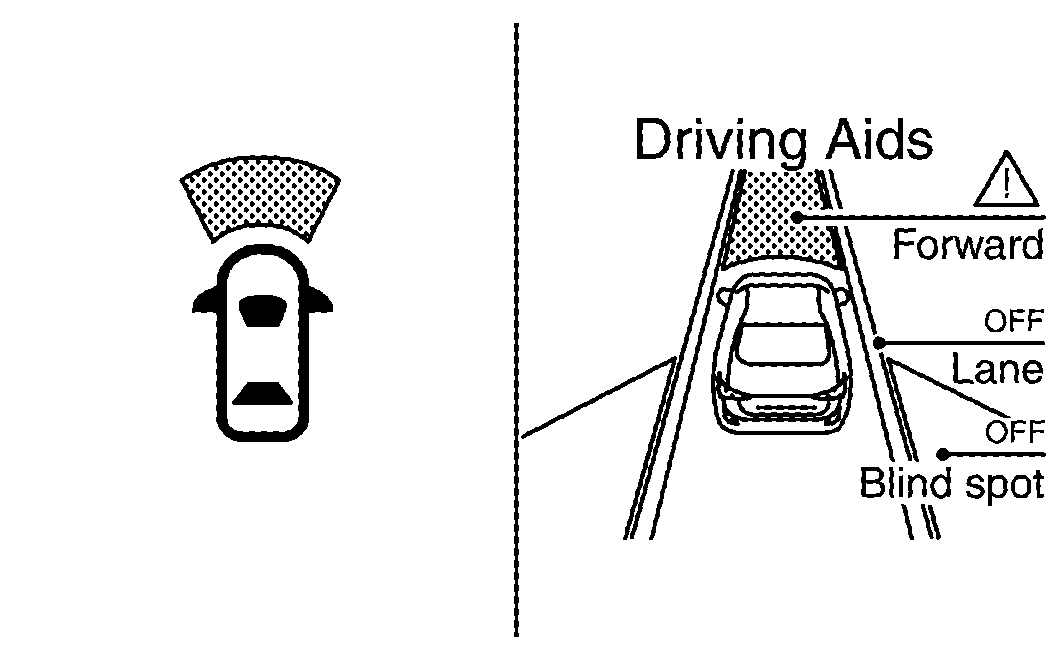

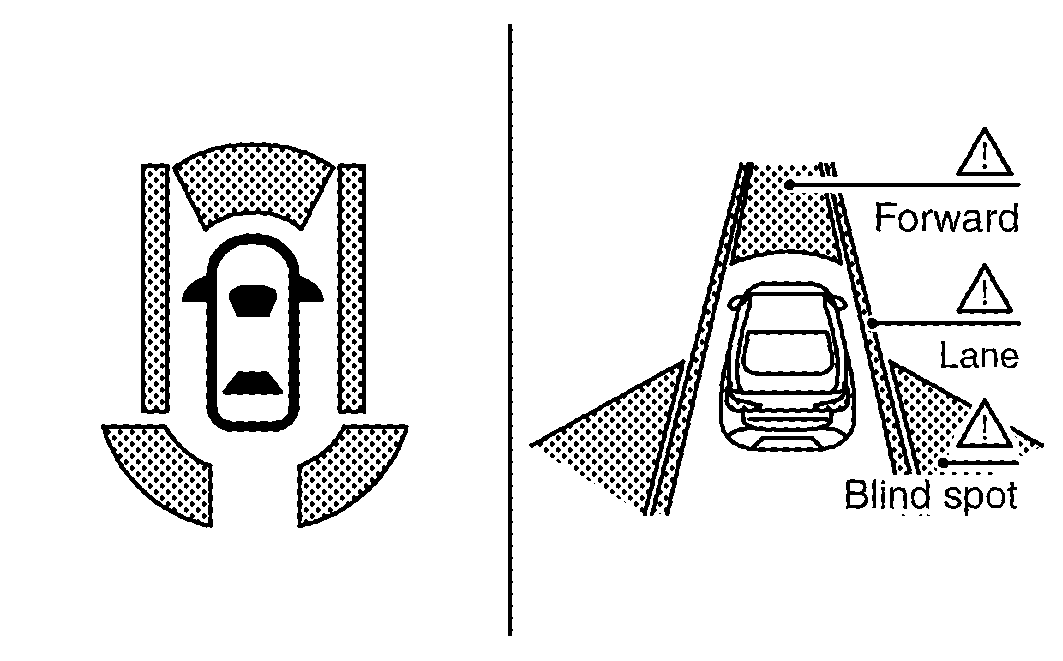

PFCW/LDW/BSW are malfunction |
System malfunction |
Yellow |
|
|
Operation conditions not satisfied (dirt around the ICC sensor) |
The PFCW/FEB system is automatically canceled. |
Yellow |
|
|
White |
|||
|
Unavailable Front Radar Obstruction |
|||
|
Accelerator pedal high temperature |
White (Blink) |
||
|
White |
|||
|
Unavailable High Accelerator Temperature |
|||
|
Lane camera unit high temperature |
The LDW system is automatically canceled. |
White (Blink) |
|
|
White |
|||
|
Unavailable High Cabin Temperature |
|||
|
Dirt around the side radar |
The BSW system is automatically canceled. |
White (Blink) |
|
|
White |
|||
|
Unavailable Side Radar Obstruction |

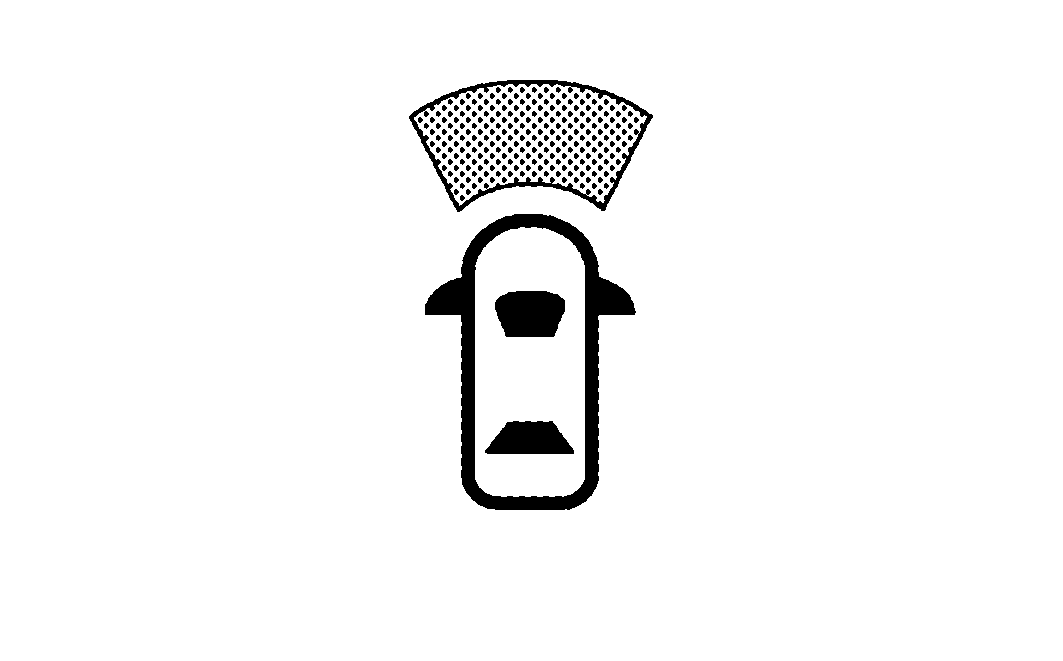

Warning Operation

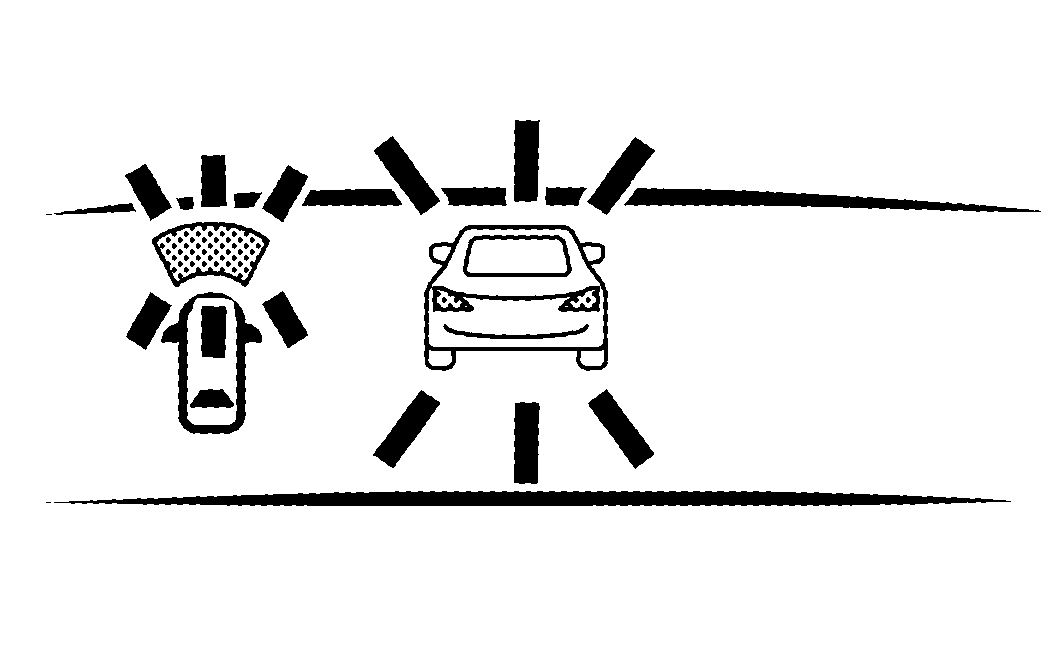

- PFCW operation
Condition
Action
Indication on the combination meter
Indicator color
Buzzer
System ON
White
OFF

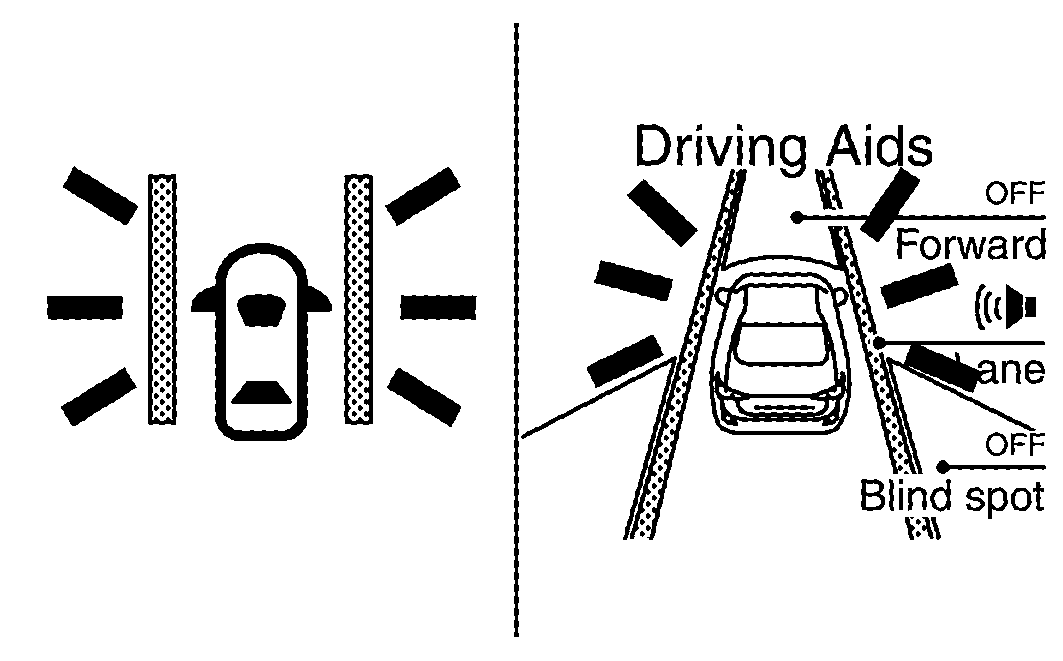

When judged that the distance between own vehicle and a vehicle in front of the vehicle ahead becomes closer
Yellow (Blink)
Beep
Yellow (Blink)
Operation conditions not satisfied (dirt around the ICC sensor)
Yellow
Beep
Unavailable Front Radar Obstruction

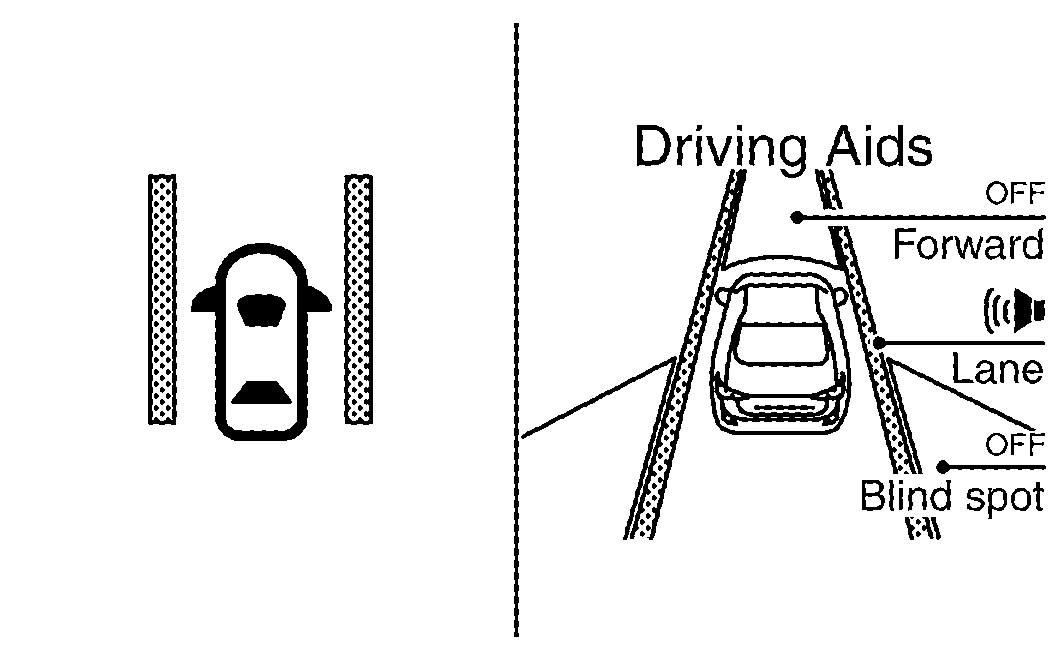

- LDW operation
Vehicle condition/ Driver's operation
Action
Vehicle speed
(Approx.)
[km/h (MPH)]
Turn signal condition
Status of vehicle close to lane marker
Indication on the combination meter
Indicator color
Steering vibration
Less than Approx. 60 km/h (37 MPH)
--
Close to lane marker
White
OFF
Approx. 70 km/h (45 MPH) or more
- OFF
- ON (Opposite to the deviate side)
Close to lane marker
Yellow (Blink)
ON
ON (Deviate side)
Close to lane marker
White
OFF
NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 MPH). Refer to System Description (with direct adaptive steering), System Description (without direct adaptive steering).

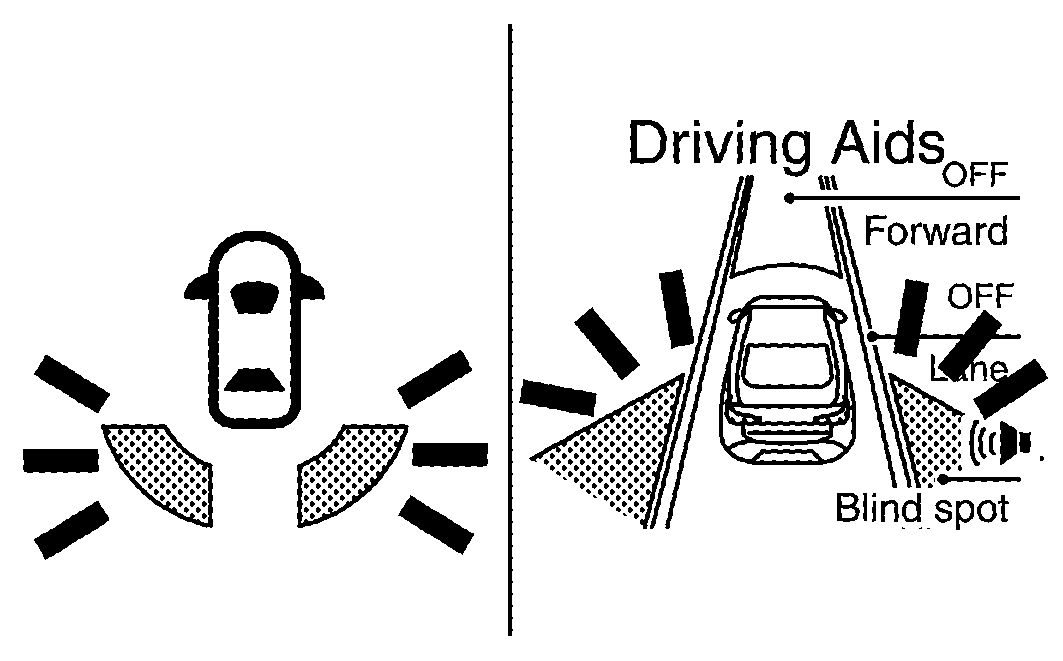

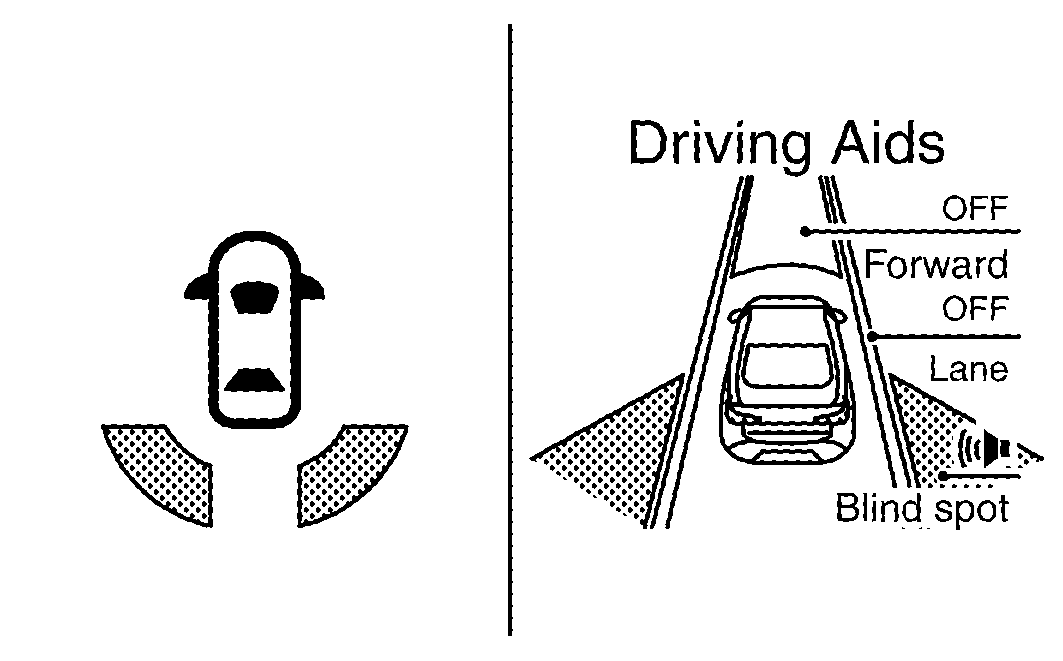

- BSW operation
Vehicle condition/ Driver's operation
Action
Vehicle speed
(Approx.)
[km/h (MPH)]
Turn signal condition
Status of vehicle detection within detection area
Indication on the
Blind Spot Warning/Blind Spot Intervention indicator
Indication on the combination meter
Indicator color
Buzzer
Less than approx.
29 (18)
--
--
OFF
White
OFF
Approx.
32 (20)
or more
--
Vehicle is not detected
OFF
White
OFF
OFF

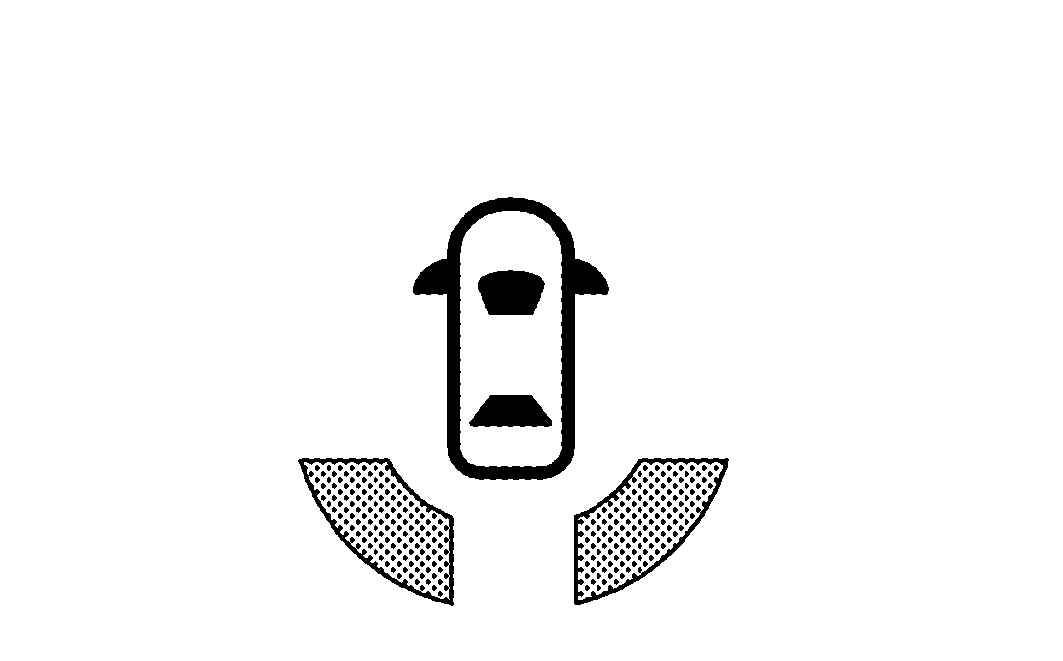

Vehicle is detected
ON
White
OFF
ON
(vehicle detected direction)
Before turn signal operates
Vehicle is detected
Blink
Yellow (Blink)
Short continuous beeps
Vehicle is detected after turn signal operates
Blink
Yellow (Blink)
OFF
NOTE:- If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
- Time shown in the figure is approximate time.
- Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON by pushing the dynamic driver assistance switch, BSW system also be turned on even if the BSW system is turned off.
