System Display
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

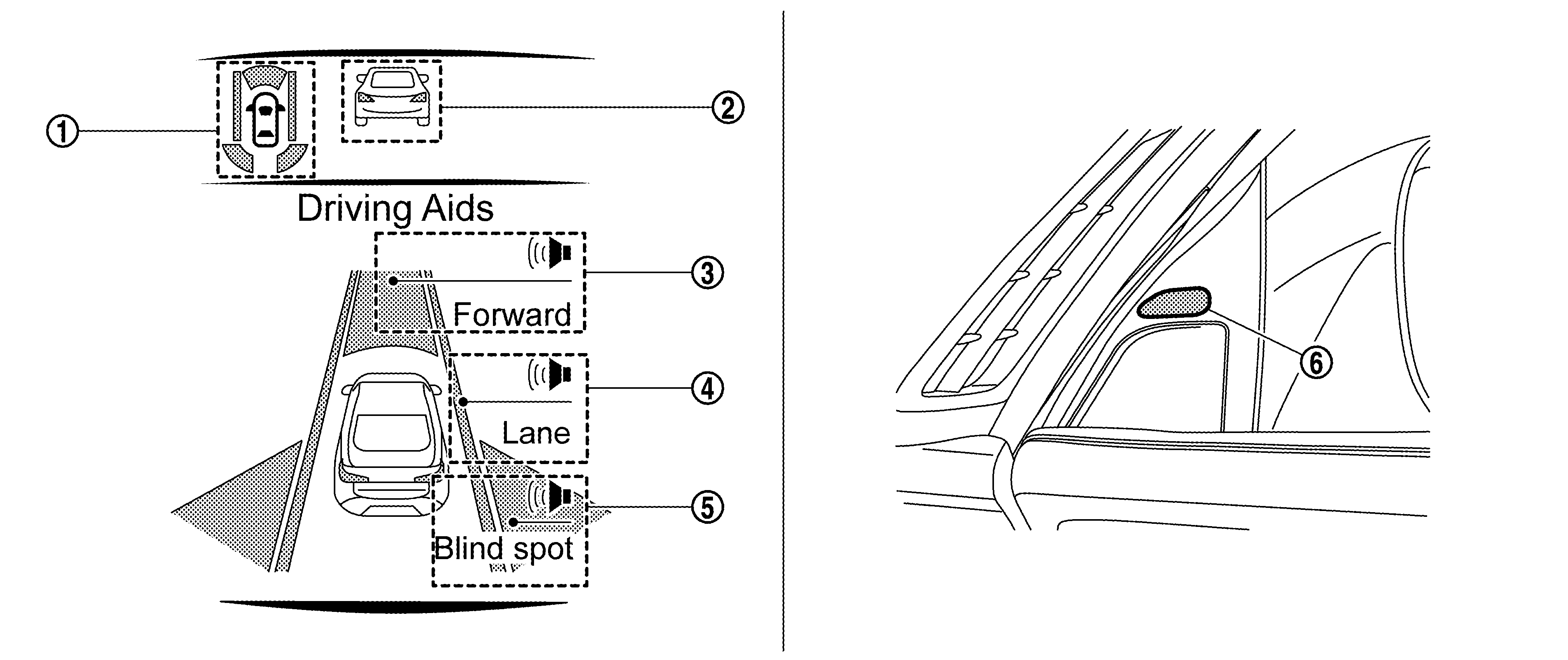

PFCW/LDW/BSW
|
No. |
Switch name |
Description |
|
|
Warning systems indicator |
Indicates that PFCW/FEB/LDW/BSW systems are ON |
|
|
Vehicle ahead detection indicator |
Indicates whether it detects a vehicle ahead
NOTE:
The vehicle ahead detection indicator turns OFF when the no operation condition is satisfied
|
|
|
Warning systems indicator "Forward" position (Speaker icon) |
Indicates that PFCW/FEB system is ON |
|
|
Warning systems indicator "Lane" position (Speaker icon) |
Indicates that LDW system is ON |
|
|
Warning systems indicator "Blind spot" position (Speaker icon) |
Indicates that BSW system is ON |
|
|
Blind Spot Warning/Blind Spot Intervention indicator LH/RH |
|
