Section 571 (Security Control System (Diagnostics))
>>
Description
>>
System
>>
INFINITI Vehicle Immobilizer System-IVIS
>>

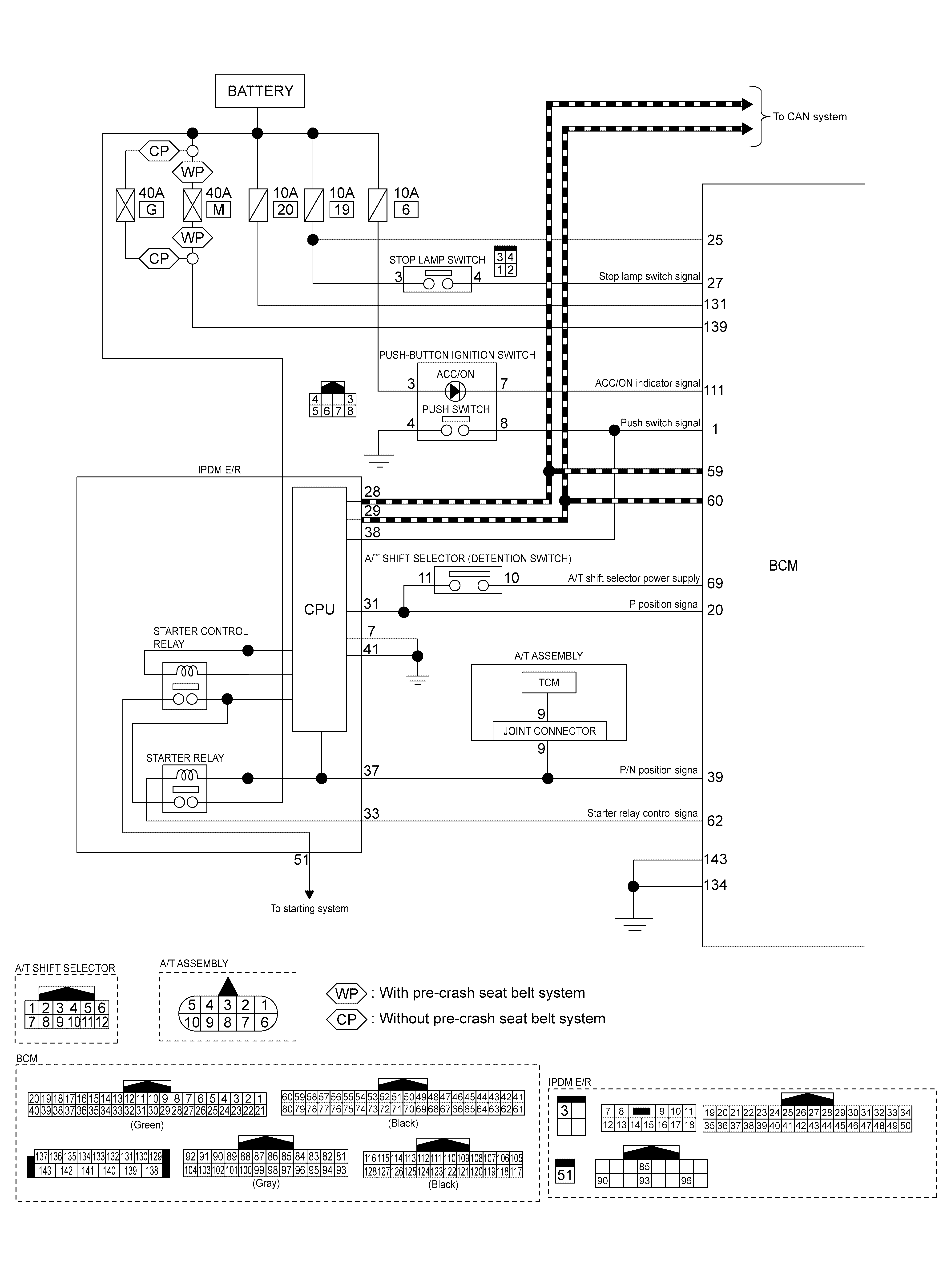

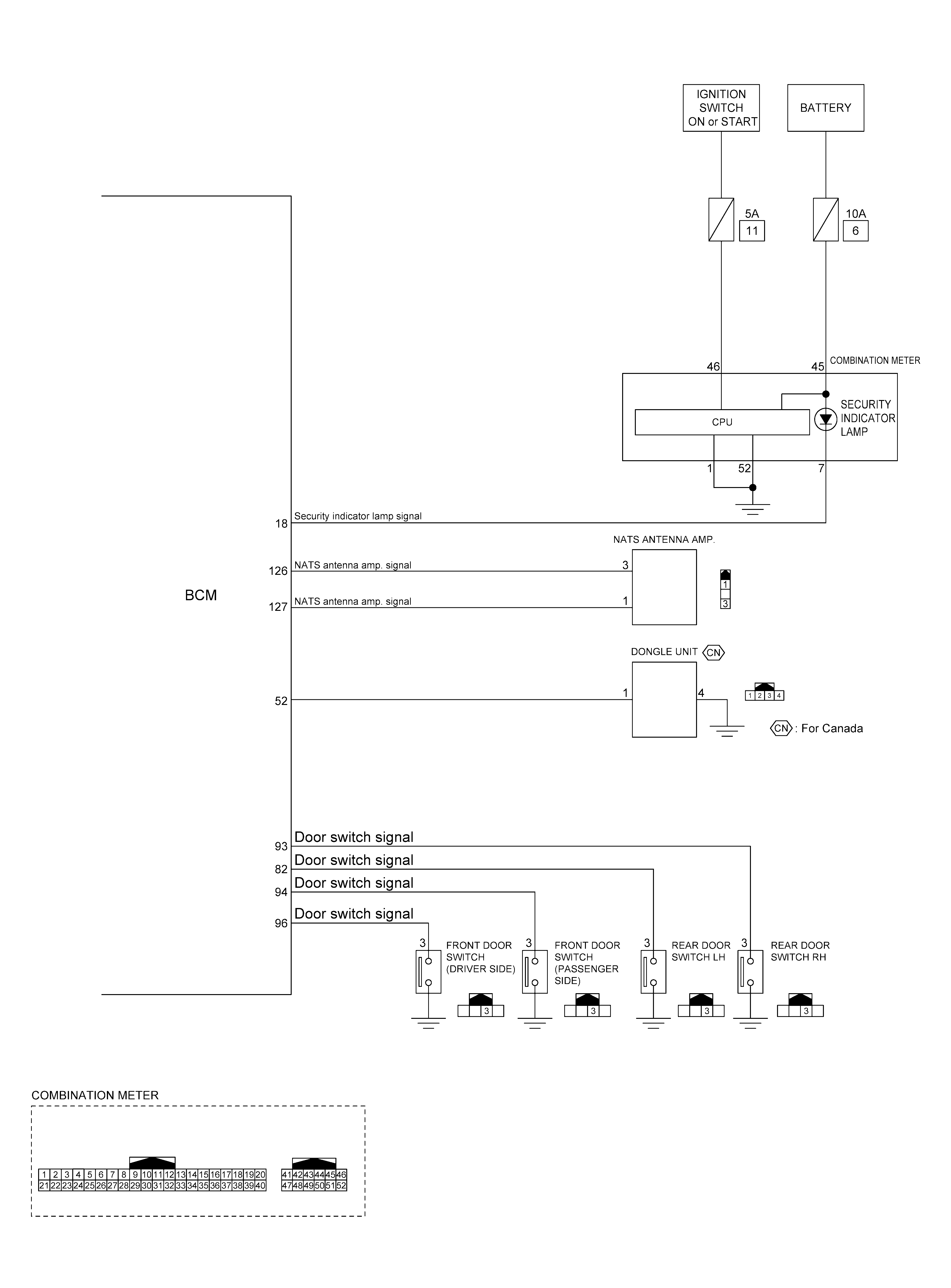

Circuit Diagram
>>
Gasoline engine models
>>
Security Control System (Diagnostics)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Security Control System (Diagnostics)
WARNING:
This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
