For VR30DDTT Engine Models

WARNING: This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
GNSILL0217838-838Courtesy of NISSAN NORTH AMERICA, INC.

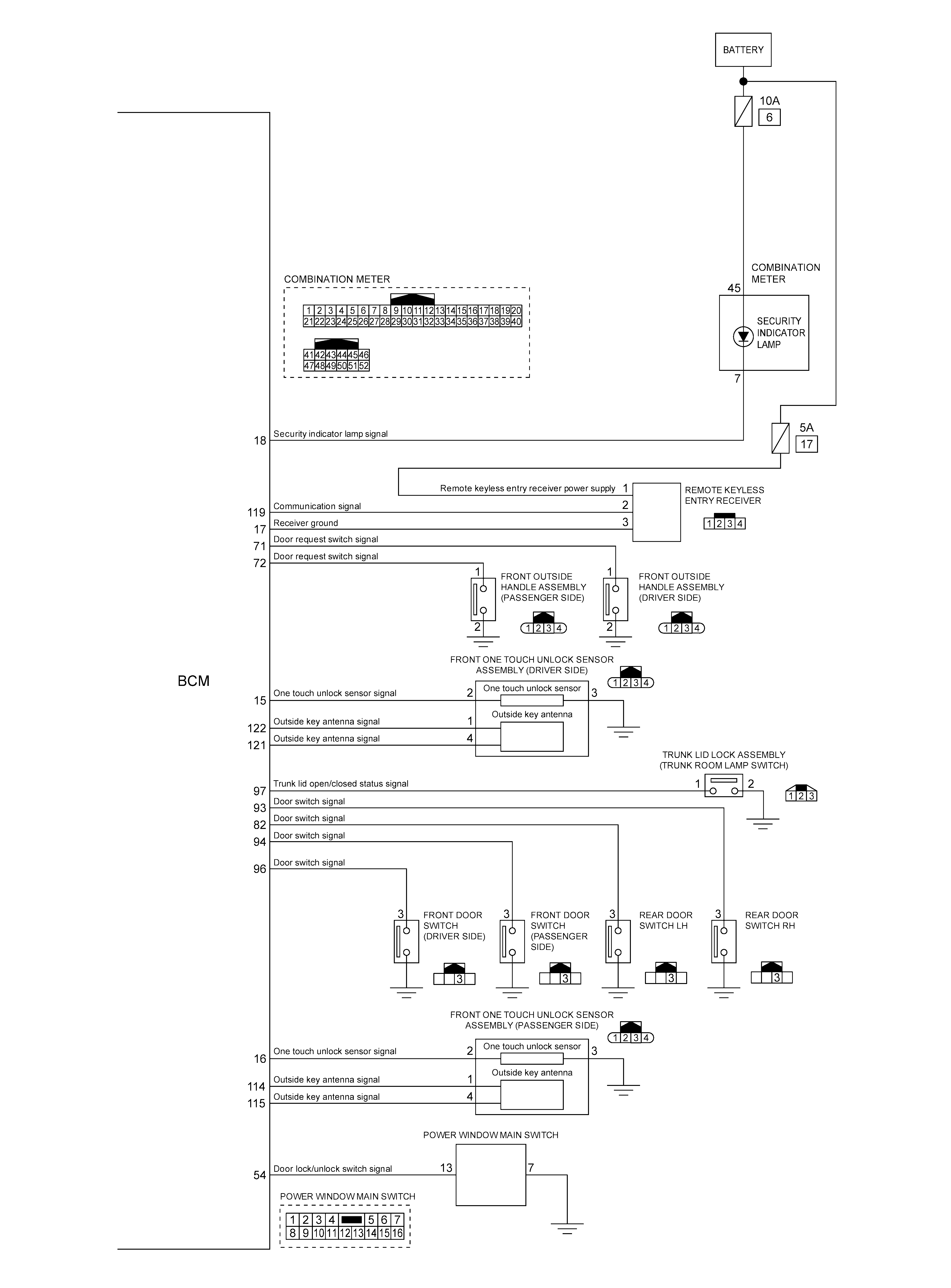

GNSILL0258206-206Courtesy of NISSAN NORTH AMERICA, INC.
