Exploded View

WARNING: This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

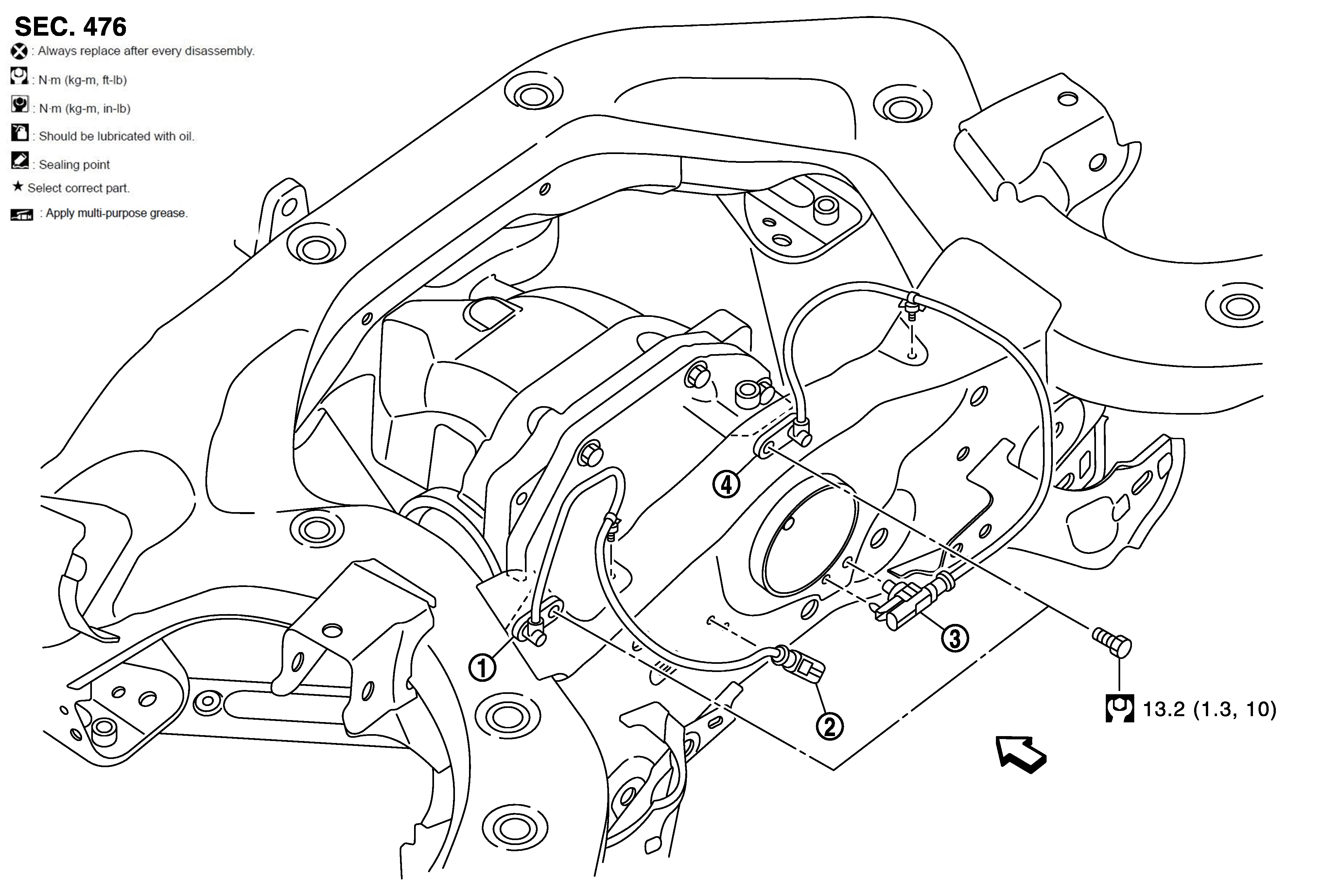

Fig 1: Rear Wheel Sensor Replacement Components With Torque Specifications
GNSJPFIC0102GB-102SYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear LH wheel sensor

SYMBOL

Rear LH wheel sensor harness connector

SYMBOL

Rear RH wheel sensor harness connector

SYMBOL

Rear RH wheel sensor

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)
