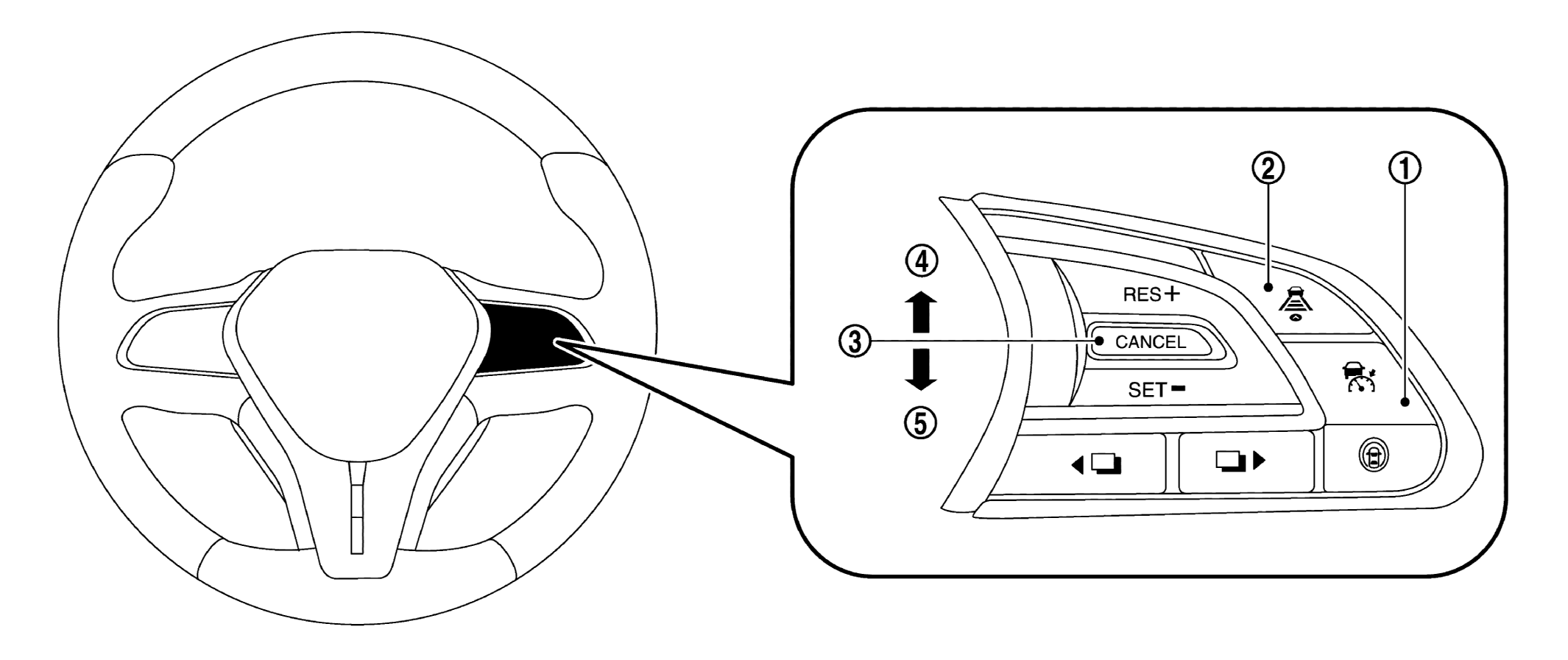

Switch Name And Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	MAIN Switch	Master Switch to activate the system (Press for less than 1.5 seconds)
	DISTANCE Switch	Changes the following distance from: Long, Middle, Short
	CANCEL Switch	Deactivates the system without erasing the set speed
	RESUME/ACCELERATE Switch	Resumes set speed or increases speed incrementally Push and hold the Switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the Switch to increase the set speed by 1 km/h (1 MPH)
	SET/COAST Switch	Sets desired cruise speed or reduces speed incrementally Push and hold the Switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the Switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 32 km/h (20 MPH)
