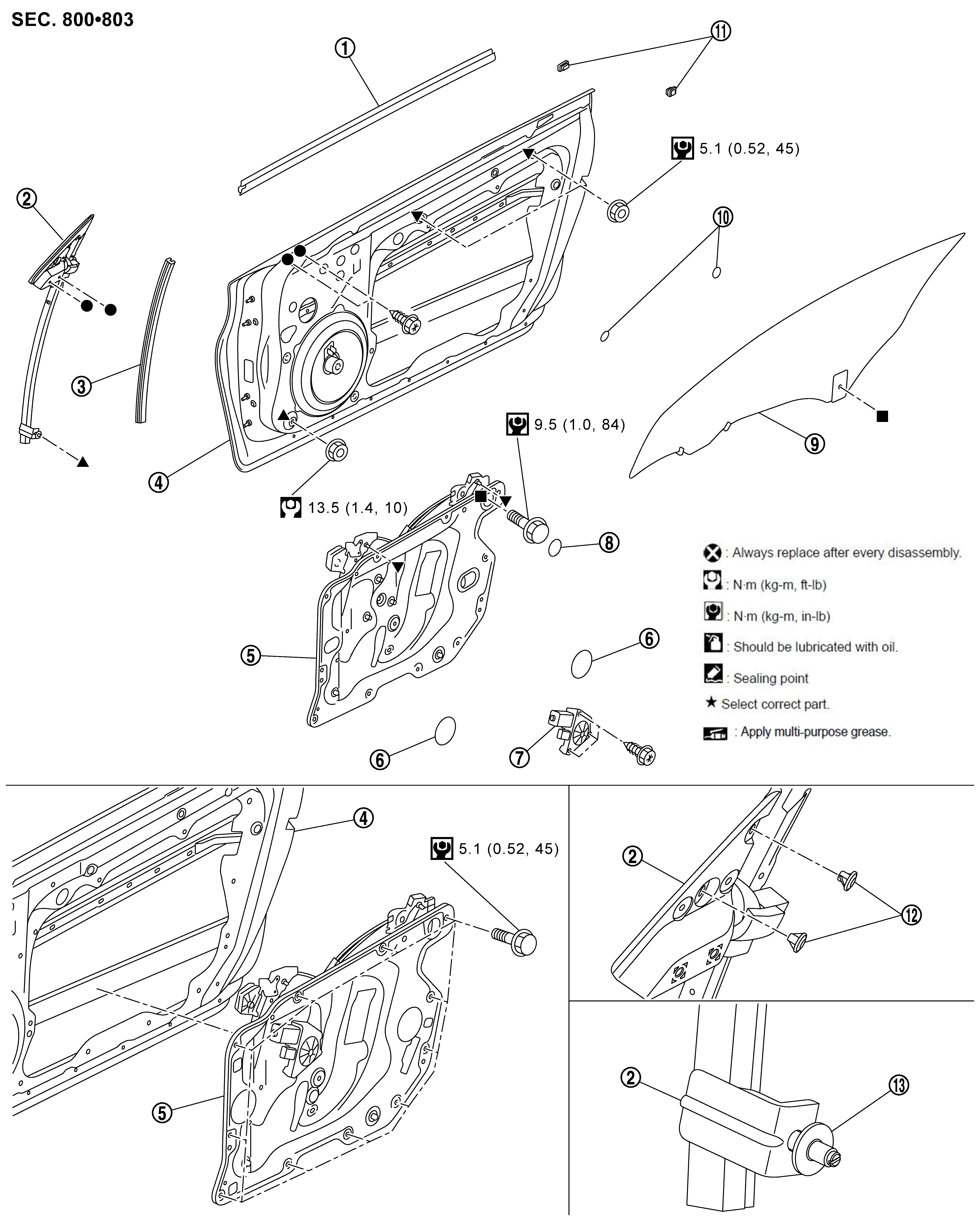

Exploded View With Torque Specifications
| Door inside seal | Corner piece assembly | Door weather - strip | |||
| Door panel | Door module assembly* | Hole cover A | |||
| Power window motor | Hole cover B | Door glass | |||
| Hole cover C | Door glass stabilizer | Clip (Seal packing) | |||
| Adjust bolt | |||||
| : N•m (kg - m, in - lb) | |||||
| N•m (kg - m, ft - lb) | |||||
* : Door regulator is included in door module assembly.
