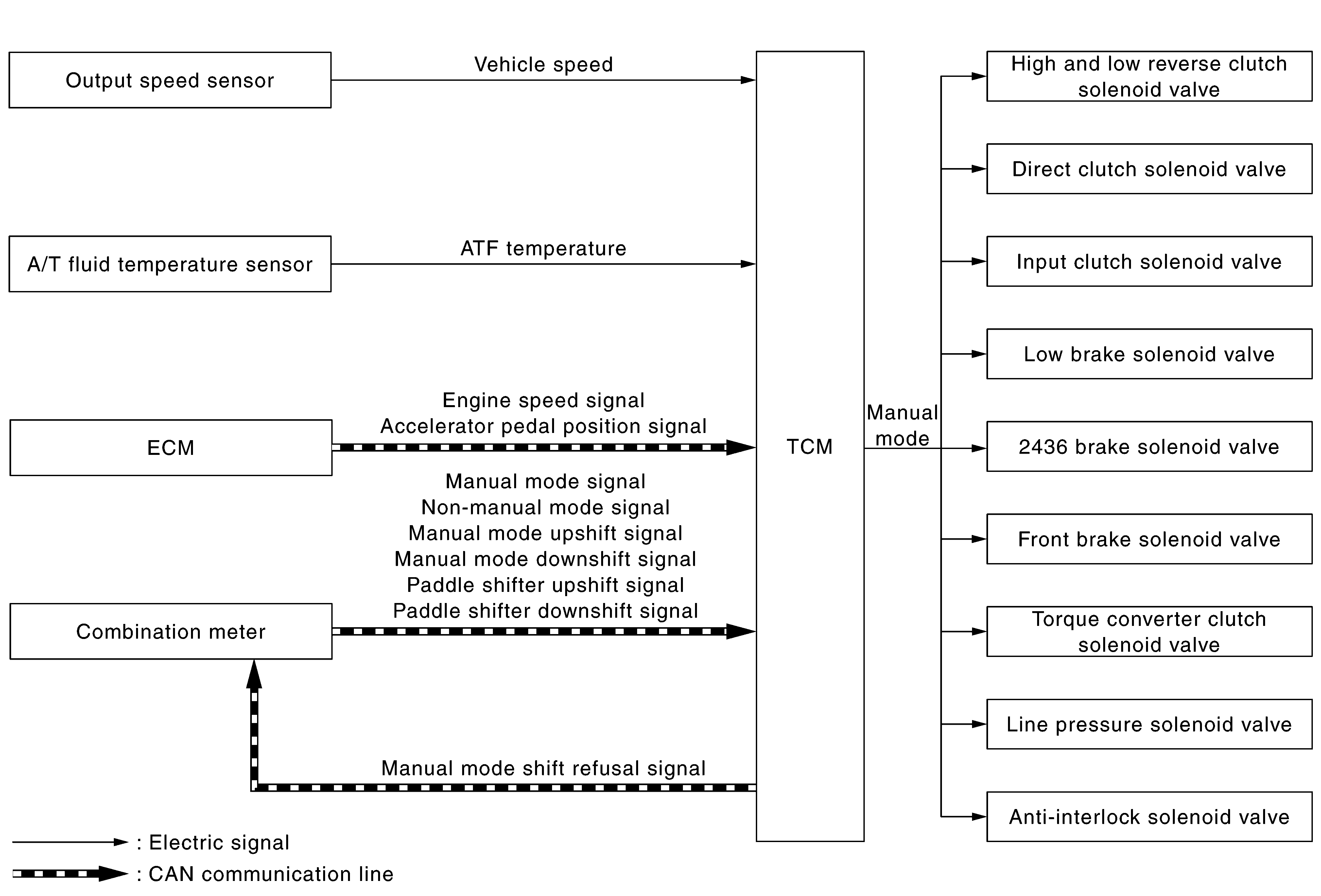

System Diagram

G09160345Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

Paddle shifter upshift signal and Paddle Shifter downshift signal are applied to vehicle with Paddle Shifter.
