Warning And Automatic Cancellation Display

Condition		Description	Display On System Display

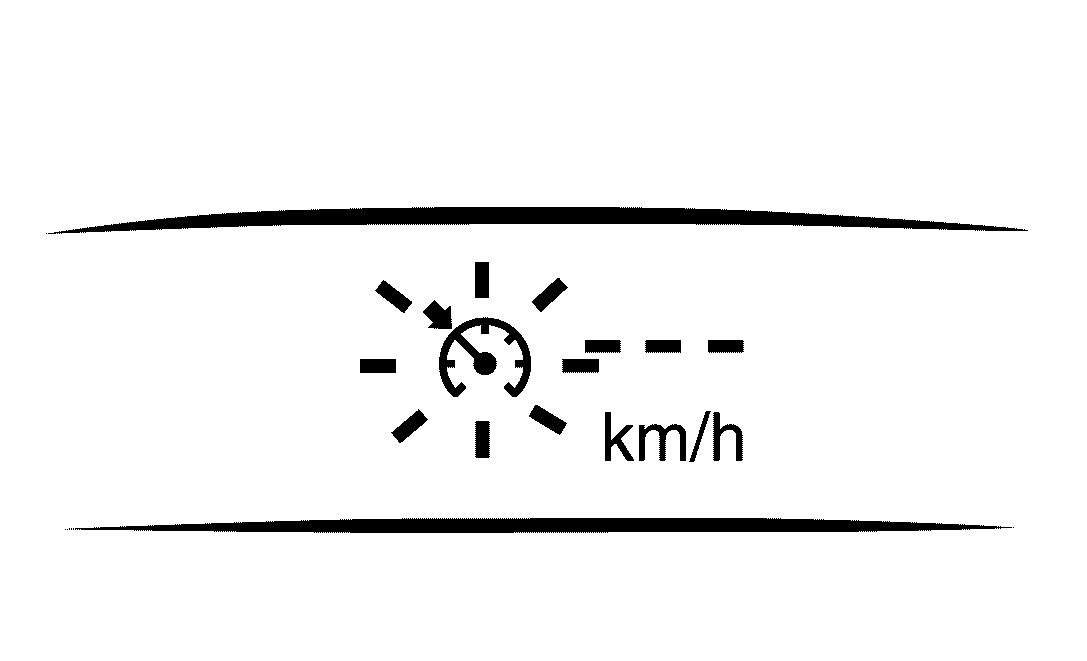

Warning Display	When the ASCD system is malfunctioning	A chime sounds and the control is automatically canceled NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system	Courtesy of NISSAN NORTH AMERICA, INC.
System Cancel Display	When brake pedal is depressed When pressing CANCEL Switch When the vehicle slows down more than 13 km/h (8 MPH) below the set speed When the selector lever is not in the "D" position or manual mode When the parking brakes are applied When VDC (including the TCS) operates When a wheel slips	A chime sounds and the control is automatically canceled NOTE: The system will be in a standby, after the control is automatically canceled A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL Switch is pressed	Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

When the ASCD system is automatically canceled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS).
