Work Procedure (Target Setting)

CAUTION:
  • Be sure to place the target correctly according to work procedures because the system may not operate normally.
  • Perform this operation in a horizontal position where there is a clear view for 5 m (16.4 ft) forward and 3 m (9.84 ft) wide.
  • Place the target in a well-lighted location. (Poor lighting may make it hard to adjust.)
  • The target may not be detected when there is a light source within 1.5 m (4.92 ft) from either side and within 1 m (3.28 ft) upward/downward from the target.
  • Check the location of the sun. (Sunlight should not shine directly on the front of the vehicle.)
  • The target may not be detected when there is the same pattern of black and white as the target when the pattern is within 1 m (3.28 ft) from either side and upward/downward position from the target. (It is desirable that the vehicle is positioned on the opposite side of a single-color wall.)

  1. TARGET SETTING

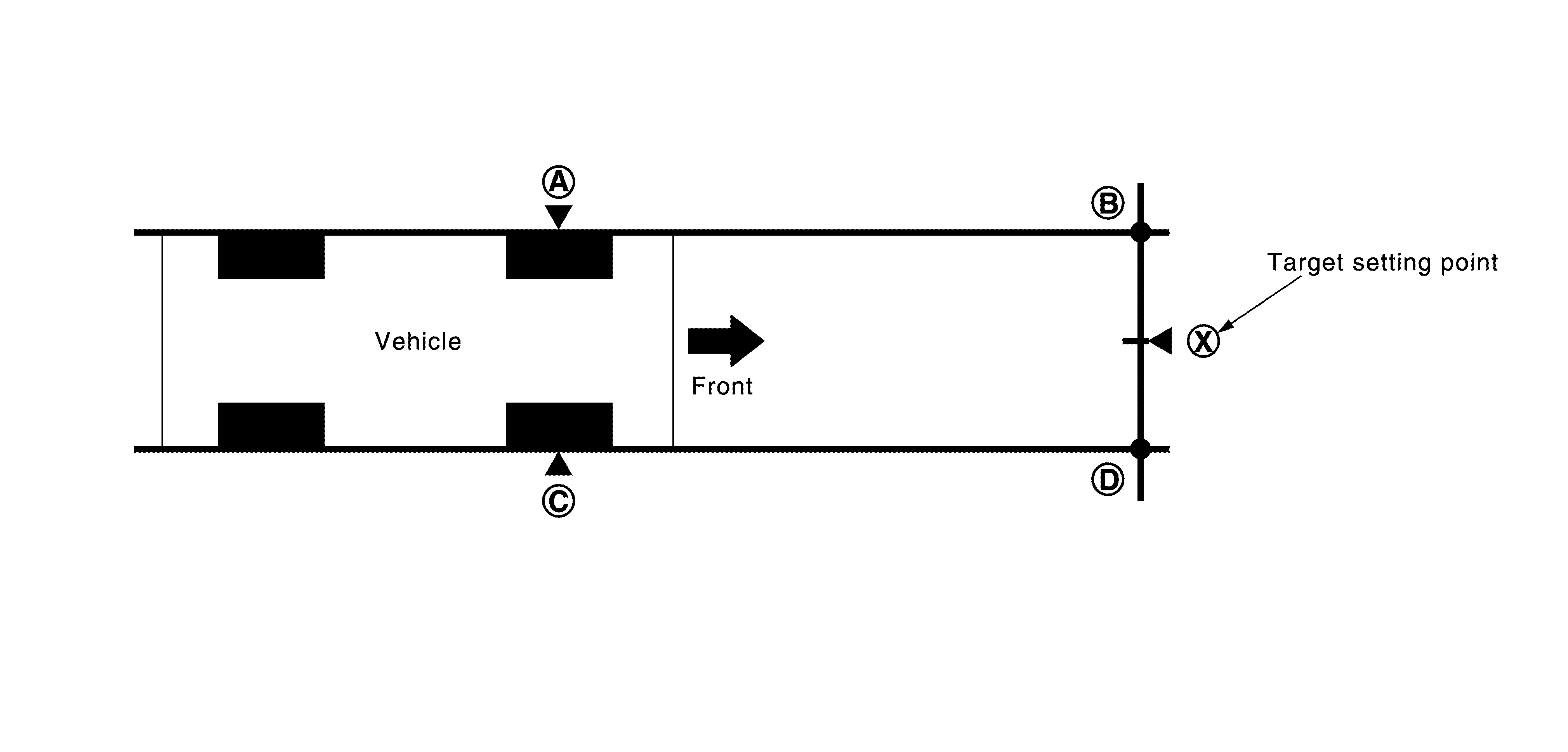

    G09170562Courtesy of NISSAN NORTH AMERICA, INC.
    MARU-A-W -MARU-B-W (MARU-C-W -MARU-D-W ) : 3850 mm (151.57 in)
    1. Lengthen straight a measuring tape as follows. And then fix it with tapes.
      • A measuring tape contacts with the side of the front left side tire from rear left side tire.
      • A measuring tape lengthens approximately 4 m (13.12 ft) or more from the front end of vehicle.
        NOTE:

        Use the steel tape measure which can measure 10 m (32.81 ft) or more

    2. Mark point MARU-A-W on a measuring tape. Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.
      G09161974Courtesy of NISSAN NORTH AMERICA, INC.
    3. Mark point MARU-B-W on a measuring tape at the positions 3850 mm (151.57 in) from point MARU-A-W .
    4. Remove a measuring tape.
      CAUTION:

      Be careful so that a marking point is not changed.

    5. Lengthen straight a measuring tape as follows. And then fix it with tapes.
      • A measuring tape contacts with the side of the front right side tire from rear right side tire.
      • A measuring tape lengthens approximately 4 m (13.12 ft) or more from the front end of vehicle.
        NOTE:

        Use the steel tape measure which can measure 10 m (32.81 ft) or more

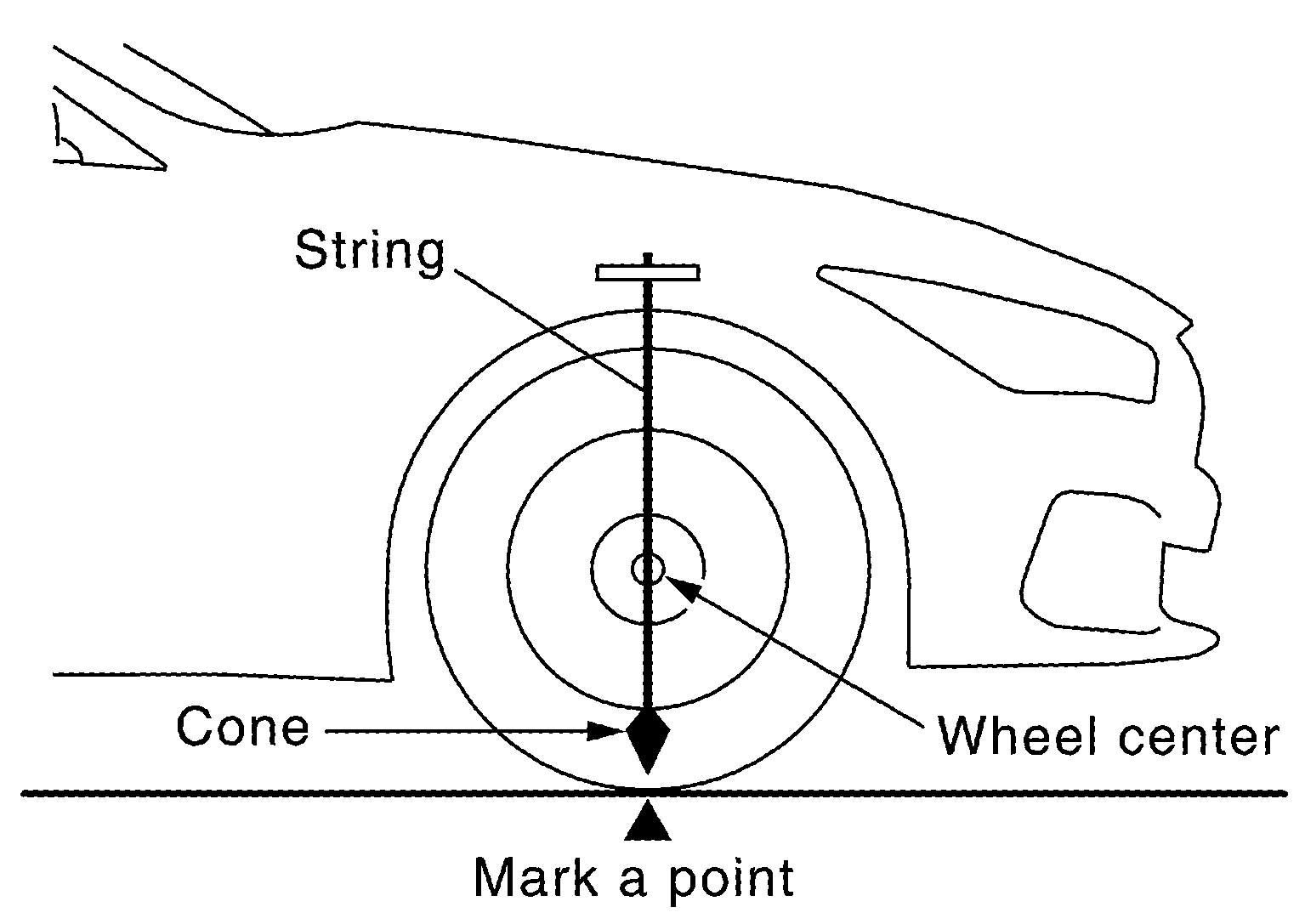

    6. Mark point MARU-C-W on a measuring tape. Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.
      G09161975Courtesy of NISSAN NORTH AMERICA, INC.
    7. Mark point MARU-D-W on a measuring tape at the positions 3850 mm (151.57 in) from point MARU-C-W .
    8. Remove a measuring tape.
      CAUTION:

      Be careful so that a marking point is not changed.

    9. Lengthen straight a measuring tape passing through the points MARU-B-W and MARU-D-W on the front side of vehicle. And then fix it with tapes.
    10. Mark point MARU-X-W at the center of point MARU-B-W and MARU-D-W on a measuring tape.
      CAUTION:

      Make sure that MARU-B-W to MARU-X-W is equal to MARU-D-W to MARU-X-W .

    11. Remove a measuring tape.
      CAUTION:

      Be careful so that a marking point is not changed.

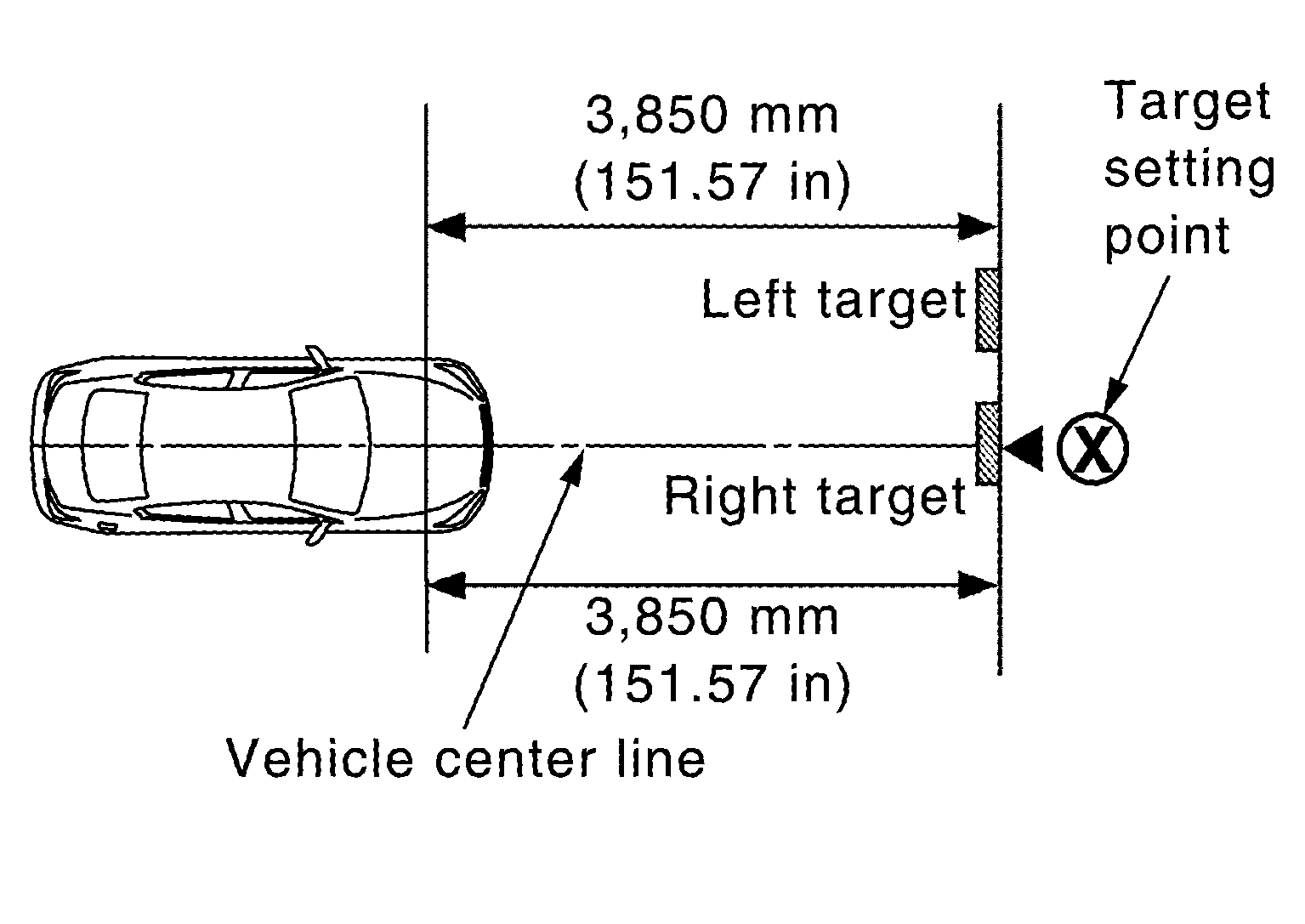

    12. Position the center of the right target to point of MARU-X-W .
      G09161976Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION:
      • Be sure to place the board that the cross of the target is horizontal and vertical.
      • Fix point MARU-X-W with a cone that hung down from the right side target.

    Proceed to WORK PROCEDURE (CAMERA AIMING ADJUSTMENT) .
