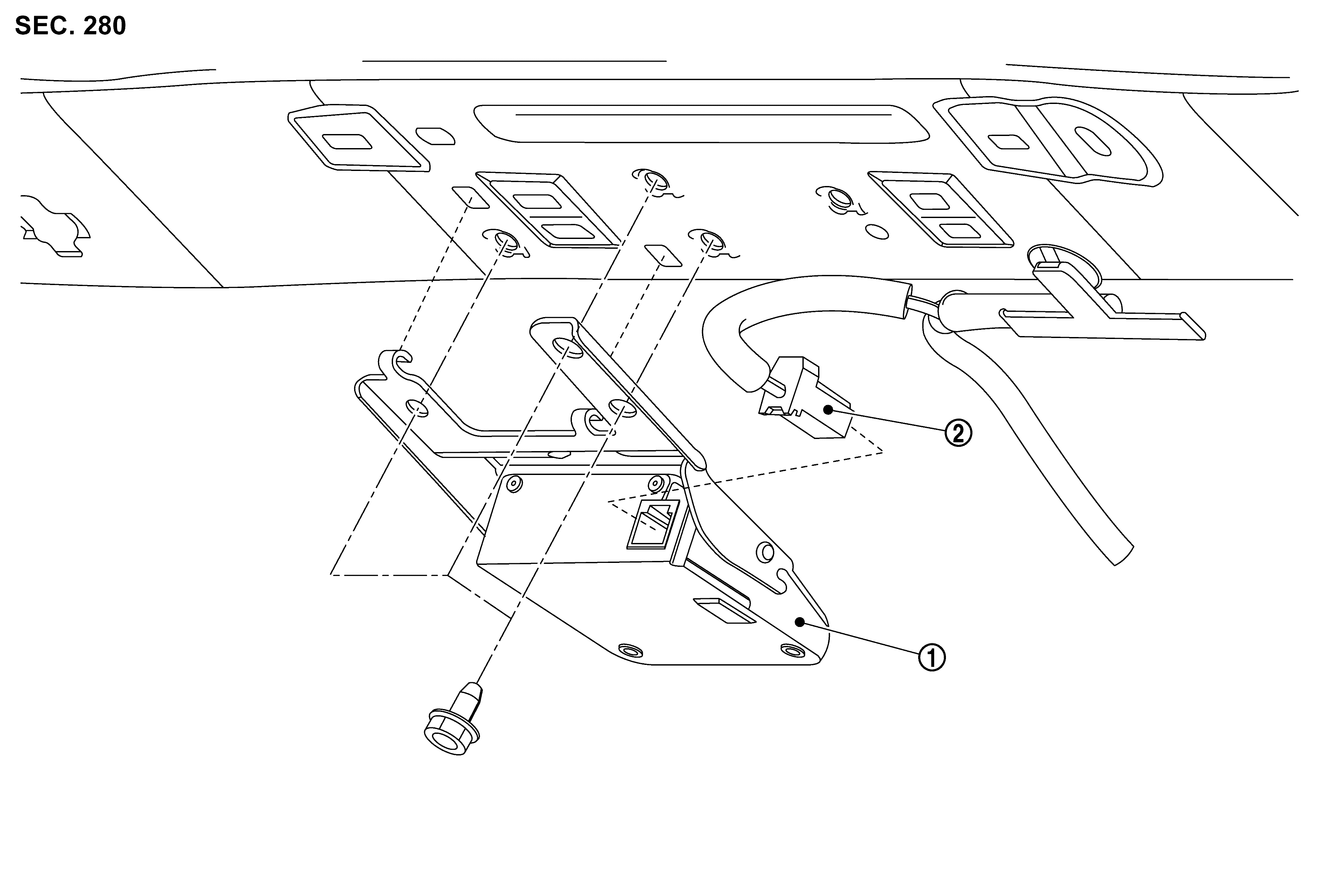

Exploded View With Torque Specifications

GNSJSOIA2515GB-515Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Lane Camera Unit 2 WHITE-2 Lane Camera Unit 2 harness connector
