Switch Name And Function

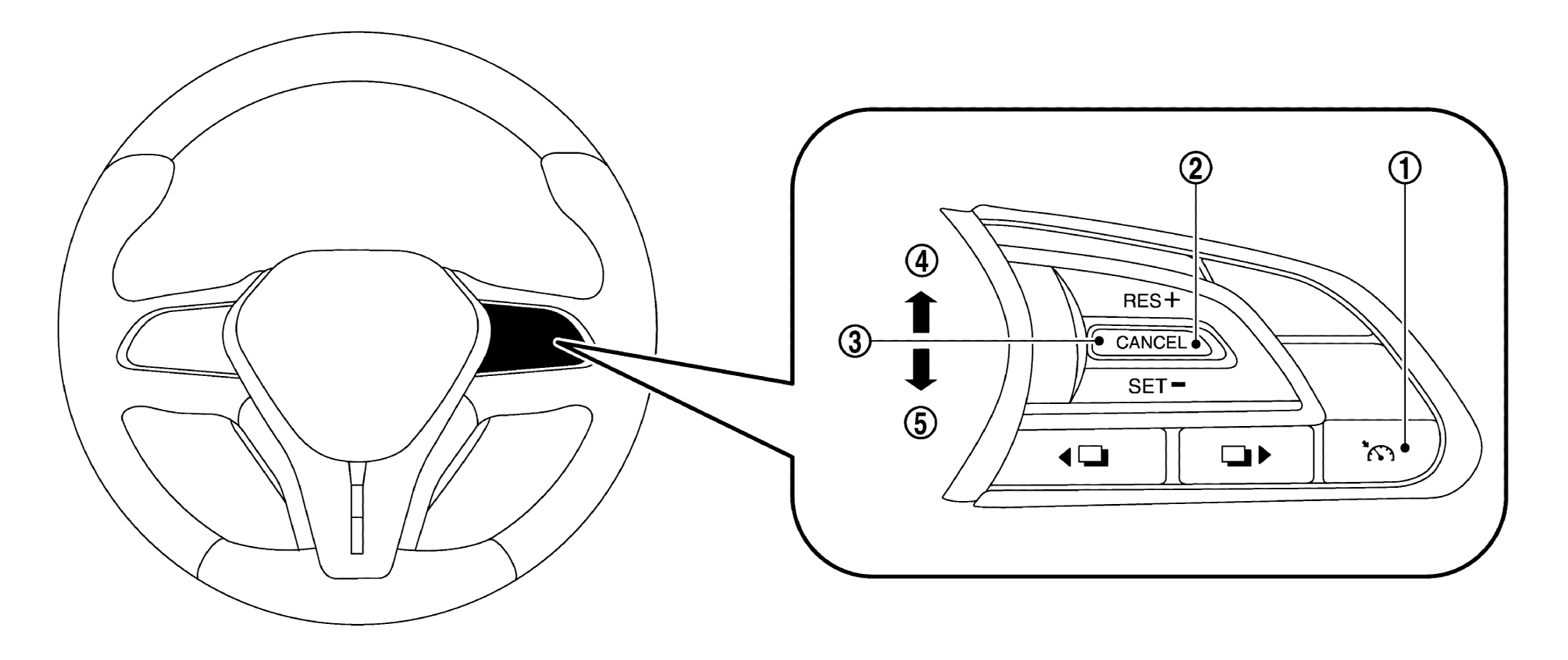

GNSJSOIA2539ZZ-539Courtesy of NISSAN NORTH AMERICA, INC.
No. Description Function
WHITE-1 ASCD MAIN Switch Master Switch to activate the system
WHITE-2 CANCEL Switch Deactivates system without erasing set speed
WHITE-3 RESUME/ACCELERATE Switch Resumes set speed or increases speed incrementally
WHITE-4 SET/COAST Switch Sets desired cruise speed or reduces speed incrementally
