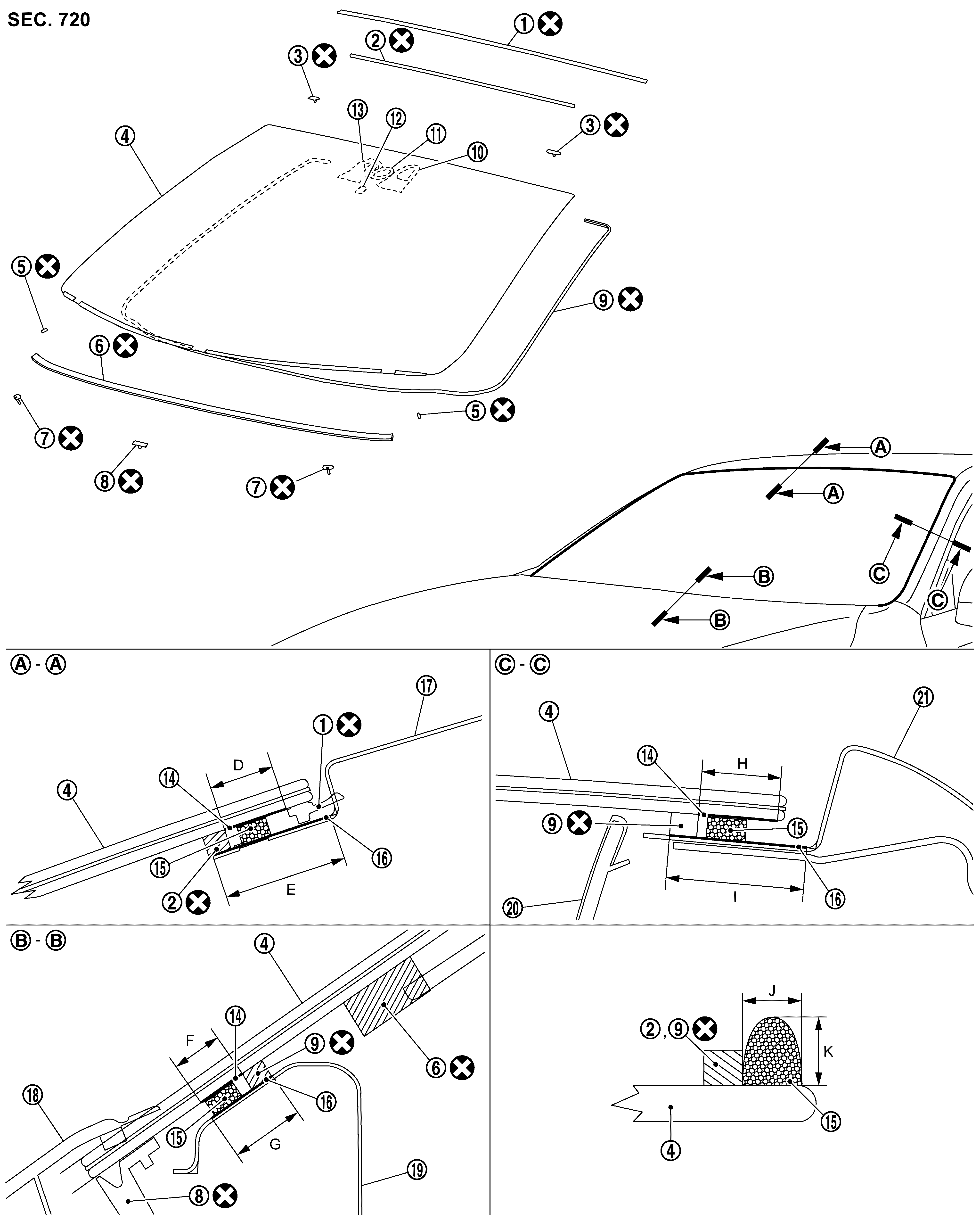

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Windshield glass molding		Dam sealant rubber upper		Windshield Glass Upper Spacer
	Windshield Glass		EPT Seal		Windshield Glass Insulator
	Windshield Glass Lower Side Spacer		Windshield glass lower center spacer		Dam sealant rubber lower
	Lane camera unit 2 finisher*1*2		Rain sensor bracket*1*3		Inside mirror base*1
	Lane camera unit bracket*1*4		Glass primer		Adhesive
	Painted surface primer		Roof panel		Cowl top cover
	Dash upper cross member		Front pillar garnish		Body side outer panel
	: Always replace after every disassembly.

^*1 : These parts are windshield glass assembly parts.

^*2 : With Lane Camera Unit 2

^*3 : With Rain Sensor

^*4 : With Lane Camera Unit

Unit: mm (in)

Portion			Primer Range	Adhesive Range
				J	K
Windshield glass - Roof panel	-	D	12.0 (0.472)	7.0 (0.276)	12.0 (0.472)
		E	20.0 (0.787)	-	-
Windshield glass - Dash upper cross member	-	F	16.0 (0.630)	7.0 (0.276)	12.0 (0.472)
		G	30.0 (1.181)	-	-
Windshield glass - Body side outer panel	-	H	16.0 (0.630)	7.0 (0.276)	12.0 (0.472)
		I	30.0 (1.181)	-	-
