Physical Values

Terminal No. (Wire Color)		Description		Condition	Voltage (V)
+	-	Signal Name	Input/Output	Condition	Voltage (V)
3 (Y)	Ground	Encoder ground	Input	-	0 - 1
4 (V)	Ground	Encoder power supply	Output	When ignition switch ON or power window timer operates	9 - 16
8 (L)	Ground	Power Window Motor (Passenger Side) UP signal	Output	When Power Window Motor (Passenger Side) is operated UP	9 - 16
9 (G)	Ground	Power Window Motor (Passenger Side) DOWN signal	Output	When Power Window Motor (Passenger Side) is operated DOWN	9 - 16
10 (Y)	Ground	Battery power supply	Input	-	9 - 16
11 (B)	Ground	Ground	-	-	0 - 1

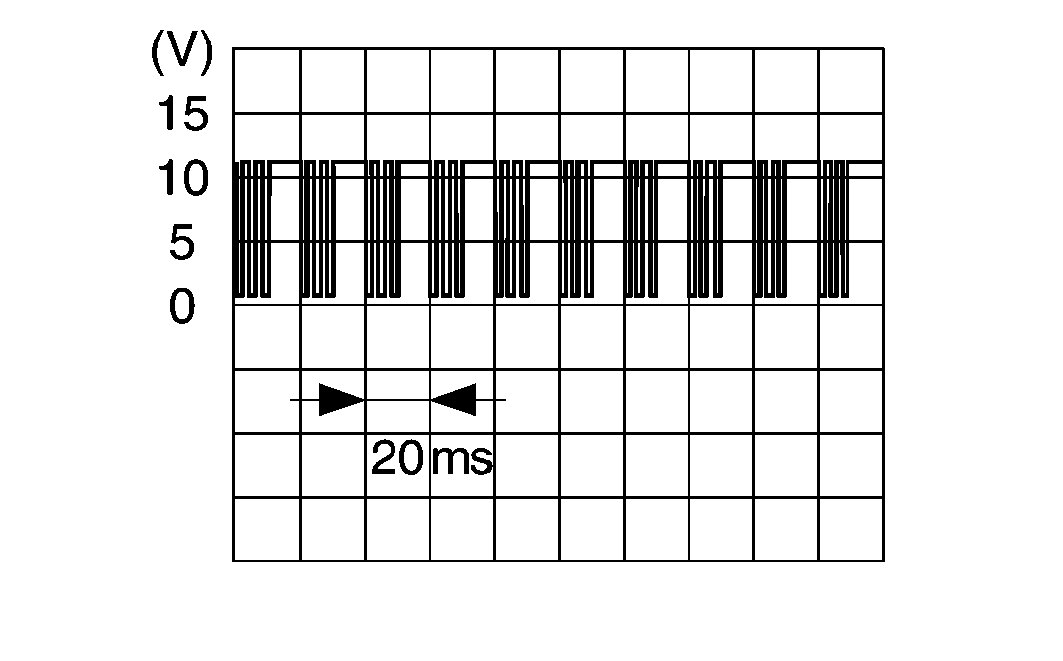

12 (GR)	Ground	Encoder pulse signal 1	Input	When Power Window Motor operates	Courtesy of NISSAN NORTH AMERICA, INC.
15 (BR)	Ground	Encoder pulse signal 2	Input	When Power Window Motor operates	Courtesy of NISSAN NORTH AMERICA, INC.
16 (GR)	Ground	Power window serial link	Input/Output	When ignition switch ON or power window timer operates	Courtesy of NISSAN NORTH AMERICA, INC.
