Removal And Installation: Removal

  1. Remove door finisher. Refer to REMOVAL AND INSTALLATION .

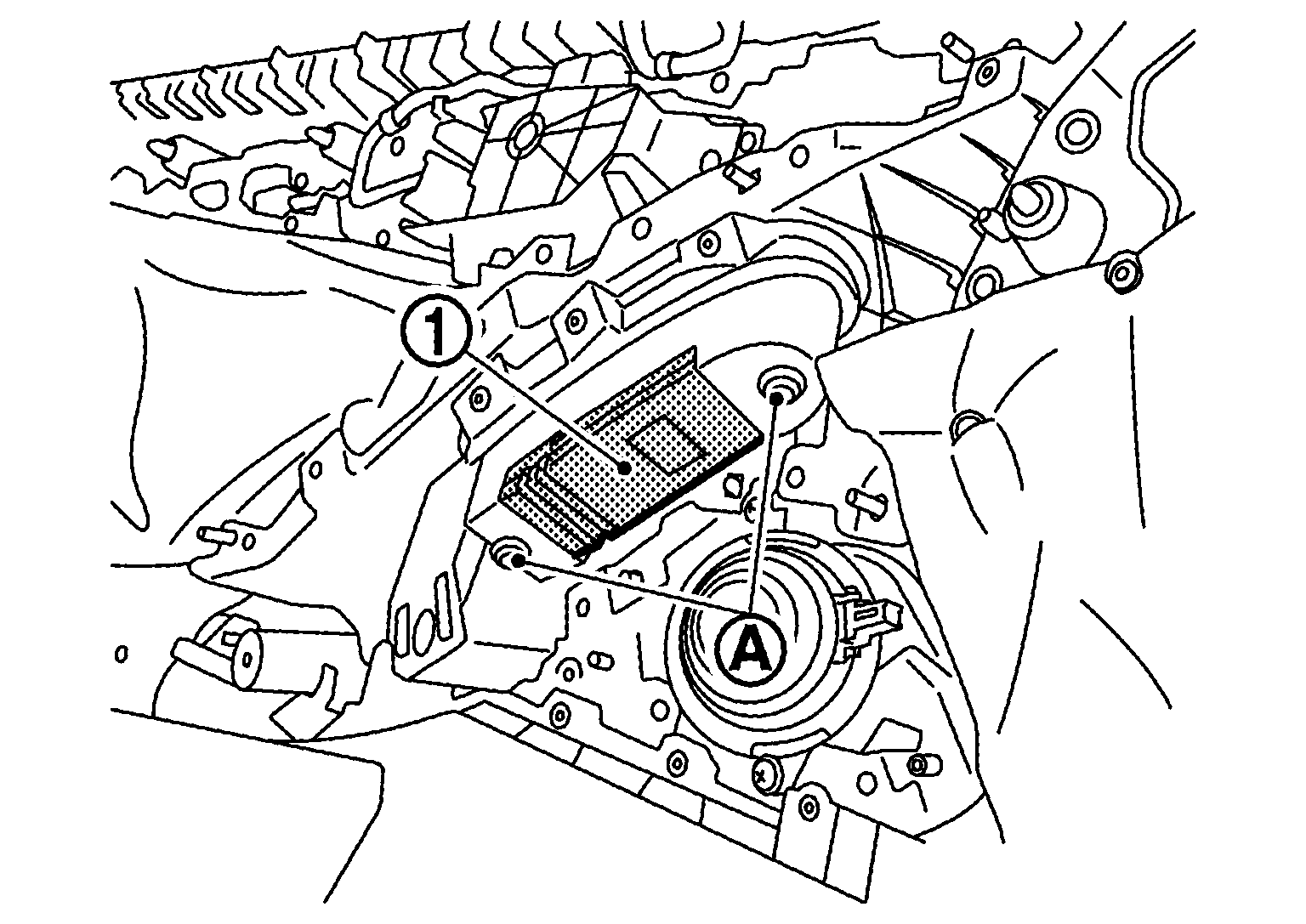

  2. Remove Power Window Sub-Switch mounting screws MARU-A-W , and then remove Power Window Sub-Switch WHITE-1 .
    GNSJMKIB6714ZZ-714Courtesy of NISSAN NORTH AMERICA, INC.
