Exploded View

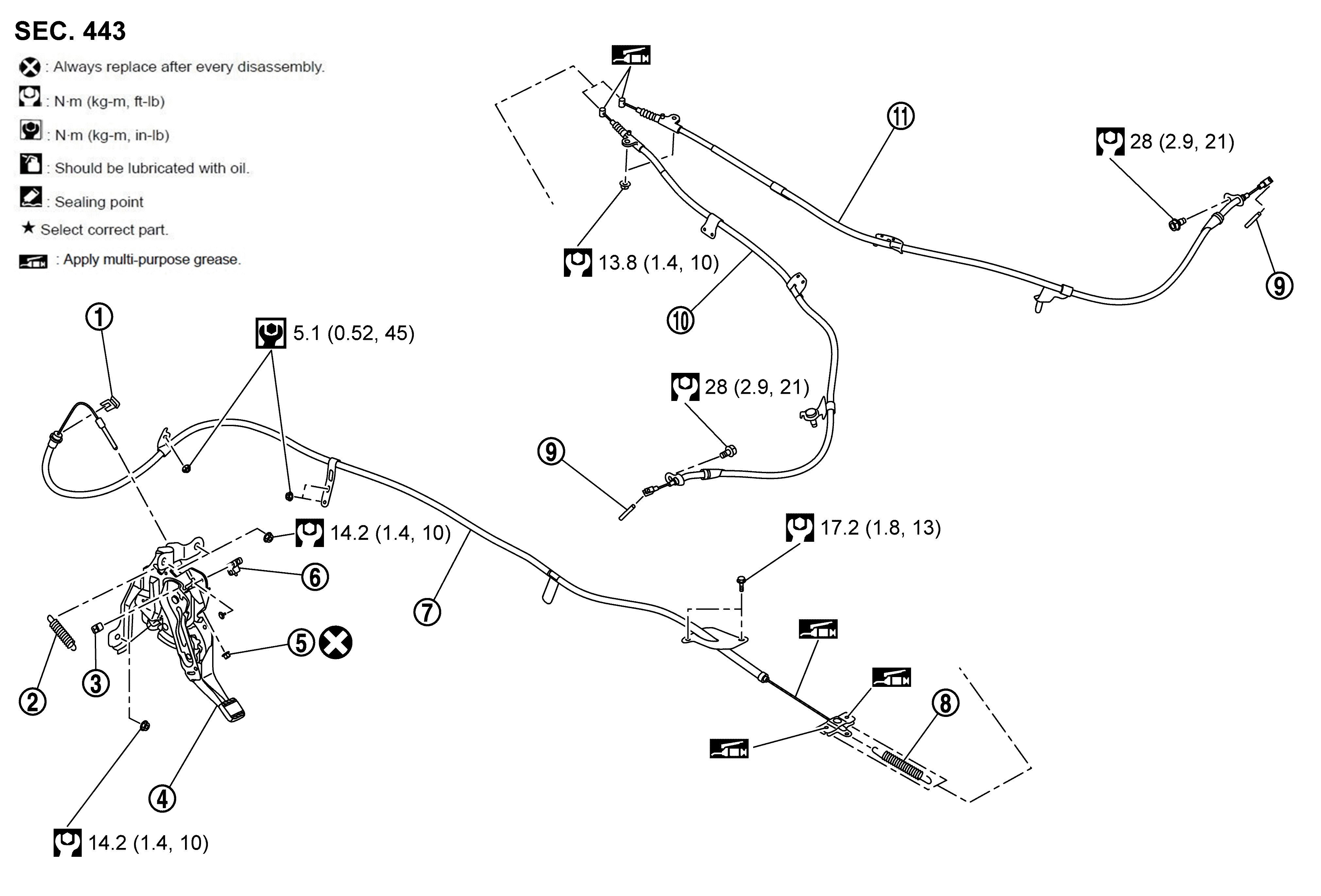

Fig 1: Parking Brake Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Lock Plate	Return Spring	Stopper Rubber
	Parking Brake Pedal Assembly	Adjusting Nut	Parking Brake Switch
	Front Cable	Spring	Pin
	Rear Cable (Left Side)	Rear Cable (Right Side)
: Apply multi-purpose grease.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
: Always replace after every disassembly.
