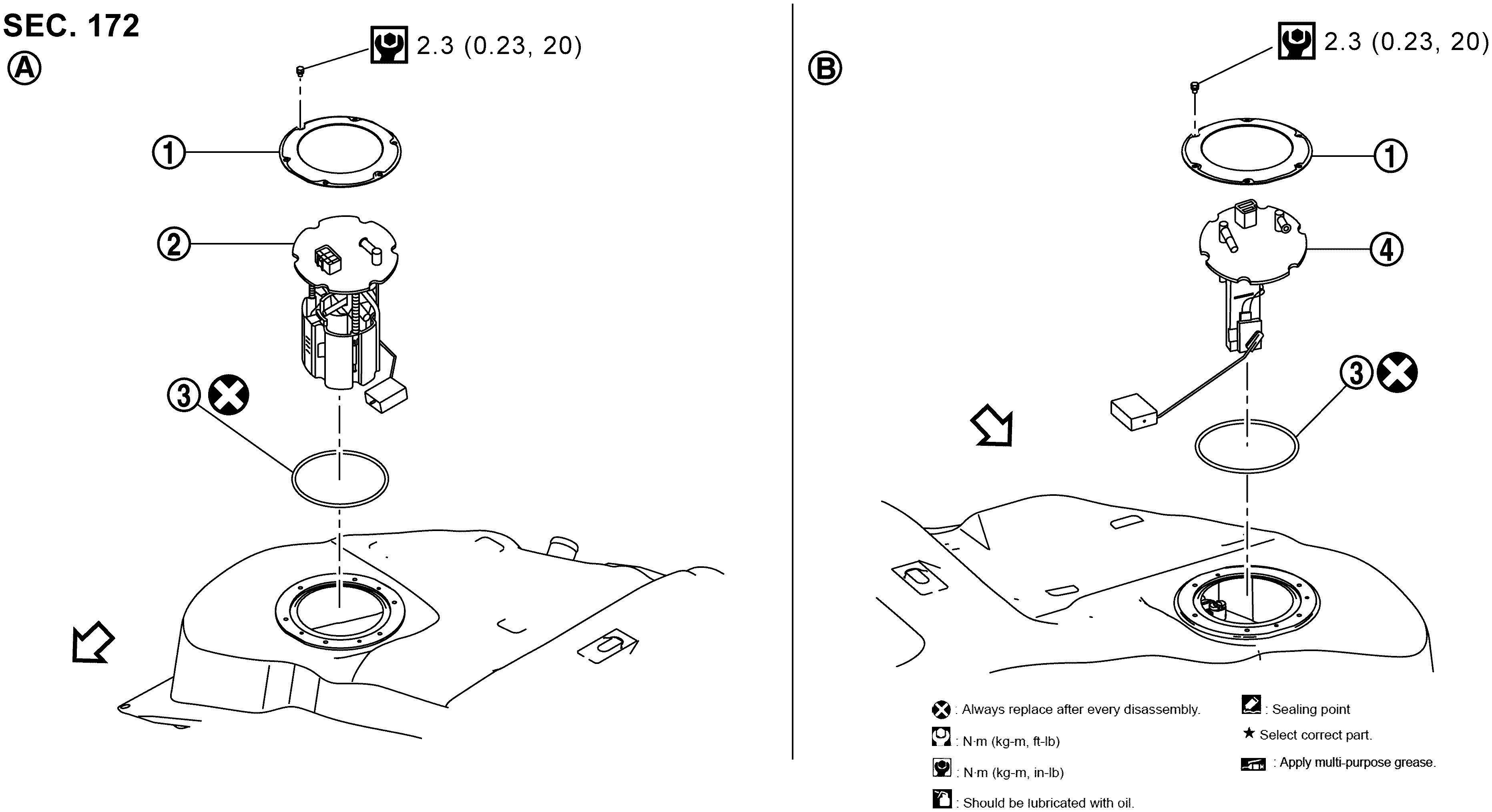

Exploded View: Removal

GNSJSBIA9491GB-491Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Retainer WHITE-2 Main Fuel Level Sensor Unit, Fuel Filter And Fuel Pump Assembly WHITE-3 O-Ring
WHITE-4 Sub Fuel Level Sensor Unit
MARU-A-W Right Side MARU-B-W Left Side
ARROW : Vehicle Front
BOLTIN : N•m (kg-m, in-lb)
DISAS : Always replace after every disassembly.
