Stop Lamp Switch & Brake Pedal Position Switch

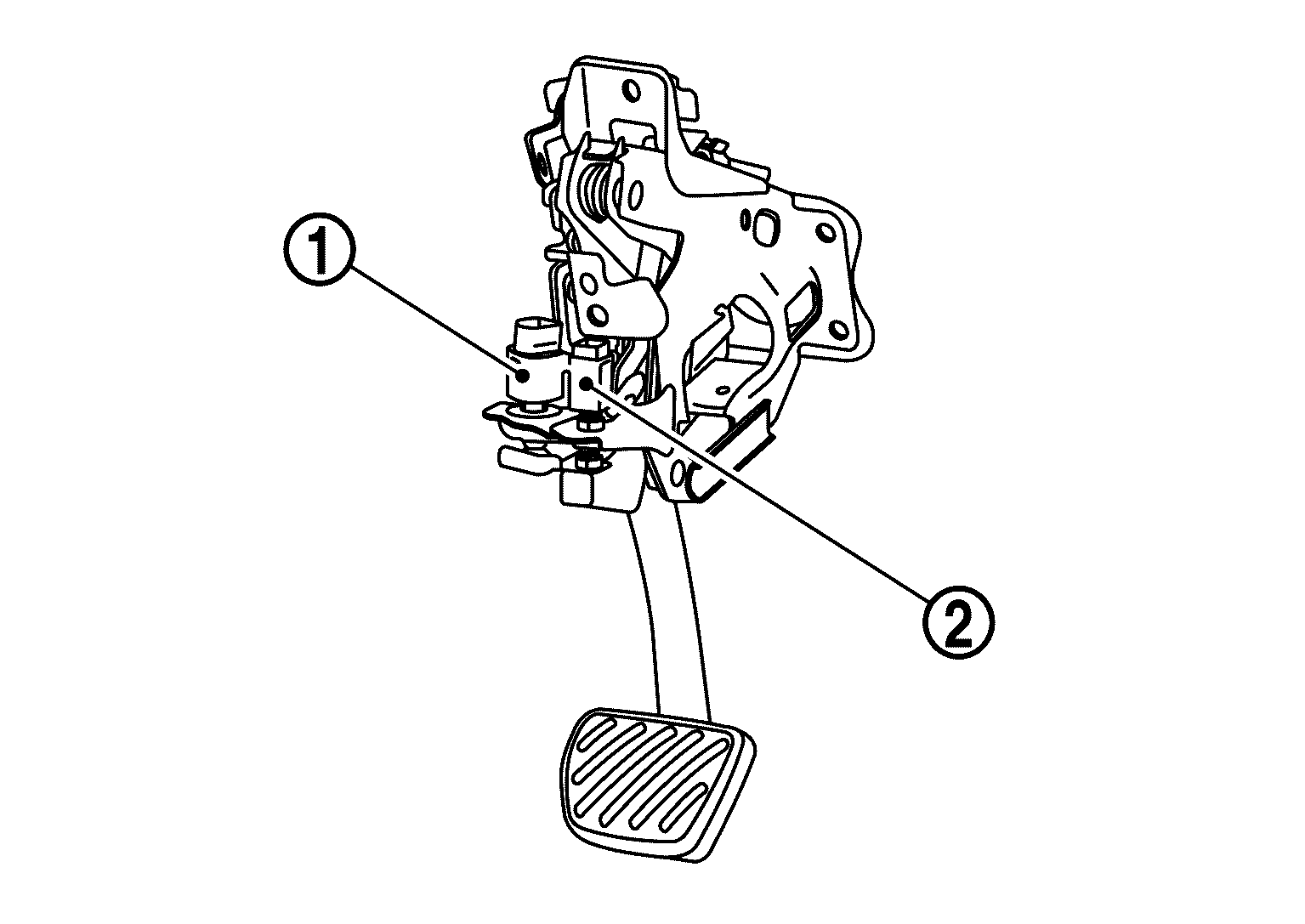

Stop Lamp Switch
and Brake Pedal Position Switch
are installed to brake pedal bracket.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
EMCM detects the state of the brake pedal according to those two types of input (ON/OFF signal).
| Brake Pedal |
Brake Pedal Position Switch |
Stop Lamp Switch |
| Released |
ON |
OFF |
| Depressed |
OFF |
ON |
