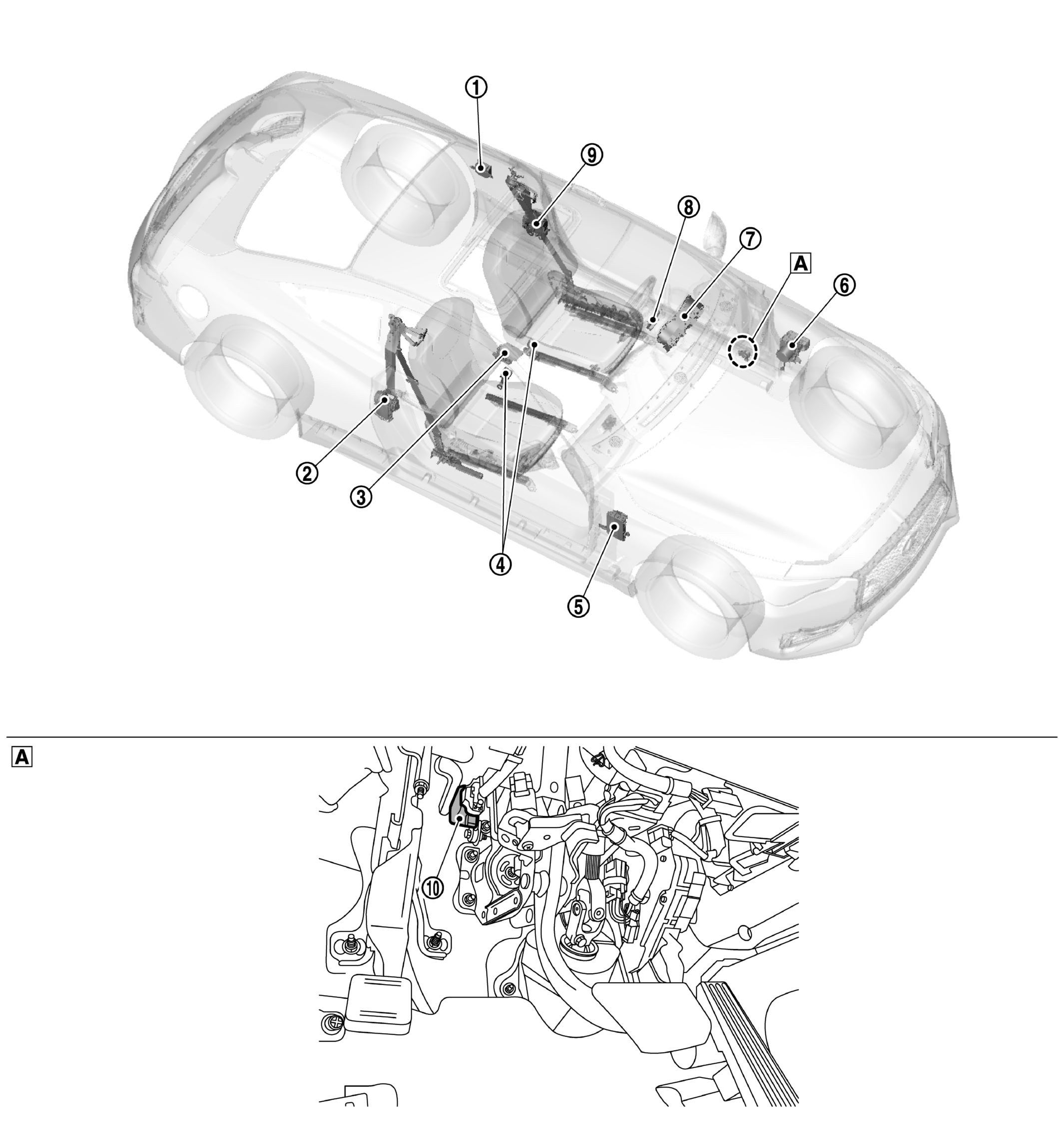

Component Location
| View With Instrument Lower Panel LH Removed |
| No. | Component | Function |
|---|---|---|
| ADAS Control Unit | Forward Emergency Braking operation signal is received from ADAS control unit via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. | |
| Pre-Crash Seat Belt Control Unit (Passenger Side) | Refer to PRE-CRASH SEAT BELT CONTROL UNIT . | |
| Air Bag Diagnosis Sensor Unit |
|
|
| Seat Belt Buckle Switch | Refer to SEAT BELT BUCKLE SWITCH . | |
| BCM | Ignition switch ON signal, sleep/wakeup signal, and door switch signal are received from BCM via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. | |
| ABS Actuator And Electric Unit (Control Unit) | ABS operation signal is received from ABS Actuator And Electric Unit (Control Unit) via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Combination Meter | Transmits vehicle speed signal to Pre-Crash Seat Belt Control Unit (driver side). | |
| Steering Angle Sensor | Steering angle sensor signal, steering angle speed signal, steering angle sensor neutral position adjustment completion signal, and steering angle sensor malfunction signal are received via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Pre-Crash Seat Belt Control Unit (Driver Side) | Refer to PRE-CRASH SEAT BELT CONTROL UNIT . | |
| Brake Pedal Stroke Sensor | Refer to BRAKE PEDAL STROKE SENSOR . |
