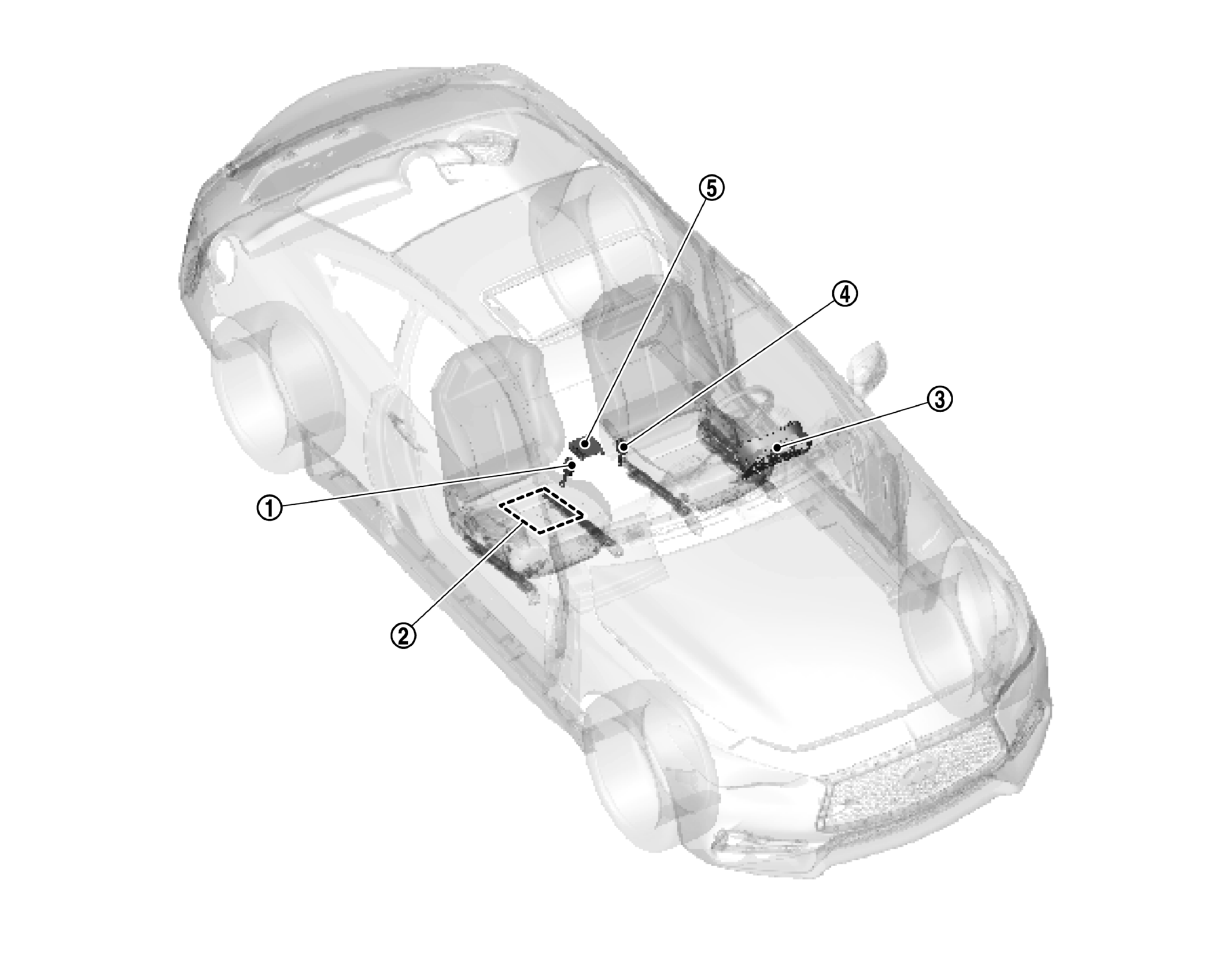

Component Location
| No. | Component | Function |
|---|---|---|
| Seat Belt Buckle Switch (Passenger side) | Refer to SEAT BELT BUCKLE SWITCH . | |
| Occupant Detection System Control Unit And Sensor | Judges the passenger seat condition based on the information from occupant detection system control unit. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Combination Meter | Turns the seat belt warning lamp ON when the seat belt is unfastened. | |
| Seat Belt Buckle Switch (Driver Side) | Refer to SEAT BELT BUCKLE SWITCH . | |
| Air Bag Diagnosis Sensor Unit | Turns ON seat belt warning lamp based on the information from occupant detection system control unit. Refer to COMPONENT LOCATION for detailed installation location. |
