Steering Wheel Turning Force

  1. Park vehicle on a level and dry surface, set parking brake.
  2. Tires need to be inflated normal pressure. Refer to TIRE AIR PRESSURE .
  3. Start engine.
  4. Check steering wheel turning force when steering wheel has been turned 360° from neutral position.

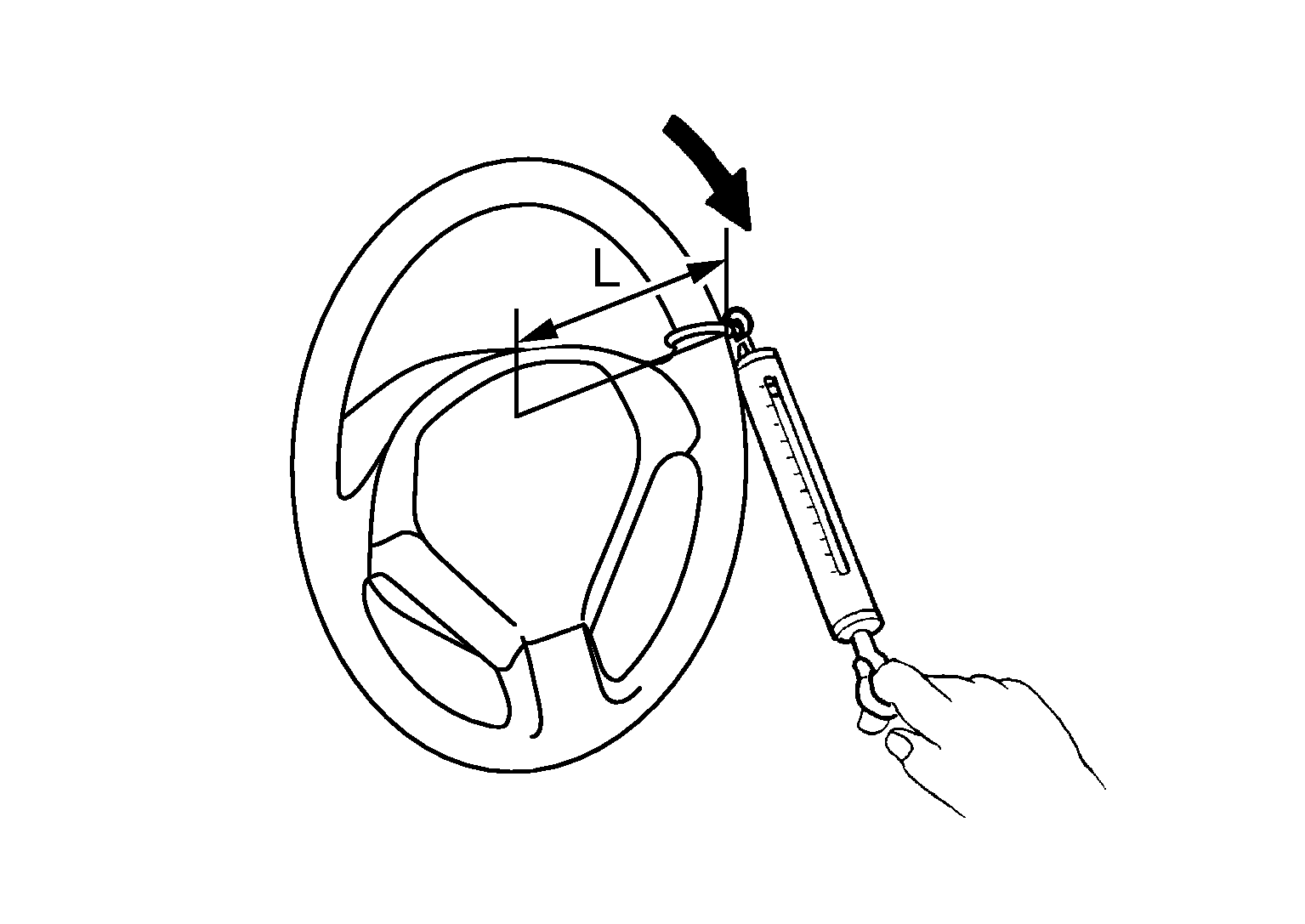

    G05224384Courtesy of NISSAN NORTH AMERICA, INC.
    Steering wheel turning force : Refer to STEERING WHEEL .
    L : 185 mm (7.28 in)
