Exploded View: Removal

2WD models

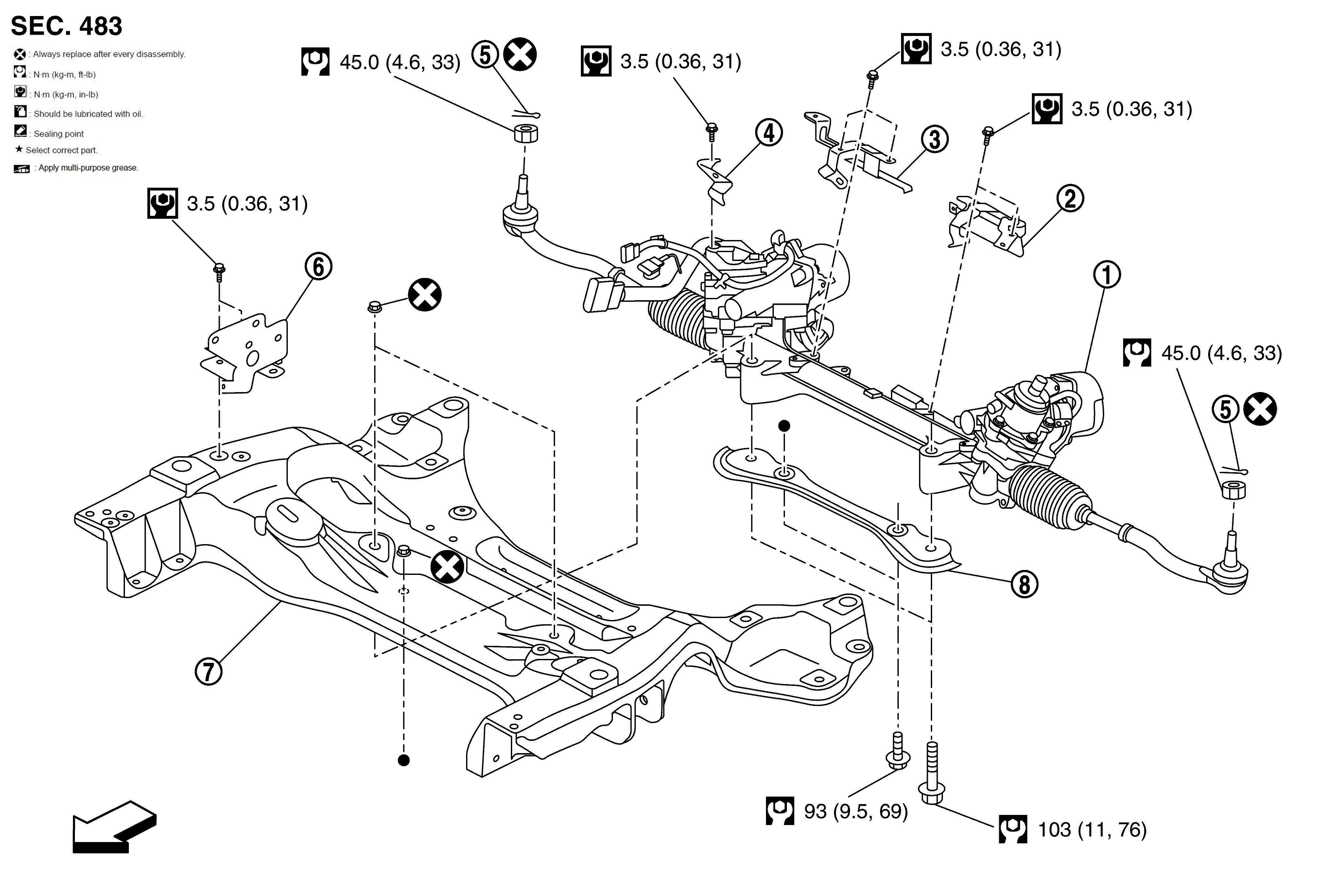

Fig 1: Steering Gear And Linkage 2WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering gear assembly	Bracket	Bracket
	Bracket	Cotter pin	Bracket
	Front suspension member	Rack stay
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
:	Indicates that the part is connected at points with same symbol in actual vehicle

AWD models

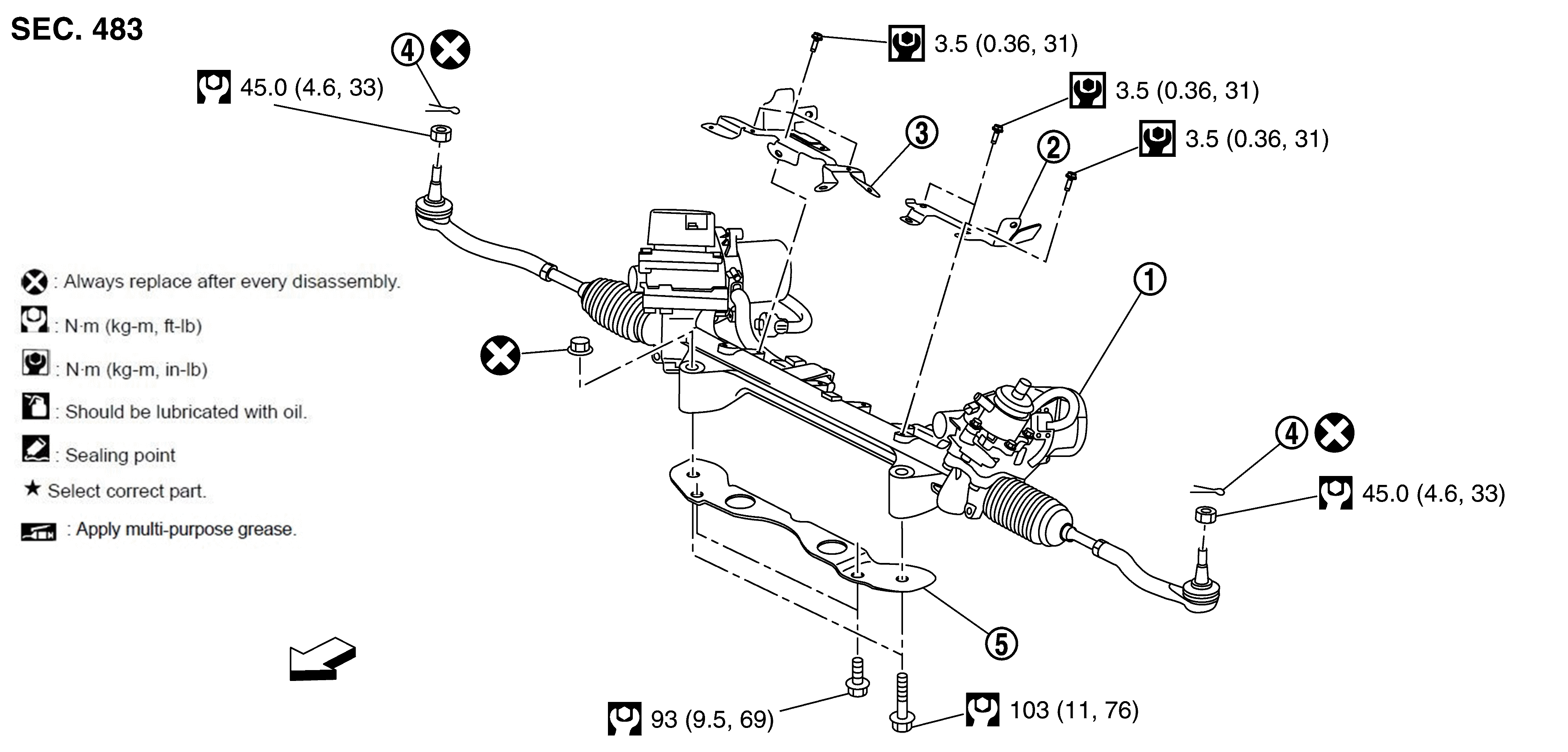

Fig 2: Steering Gear And Linkage AWD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering gear assembly	Bracket	Bracket
	Cotter pin	Rack stay
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
