Harness Layout

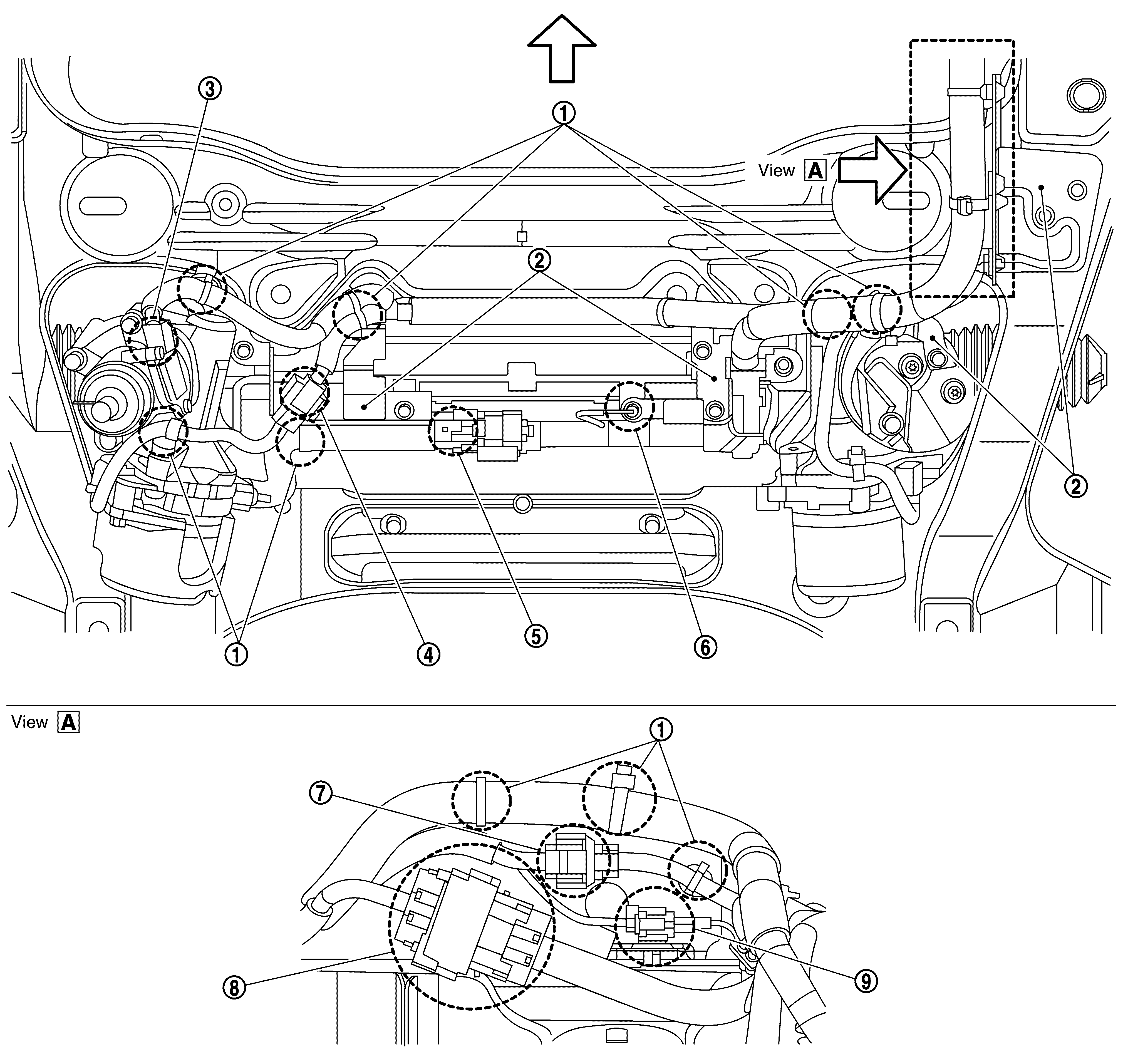

2WD models

GNSJSGIA1357GB-357

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip		Harness bracket		Steering torque sensor harness connector
	Main motor angle sensor harness connector		Steering angle main motor harness connector		Steering angle main motor ground terminal
	Sub motor angle sensor harness connector		Steering angle sub motor harness connector		Steering angle sub motor harness ground connector
: Vehicle front

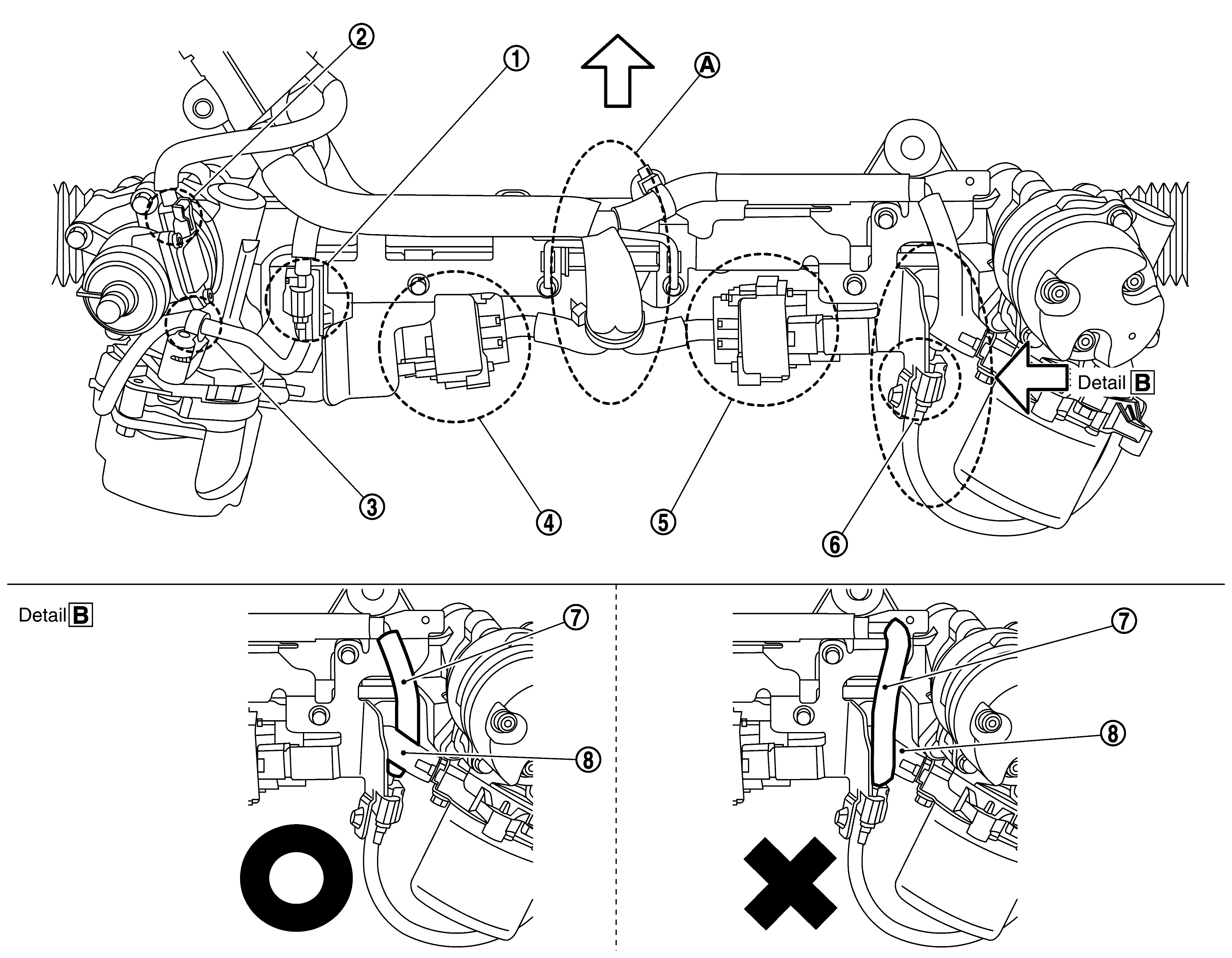

AWD models

GNSJSGIA1359GB-359

Courtesy of NISSAN NORTH AMERICA, INC.

	Main motor angle sensor harness connector		Steering torque sensor harness connector		Clip
	Steering angle main motor harness connector		Steering angle sub motor harness connector		Sub motor angle sensor harness connector
	Sub motor angle sensor harness		Steering angle sub motor harness
: Vehicle front

CAUTION:

Check that there is the enough clearance in part between steering angle motor harness and oil pan.
When installing the sub motor angle sensor harness , place the sub motor angle sensor harness under the steering angle sub motor harness .
After installation, check that there is the enough clearance between the front propeller shaft flange part and sub motor angle sensor harness.
