Exploded View

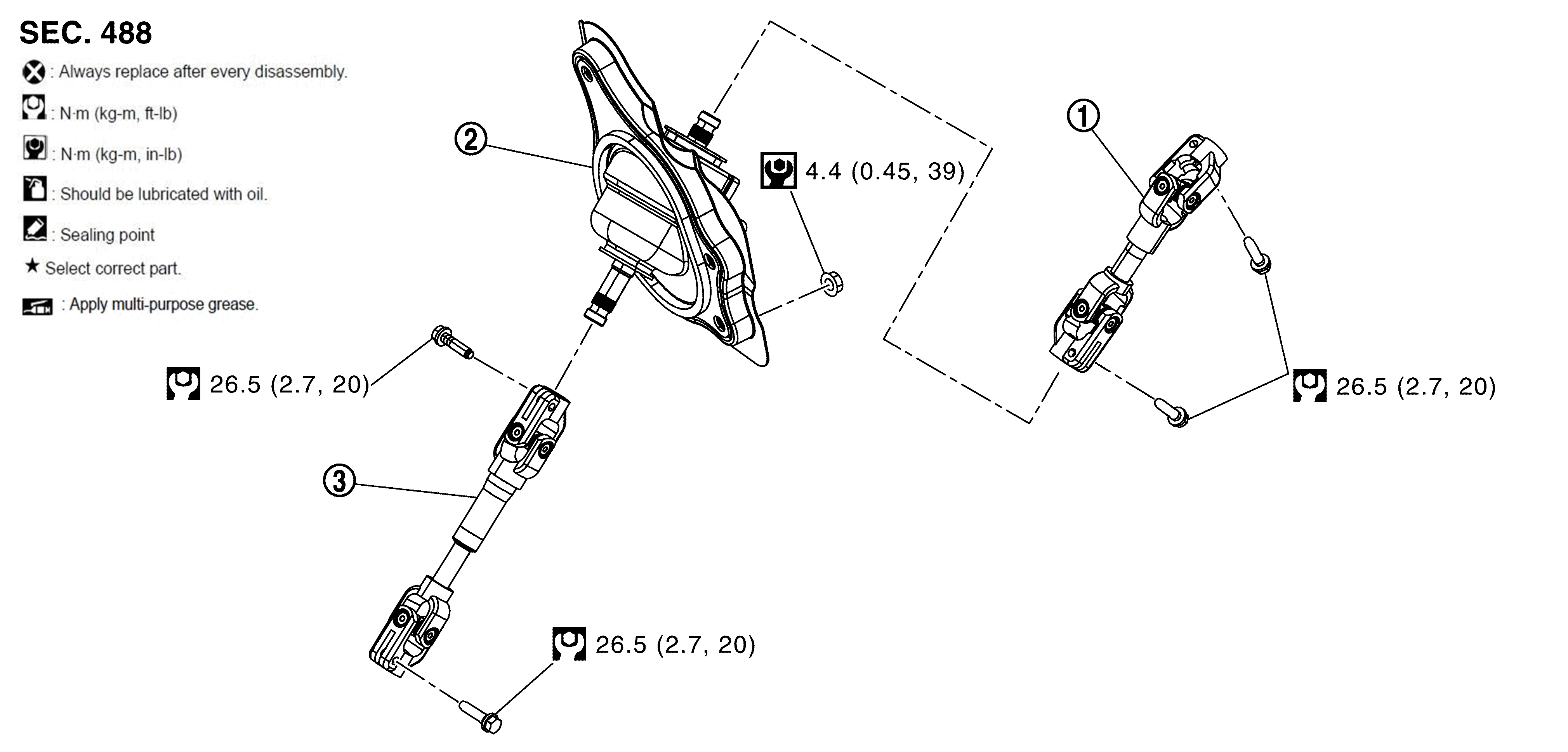

Fig 1: Steering Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering upper shaft	Steering clutch assembly	Steering lower shaft assembly
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)

CAUTION:

Never disassemble other than the parts shown in Exploded View.
